E1SDA18-24.576M/E1S系列SMD晶振/24.576MHz/Ecliptek车载晶振

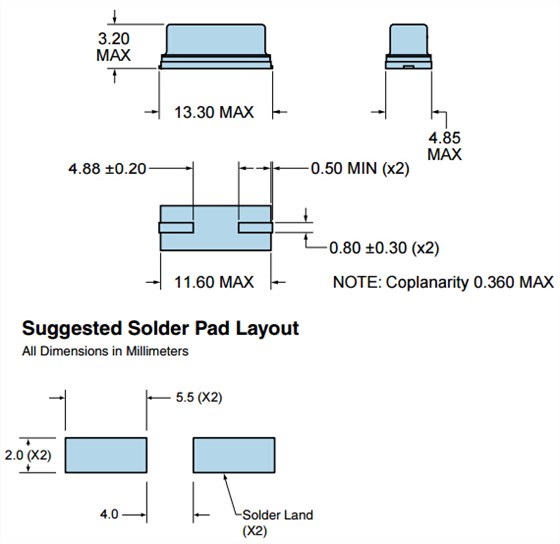

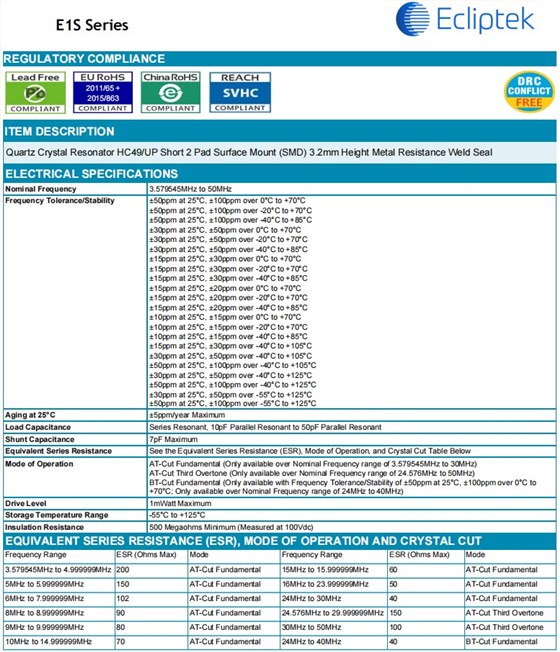

| Nominal Frequency | 24.576 MHz | |||||||
| Frequency Tolerance/Stability |
±50ppm at 25°C, ±100ppm over 0°C to +70°C ±50ppm at 25°C, ±100ppm over -20°C to +70°C ±50ppm at 25°C, ±100ppm over -40°C to +85°C ±30ppm at 25°C, ±50ppm over 0°C to +70°C ±30ppm at 25°C, ±50ppm over -20°C to +70°C ±30ppm at 25°C, ±50ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over 0°C to +70°C ±15ppm at 25°C, ±30ppm over -20°C to +70°C ±15ppm at 25°C, ±30ppm over -40°C to +85°C ±15ppm at 25°C, ±20ppm over 0°C to +70°C ±15ppm at 25°C, ±20ppm over -20°C to +70°C ±15ppm at 25°C, ±20ppm over -40°C to +85°C ±10ppm at 25°C, ±15ppm over 0°C to +70°C ±10ppm at 25°C, ±15ppm over -20°C to +70°C ±10ppm at 25°C, ±15ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +105°C ±50ppm at 25°C, ±100ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +125°C ±50ppm at 25°C, ±100ppm over -40°C to +125°C ±30ppm at 25°C, ±50ppm over -55°C to +125°C ±50ppm at 25°C, ±100ppm over -55°C to +125°C |
|||||||
| Aging at 25°C | ±5ppm/year Maximum | |||||||
| Load Capacitance | Series Resonant, 10pF Parallel Resonant to 50pF Parallel Resonant | |||||||
| Shunt Capacitance | 7pF Maximum | |||||||
| Equivalent Series Resistance | See the Equivalent Series Resistance (ESR), Mode of Operation, and Crystal Cut Table Below | |||||||
| Mode of Operation |
AT-Cut Fundamental (Only available over Nominal Frequency range of 3.579545MHz to 30MHz) AT-Cut Third Overtone (Only available over Nominal Frequency range of 24.576MHz to 50MHz) BT-Cut Fundamental (Only available with Frequency Tolerance/Stability of ±50ppm at 25°C, ±100ppm over 0°C to+70°C; Only available over Nominal Frequency range of 24MHz to 40MHz) |

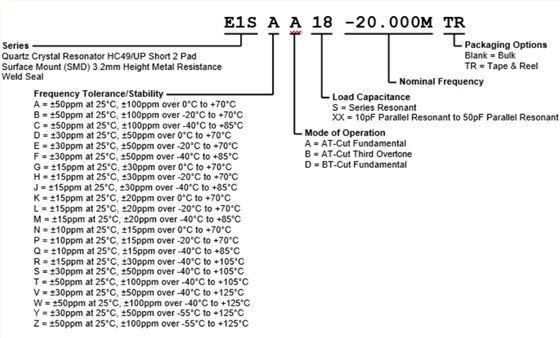

|||||||
| Drive Level | 1mWatt Maximum | |||||||
| Storage Temperature Range | -55°C to +125°C | |||||||
| Insulation Resistance | 500 Megaohms Minimum (Measured at 100Vdc) | |||||||
| 产品编码 | 进口晶振 | 型号 | 频率 | 负载电容 | 长 | 宽 | 高 |
| E1SAA12-24.000M | Ecliptek晶振 | E1S | 24 MHz | 12 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SAA12-24.000M TR | Ecliptek晶振 | E1S | 24 MHz | 12 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SAA12-30.000M TR | Ecliptek晶振 | E1S | 30 MHz | 12 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SAA18-12.000M | Ecliptek晶振 | E1S | 12 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SAA18-16.000M TR | Ecliptek晶振 | E1S | 16 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SAA18-24.000M TR | Ecliptek晶振 | E1S | 24 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SAA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SAA20-5.000M TR | Ecliptek晶振 | E1S | 5 MHz | 20 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SBA18-16.000M TR | Ecliptek晶振 | E1S | 16 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SBA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SBA18-27.000M TR | Ecliptek晶振 | E1S | 27 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SBA18-3.6864M TR | Ecliptek晶振 | E1S | 3.6864 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SBA18-7.3728M TR | Ecliptek晶振 | E1S | 7.3728 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SBA18-8.000M TR | Ecliptek晶振 | E1S | 8 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SBA20-12.000M | Ecliptek晶振 | E1S | 12 MHz | 20 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SBA20-12.000M TR | Ecliptek晶振 | E1S | 12 MHz | 20 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SCA12-24.000M | Ecliptek晶振 | E1S | 24 MHz | 12 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SCA12-3.6864M TR | Ecliptek晶振 | E1S | 3.6864 MHz | 12 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SCA18-14.7456M TR | Ecliptek晶振 | E1S | 14.7456 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SCA18-20.000M TR | Ecliptek晶振 | E1S | 20 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SCA18-3.6864M TR | Ecliptek晶振 | E1S | 3.6864 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SCA18-4.000M TR | Ecliptek晶振 | E1S | 4 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SCA18-7.3728M TR | 贴片晶振 | E1S | 7.3728 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SCA18-8.000M TR | Ecliptek晶振 | E1S | 8 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SCA32-12.000M | Ecliptek晶振 | E1S | 12 MHz | 32 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SDA12-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 12 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SDA18-24.576M | Ecliptek晶振 | E1S | 24.576 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SDA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SEA18-12.000M TR | Ecliptek晶振 | E1S | 12 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SEA18-25.000M | Ecliptek晶振 | E1S | 25 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SEA18-28.6363M TR | Ecliptek晶振 | E1S | 28.6363 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SEA18-3.6864M | Ecliptek晶振 | E1S | 3.6864 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SEA18-4.2944M TR | Ecliptek晶振 | E1S | 4.2944 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SEA20-25.000M | Ecliptek晶振 | E1S | 25 MHz | 20 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SEA20-4.000M TR | Ecliptek晶振 | E1S | 4 MHz | 20 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SEA20-8.000M | Ecliptek晶振 | E1S | 8 MHz | 20 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SEA20-8.000M TR | Ecliptek晶振 | E1S | 8 MHz | 20 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SEA40-8.704M TR | Ecliptek晶振 | E1S | 8.704 MHz | 40 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SFA12-3.6864M TR | Ecliptek晶振 | E1S | 3.6864 MHz | 12 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SFA16-6.290M TR | Ecliptek晶振 | E1S | 6.29 MHz | 16 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SFA18-12.000M TR | Ecliptek晶振 | E1S | 12 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SFA18-14.31818M TR | Ecliptek晶振 | E1S | 14.31818 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SFA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SFA18-3.6864M | Ecliptek晶振 | E1S | 3.6864 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SFA18-7.3728M TR | Ecliptek晶振 | E1S | 7.3728 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SFA18-8.000M TR | Ecliptek晶振 | E1S | 8 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SFA20-25.000M | Ecliptek晶振 | E1S | 25 MHz | 20 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SFAS-24.000M TR | Ecliptek晶振 | E1S | 24 MHz |
|
13.3mm | 4.85mm | 3.2mm |
| E1SGA18-14.7456M TR | Ecliptek晶振 | E1S | 14.7456 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SGA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SHA10-29.950M TR | 日蚀晶振 | E1S | 29.95 MHz | 10 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SHA20-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 20 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SJA16-14.31818M | Ecliptek晶振 | E1S | 14.31818 MHz | 16 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SJA18-24.000M TR | Ecliptek晶振 | E1S | 24 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SJA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SJA18-4.000M TR | Ecliptek晶振 | E1S | 4 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SJA20-25.000M | Ecliptek晶振 | E1S | 25 MHz | 20 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SMA14-25.000M | Ecliptek晶振 | E1S | 25 MHz | 14 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SMA18-25.000M | Ecliptek晶振 | E1S | 25 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SMA18-27.000M | Ecliptek晶振 | E1S | 27 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SMA18-27.000M TR | Ecliptek晶振 | E1S | 27 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SNA16-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 16 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SNA18-25.000M TR | Ecliptek晶振 | E1S | 25 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SSA18-5.000M TR | Ecliptek晶振 | E1S | 5 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SSA20-10.000M | Ecliptek晶振 | E1S | 10 MHz | 20 pF | 13.3mm | 4.85mm | 3.2mm |
| E1SSA20-10.000M TR | Ecliptek晶振 | E1S | 10 MHz | 18 pF | 13.3mm | 4.85mm | 3.2mm |
