12.80144|32.768KHz|12.5pF|206晶振|格耶晶体

产品简介

12.80144|32.768KHz|12.5pF|206晶振|格耶晶体,格耶晶振,KX-26进口晶振,圆柱插件晶振,12.80144晶振,206晶振,无源晶振,石英晶体谐振器,二脚封装晶振,频率32.768KHz,负载12.5pF,工作温度-20~70°C,频率容差10ppm,无铅环保晶振,高稳定性晶振,低老化晶振,蓝牙耳机晶振,无线路由器晶振,电子体重秤晶振,寻呼机晶振.

产品详情

TH-1 890 Ja-1

12.80144|32.768KHz|12.5pF|206晶振|格耶晶体,格耶晶振,KX-26进口晶振,圆柱插件晶振,12.80144晶振,206mm晶振,无源晶振,石英晶体谐振器,二脚封装晶振,频率32.768KHz,负载12.5pF,工作温度-20~70°C,频率容差10ppm,无铅环保晶振,高稳定性晶振,低老化晶振,蓝牙耳机晶振,无线路由器晶振,电子体重秤晶振,寻呼机晶振.

TH-2 890 TH--TC2

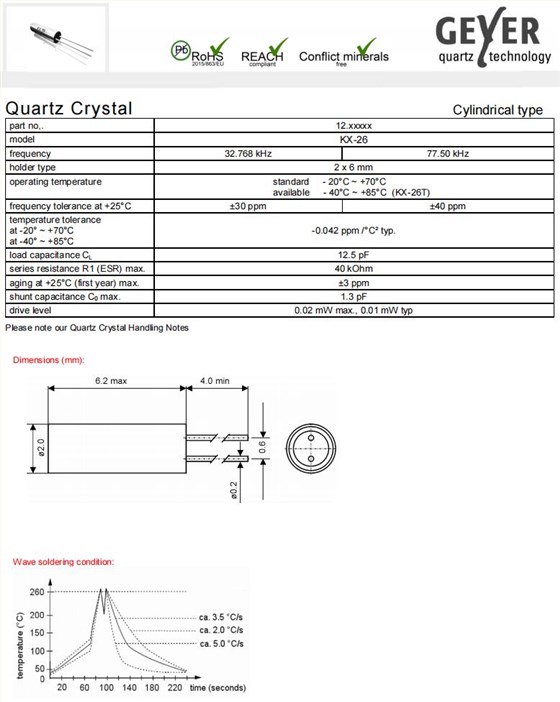

12.80144|32.768KHz|12.5pF|206晶振|格耶晶体规格表

part no.	12.80144
model	KX-26
frequency range	32.768KHz
mode	fundamental
operating temperature	-20~+70℃
frequency toleranceat +25°C	土10ppm
temperature tolerance	-0.042 ppm / °C² typ.
load capacitance CL	12.5 pF
shunt capacitance C0max.	1.3 pF
series resistance R1 (ESR) max.	30 kOhm
aging at +25°℃ (first year) max.	±3 ppm
drive level	0.02 mW max., 0.01 mW typ
