12.81110|16MHz|30pF|HC-49/U晶振|格耶晶振,格耶晶振,KX-49T进口晶振,无源晶振,12.81110晶振,二脚插件晶振,HC-49/U晶振,石英晶体谐振器,频率16MHz,负载30pF,工作温度-40~85°C,频率容差30ppm,高可靠性晶振,抗冲击晶振,无铅环保晶振,USB存储设备晶振,网络终端晶振,电子体重秤晶振,血压计晶振.

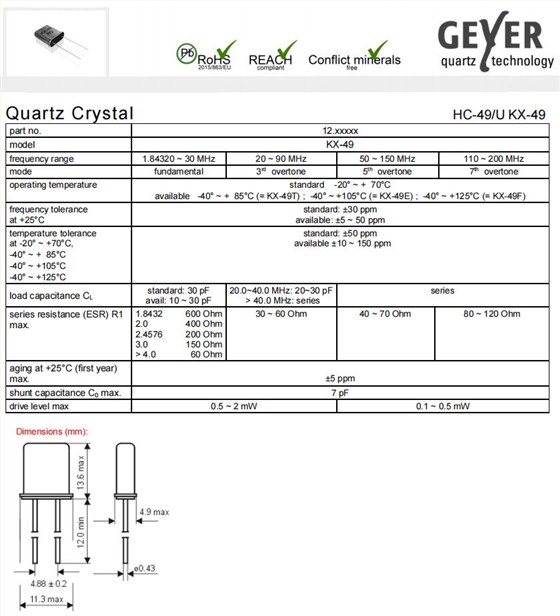

12.81110|16MHz|30pF|HC-49/U晶振|格耶晶振规格表
mode
part no.
12.81110
model
KX-49T
frequency range
16MHz
fundamental
operating temperature
-40~+85℃
frequency toleranceat +25°C
土30ppm
temperature tolerance
load capacitance CL
30 pF
shunt capacitance C0max.
7 pF
series resistance R1 (ESR) max.
60 Ohm
aging at +25°℃ (first year) max.
±5 ppm
drive level
0.5~2 mW max.
