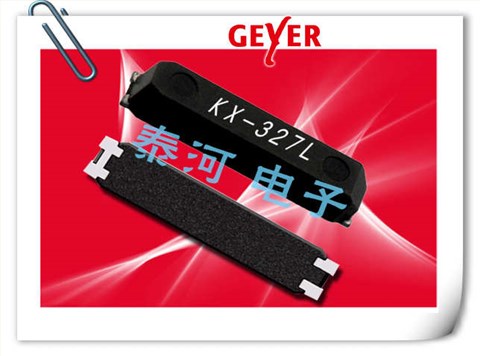

12.87135|KX-327LT|32.768KHz|7.0pF|Geyer音叉晶体

产品简介

12.87139|32.768KHz|7.0pF|10ppm|格耶晶振,欧美晶振,格耶晶振,KX-327LT晶体谐振器,进口晶振,12.87139晶振,无源晶振,石英贴片晶振,SMD晶体,7.0*1.5晶振,四脚晶振,频率32.768KHz,负载7.0pF,工作温度-40~85°C,频率容差10ppm,高可靠性晶振,低老化晶振,无铅环保晶振,时钟钟表晶振,无线路由器晶振,数码相机晶振,DVD家电影音系统晶振.

产品详情

TH-1 890 Ja-1

12.87139|32.768KHz|7.0pF|10ppm|格耶晶振,欧美晶振,格耶晶振,KX-327LT晶体谐振器,进口晶振,12.87139晶振,无源晶振,石英贴片晶振,SMD晶体,7.0*1.5晶振,四脚晶振,频率32.768KHz,负载7.0pF,工作温度-40~85°C,频率容差10ppm,高可靠性晶振,低老化晶振,无铅环保晶振,时钟钟表晶振,无线路由器晶振,数码相机晶振,DVD家电影音系统晶振.

TH-2 890 TH--TC2

12.87139|32.768KHz|7.0pF|10ppm|格耶晶振规格表

part no.	12.87139
model	KX-327LT
frequency	32.768 kHz
operating temperature	-40°~+85℃
frequency tolerance(df/F) at +25°C ±3°C	土10ppm
temperature tolerance (parabolic coefficient)	( -0.033 ±10 % ) × 10-6 / ℃2
turnover temperature	+25°C±5℃
storage temperature range	-55°C~+125℃
load capacitance CL	7.0 pF
shunt capacitance C0 typ.	0.8 pF
series resistance R1 (ESR)	65k Ohm max.
aging at +25°℃ (first year) max.	±3 ppm
drive levelmax.	1.0 mW
contents of reel	3000 pcs.
