12.87168|32.768KHz|9.0pF|-40~125°C|Geyer晶振

产品简介

12.87168|32.768KHz|9.0pF|-40~125°C|Geyer晶振,Geyer晶振,KX-327RF音叉晶振,晶体谐振器,12.87168晶振,无源晶振,SMD晶体,2012mm晶振,二脚贴片晶振,石英晶振,频率32.768KHz,负载9.0pF,工作温度-40~125°C,频率容差20ppm,耐高温晶振,高可靠性晶振,高品质晶振,安防设备晶振,北斗导航晶振,汽车电子控制晶振,汽车遥控器晶振.

产品详情

TH-1 890 Ja-1

12.87168|32.768KHz|9.0pF|-40~125°C|Geyer晶振,Geyer晶振,KX-327RF音叉晶振,晶体谐振器,12.87168晶振,无源晶振,SMD晶体,2012mm晶振,二脚贴片晶振,石英晶振,频率32.768KHz,负载9.0pF,工作温度-40~125°C,频率容差20ppm,耐高温晶振,高可靠性晶振,高品质晶振,安防设备晶振,北斗导航晶振,汽车电子控制晶振,汽车遥控器晶振.

TH-2 890 TH--TC2

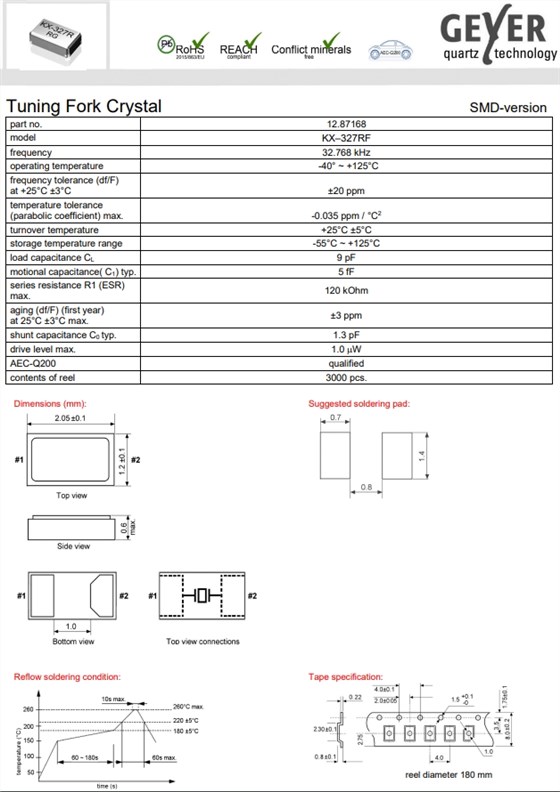

12.87168|32.768KHz|9.0pF|-40~125°C|Geyer晶振规格表

part no.	12.87168
model	KX-327RF
frequency	32.768 kHz
operating temperature	-40°~+125℃
frequency tolerance(df/F) at +25°C ±3°C	土20ppm
temperature tolerance (parabolic coefficient)	-0.035 ppm ±10 % / °C2 typ.
turnover temperature	+25°C±5℃
storage temperature range	-55°C~+125℃
load capacitance CL	9 pF
motional capacitance( C1) typ.	5 fF
shunt capacitance C0 typ.	1.3 pF
series resistance R1 (ESR)	120k Ohm max.
aging at +25°℃ (first year) max.	±3 ppm
drive levelmax.	1.0 uW
contents of reel	3000 pcs.
