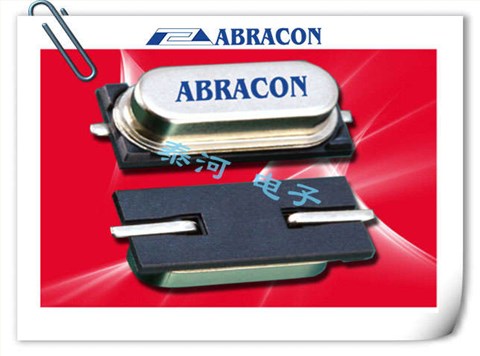

ABLS7M2-12.288MHZ-D2Y-T,12.288MHz,Abracon无线应用晶振,美国进口晶振，Abracon晶振，艾博康晶振，型号：ABLS7M2，编码为：ABLS7M2-12.288MHZ-D2Y-T，频率为12.288MHz，频率稳定性：±30ppm，频率容差：±20ppm，工作温度范围：-40℃至+85℃，负载电容：18pF，小体积晶振尺寸：7.0x4.1x2.0mm，两脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，应用于无线应用程序，家用电子产品，计算机、调制解调器和通信，微处理器等应用。
ABLS7M2-12.288MHZ-D2Y-T,12.288MHz,Abracon无线应用晶振，产品特点：
•ABLS（标准HC/49US封装）的占地面积减少了50%
•外形小巧：最大高度2.0毫米贴片晶振
•适用于符合RoHS的回流焊
•紧密的稳定性和延长的温度选项
•高可靠性和成本效益
•电阻焊接金属包装

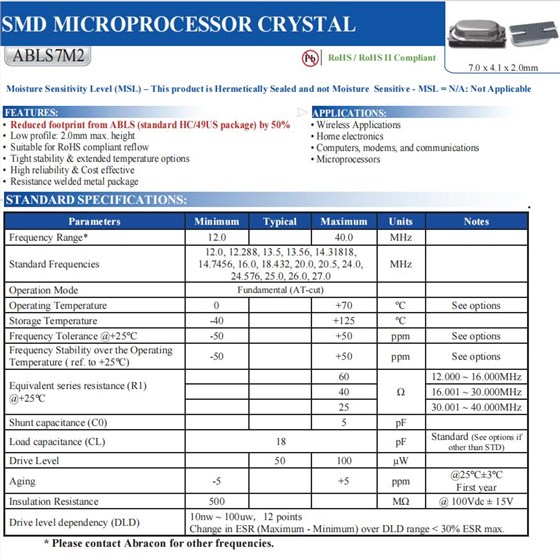

ABLS7M2-12.288MHZ-D2Y-T,12.288MHz,Abracon无线应用晶振,规格表
@+25°C
@25°C±3°C
First year
10nw ~ 100uw，12 points
Parameters
Minimum
Typical
Maximum
Units
Notes
Frequency Range*
12.0
40.0
MHz
Standard Frequencies
12.288
MHz
Operation Mode
Fundamental (AT-cut)
Operating Temperature
0
+70
ºC
See options
Storage Temperature
-40
+125
ºC
Frequency Tolerance @+25°C
-50
+50
ppm
See options
-50
+50
ppm
See options
60
Ω
12.000 ~ 16.000MHz
40
16.001 ~ 30.000MHz
25
30.001 ~ 40.000MHz
Shunt capacitance (C0)
5
pF
Load capacitance (CL)
18
pF
Drive Level
50
100
µW
Aging
-5
+5
ppm
Insulation Resistance
500
MΩ
@ 100Vdc ± 15V
Drive level dependency (DLD)

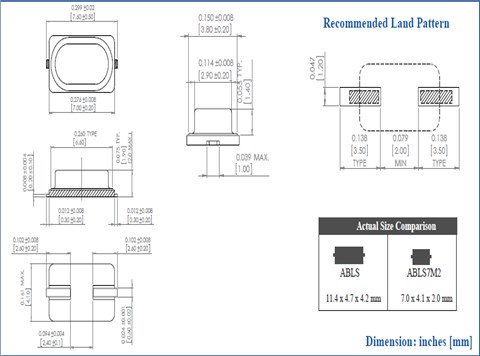

ABLS7M2-12.288MHZ-D2Y-T,12.288MHz,Abracon无线应用晶振,尺寸图
| 产品编码 | 晶振厂家 | 型号 | 频率 | 长度 | 宽度 | 高度 |
| ABLS7M-12.000MHZ-B-2-T | Abracon晶振 | ABLS7M | 12 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-12.288MHZ-B-2-T | Abracon晶振 | ABLS7M | 12.288 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-13.500MHZ-B-2-T | Abracon晶振 | ABLS7M | 13.5 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-13.560MHZ-B-2-T | Abracon晶振 | ABLS7M | 13.56 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-14.31818MHZ-B-2-T | Abracon晶振 | ABLS7M | 14.31818 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-14.7456MHZ-B-2-T | Abracon晶振 | ABLS7M | 14.7456 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-16.000MHZ-B-2-T | Abracon晶振 | ABLS7M | 16 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-18.432MHZ-B-2-T | Abracon晶振 | ABLS7M | 18.432 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-20.000MHZ-B-2-T | Abracon晶振 | ABLS7M | 20 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-20.500MHZ-B-2-T | Abracon晶振 | ABLS7M | 20.5 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-24.000MHZ-B-2-T | Abracon晶振 | ABLS7M | 24 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-24.576MHZ-B-2-T | Abracon晶振 | ABLS7M | 24.576 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-25.000MHZ-B-2-T | Abracon晶振 | ABLS7M | 25 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-26.000MHZ-B-2-T | Abracon晶振 | ABLS7M | 26 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M-27.000MHZ-B-2-T | Abracon晶振 | ABLS7M | 27 MHz | 7mm | 4.1mm | 2.3mm |
| ABLS7M2-12.000MHZ-D-2Y-T | Abracon晶振 | ABLS7M2 | 12 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-12.288MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 12.288 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-13.500MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 13.5 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-13.560MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 13.56 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-14.31818MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 14.31818 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-14.7456MHZ-D-2Y-T | Abracon晶振 | ABLS7M2 | 14.7456 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-16.000MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 16 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-18.432MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 18.432 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-20.000MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 20 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-20.500MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 20.5 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-24.000MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 24 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-24.576MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 24.576 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-25.000MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 25 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-26.000MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 26 MHz | 7mm | 4.1mm | 2mm |
| ABLS7M2-27.000MHZ-D2Y-T | Abracon晶振 | ABLS7M2 | 27 MHz | 7mm | 4.1mm | 2mm |
