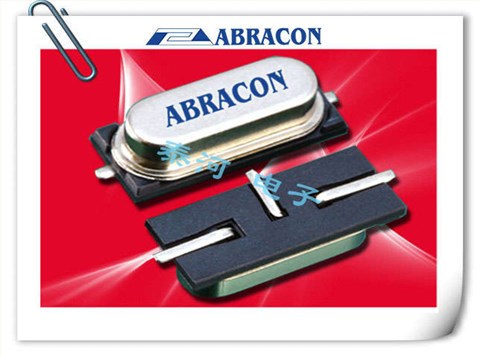

ABLSG-24.576MHZ-D2Y-F-T,Abracon无源晶振,无线应用晶振,美国Abracon晶振,艾博康晶振,型号:ABLSG系列,编码为:ABLSG-24.576MHZ-D2Y-F-T,频率为:24.576MHz,负载电容:18pF,频率稳定性:±30ppm,频率容差:±20ppm,工作温度范围:-40℃至+85℃,小体积晶振尺寸:11.4x4.7x4.2mm,三脚贴片晶振,SMD晶振,石英晶振,石英晶体谐振器,无源晶振。具有紧密的稳定性和延长的温度,应用于:EMI敏感应用,计算机晶振、调制解调器晶振、微处理器晶振,医疗电子晶振,无线应用晶振等。

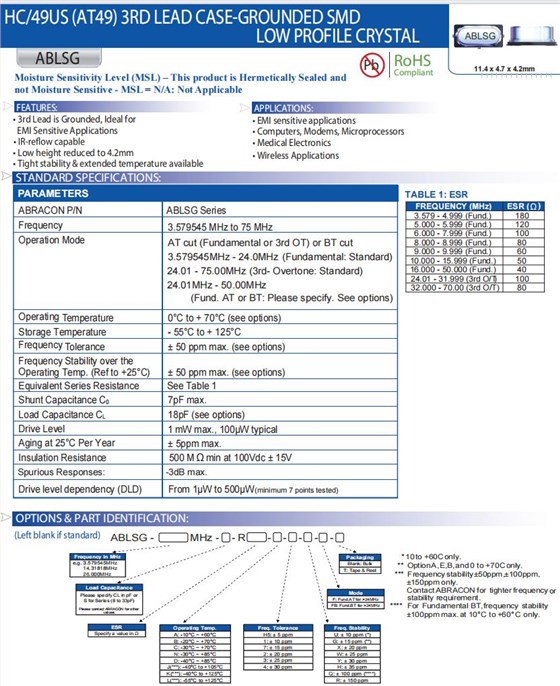

ABLSG-24.576MHZ-D2Y-F-T,Abracon无源晶振,无线应用晶振,规格表
品牌 | Abracon艾博康晶振 |
型号 | ABLSG |
物料编码 | ABLSG-24.576MHZ-D2Y-F-T |
频率 | 24.576MHz |
频率稳定性 | ±30ppm |
频率容差 | ±20ppm |
负载电容 | 18pF |
工作温度 | -40℃至+85℃ |
尺寸 | 11.4x4.7x4.2mm |

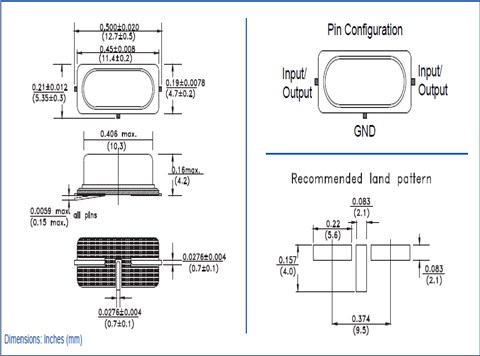

ABLSG-24.576MHZ-D2Y-F-T,Abracon无源晶振,无线应用晶振,尺寸图
产品编码 | 品牌 | 型号 | 频率 | 长度 | 宽度 | 高度 |
ABLSG-20.000MHZ-D2Y-T | Abracon晶振 | ABLSG | 20 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-24.000MHZ-D2Y-T | Abracon晶振 | ABLSG | 24 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-24.576MHZ-D2Y-F-T | Abracon晶振 | ABLSG | 24.576 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-25.000MHZ-D2Y-F-T | Abracon晶振 | ABLSG | 25 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-27.000MHZ-D2Y-F-T | Abracon晶振 | ABLSG | 27 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-28.63636MHZ-D2Y-F-T | Abracon晶振 | ABLSG | 28.63636 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-3.579545MHZ-D2Y-T | Abracon晶振 | ABLSG | 3.579545 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-3.6864MHZ-D2Y-T | Abracon晶振 | ABLSG | 3.6864 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-30.000MHZ-D2Y-F-T | Abracon晶振 | ABLSG | 30 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-4.000MHZ-D2Y-T | Abracon晶振 | ABLSG | 4 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-4.194304MHZ-D2Y-T | Abracon晶振 | ABLSG | 4.194304 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-4.433619MHZ-D2Y-T | Abracon晶振 | ABLSG | 4.433619 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-4.500MHZ-D2Y-T | Abracon晶振 | ABLSG | 4.5 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-4.9152MHZ-D2Y-T | Abracon晶振 | ABLSG | 4.9152 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-5.000MHZ-D2Y-T | Abracon晶振 | ABLSG | 5 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-6.000MHZ-D2Y-T | Abracon晶振 | ABLSG | 6 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-6.144MHZ-D2Y-T | Abracon晶振 | ABLSG | 6.144 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-6.7458MHZ-D2Y-T | Abracon晶振 | ABLSG | 6.7458 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-7.3728MHZ-D2Y-T | Abracon晶振 | ABLSG | 7.3728 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-8.000MHZ-D2Y-T | Abracon晶振 | ABLSG | 8 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-9.216MHZ-D2Y-T | Abracon晶振 | ABLSG | 9.216 MHz | 11.4mm | 4.7mm | 4.2mm |
ABLSG-9.8304MHZ-D2Y-T | Abracon晶振 | ABLSG | 9.8304 MHz | 11.4mm | 4.7mm | 4.2mm |
