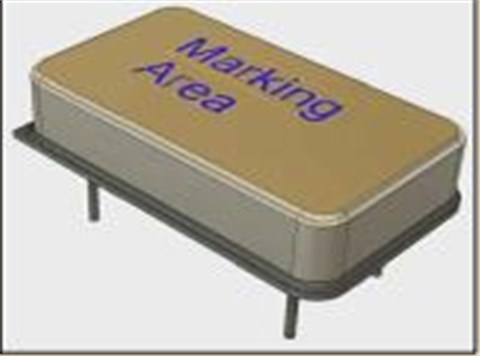

美国安德森晶振|AE-431-N-H-1-1070-3R3-36M000000|长方形钟振,美国安德森晶振,AE431振荡器,长方形钟振,AE-431-N-H-1-1070-3R3-36M000000晶振,进口晶振,石英晶体振荡器,四脚插件晶振,频率36MHz,电压3.3V,频率稳定性10ppm,工作温度-10~70°C,高精度晶振,高品质晶振,无铅环保晶振,测试与测量设备晶振,光纤通道晶振,存储区域网络晶振,智能设备晶振.
美国安德森晶振|AE-431-N-H-1-1070-3R3-36M000000|长方形钟振特点：
-频率范围:32.768KHz至155.520 MHz
-缝焊封装，紧凑，薄
-在频率稳定性、老化性、精度、可靠性等方面表现出优异的技术性能。
美国安德森晶振|AE-431-N-H-1-1070-3R3-36M000000|长方形钟振规格表
Greater than
24.001 MHz
Output Waveform (Symmetrical
_squarewave
25.000 MHz
50.000 MHz
80.000 MHz
155.520 MHz

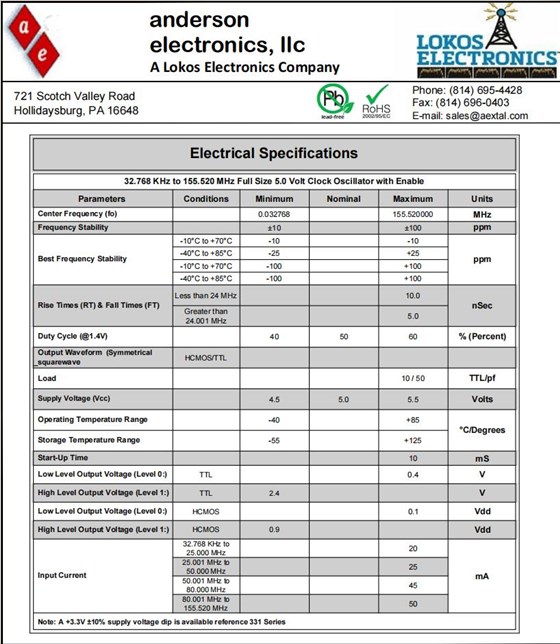

Electrical Specifications
32.768 KHz to 155.520 MHz Full Size 5.0 Volt Clock Oscillator with Enable
Parameters
Conditions
Minimum
Nominal
Maximum
Units
Center Frequency (fo)
0.032768
155.520000
MHz
Frequency Stability
±10
±100
ppm
Best Frequency Stability
-10°C to +70°C
-10
-10
ppm
-40°C to +85°C
-25
+25
-10°C to +70°C
-100
+100
-40°C to +85°C
-100
+100
Rise Times (RT) & Fall Times (FT)
Less than 24 MHz
10.0
nSec
5.0
Duty Cycle (@1.4V)
40
50
60
% (Percent)
HCMOS/TTL
Load
10 / 50
TTL/pf
Supply Voltage (Vcc)
4.5
5.0
5.5
Volts
Operating Temperature Range
-40
+85
oc/Degrees
Storage Temperature Range
-55
+125
Start-Up Time
10
mS
Low Level Output Voltage (Level 0:)
TTL
0.4
V
High Level Output Voltage (Level 1:)
TTL
2.4
V
Low Level Output Voltage (Level 0:)
HCMOS
0.1
Vdd
High Level Output Voltage (Level 1:)
HCMOS
0.9
Vdd
Input Current
20
mA
25
45
50
NOte: A +3.3v 士10% sUPPIY VOItage diP is aVaiIabIe reference 331 series

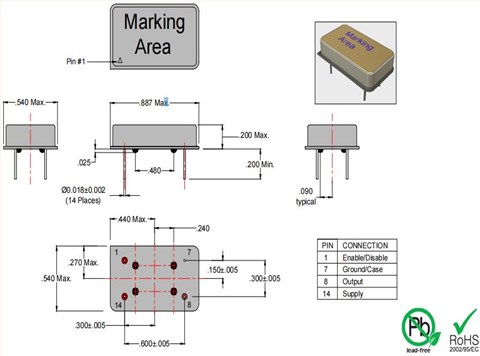

美国安德森晶振|AE-431-N-H-1-1070-3R3-36M000000|长方形钟振尺寸图
