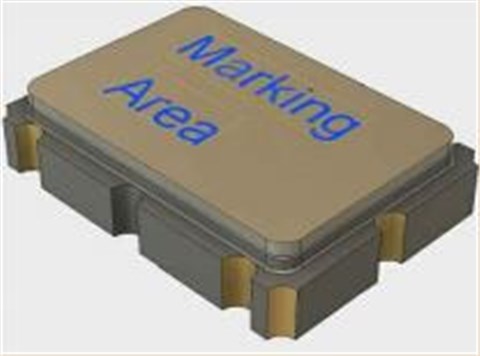

Anderson有源晶振|AE-803-N-H-2-4085-3R3-38M400000|7050mm晶振,欧美进口晶振,Anderson晶振,AE803有源晶振,OSCillator晶振,AE-803-N-H-2-4085-3R3-38M400000晶振,石英晶体振荡器,7050mm晶振,SMD晶体,四脚贴片晶振,频率38.4MHz,电压3.3V,频率稳定性20ppm,工作温度-40~85°C,高可靠性晶振,紧凑薄晶振,高稳定性晶振,网络终端晶振,通讯设备晶振,无线路由器晶振,程控交换机晶振.
Anderson有源晶振|AE-803-N-H-2-4085-3R3-38M400000|7050mm晶振特点：
-频率范围:1.5MHz至120.000 MHz
-缝焊封装，紧凑，薄
-在频率稳定性、老化性、精度、可靠性等方面表现出优异的技术性能。
Anderson有源晶振|AE-803-N-H-2-4085-3R3-38M400000|7050mm晶振规格表
Output Waveform(Symmetrical
_squarewave

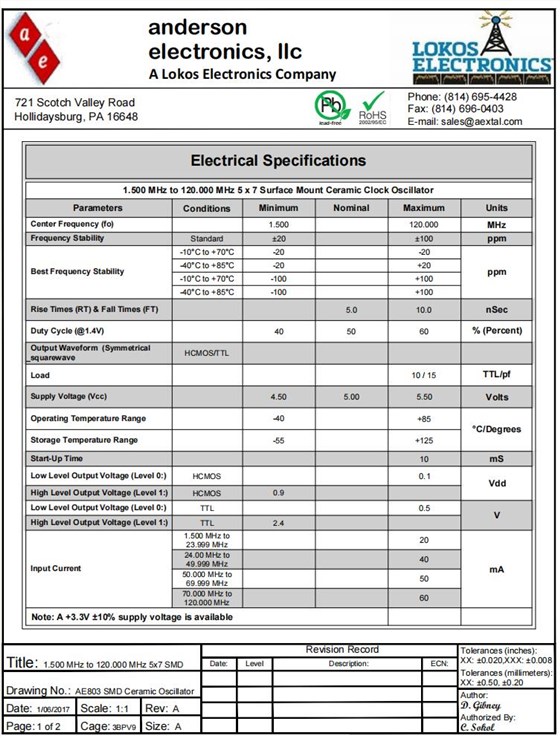

Electrical Specifications
1.500 MHz to 120.000 MHz 5 x 7 Surface Mount Ceramic Clock Oscillator
Parameters
Conditions
Minimum
Nominal
Maximum
Units
Center Frequency (fo)
1.500
120.000
MHz
Frequency Stability
Standard
±20
±100
ppm
Best Frequency Stability
-10°C to +70°C
-20
-20
ppm
-40°C to +85°C
-20
+20
-10°C to +70°C
-100
+100
-40°C to +85°C
-100
+100
Rise Times (RT) & Fall Times (FT)
5.0
10.0
nSec
Duty Cycle (@1.4V)
40
50
60
% (Percent)
HCMOS/TTL
Load
10 / 15
TTL/pf
Supply Voltage (Vcc)
4.50
5.00
5.50
Volts
Operating Temperature Range
-40
+85
oc/Degrees
Storage Temperature Range
-55
+125
Start-Up Time
10
mS
Low Level Output Voltage (Level 0:)
HCMOS
0.1
Vdd
High Level Output Voltage (Level 1:)
HCMOS
0.9
Low Level Output Voltage (Level 0:)
TTL
0.5
V
High Level Output Voltage (Level 1:)
TTL
2.4
Input Current
20
mA
40
50
60
NOte: A +3.3v 士10% sUPPIY VOItage is aVaiIabIe

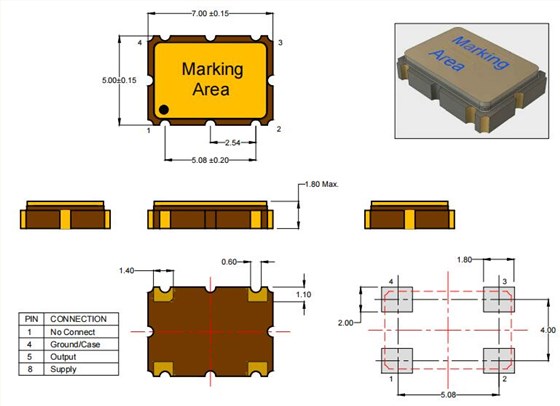

Anderson有源晶振|AE-803-N-H-2-4085-3R3-38M400000|7050mm晶振尺寸图
