CTS2-32.768-9-20-X-R|台湾AKER|32.768KHz|2012mm

CTS2-32.768-9-20-X-R|台湾AKER|32.768KHz|2012mm

产品简介

CTS2-32.768-9-20-X-R|台湾AKER|32.768KHz|2012mm,台湾进口晶振,AKER晶振,CTS2音叉晶振,无源晶振,CTS2-32.768-9-20-X-R晶振,32.768K石英晶振,2012mm晶振,二脚贴片晶振,负载9pF,工作温度-40~85°C,频率稳定性20ppm,轻薄小晶振,高精度晶振,耐高温晶振,蓝牙模块晶振,数码相机晶振,随身听晶振,无线通信晶振.

产品详情

TH-1 890

CTS2-32.768-9-20-X-R|台湾AKER|32.768KHz|2012mm,台湾进口晶振,AKER晶振,CTS2音叉晶振,无源晶振,CTS2-32.768-9-20-X-R晶振,32.768K石英晶振,2012mm晶振,二脚贴片晶振,负载9pF,工作温度-40~85°C,频率稳定性20ppm,轻薄小晶振,高精度晶振,耐高温晶振,蓝牙模块晶振,数码相机晶振,随身听晶振,无线通信晶振.

CTS2-32.768-9-20-X-R|台湾AKER|32.768KHz|2012mm特点:

微处理器晶体单元

32.768KHz

•2.0x 1.2毫米表面安装

热塑包装

产品通用规格

TH-2 890

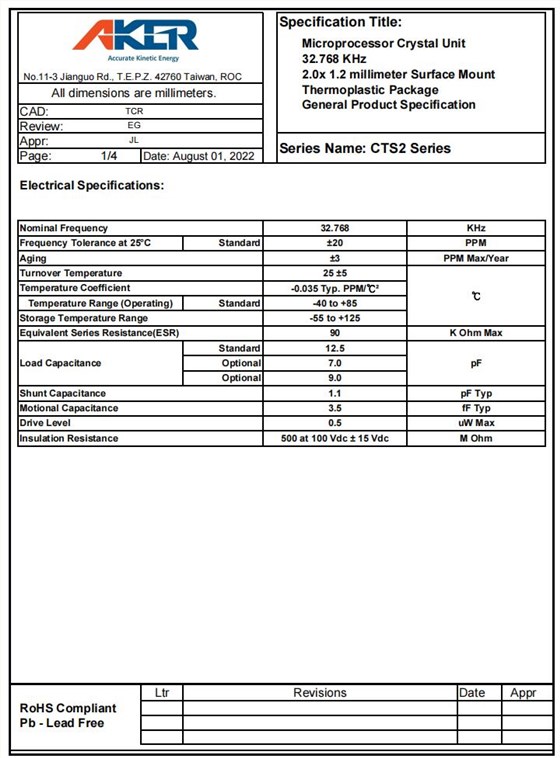

CTS2-32.768-9-20-X-R|台湾AKER|32.768KHz|2012mm规格表

Frequency Range 32.768 KHz
Frequency Tolerance at 25°C Standard ±20 PPM Max
Aging ±3 PPM Max/Year
Turnover Temperature 25 ±5
Temperature Coefficient -0.035 Typ. PPM/℃²
Temperature Range (Operating) Standard -40 to +85
Storage Temperature Range -55 to +125
Equivalent Series Resistance(ESR) 90 K Ohm Max
Load Capacitance Standard 12.5 pF
Optional 7.0
Optional 9.0
Shunt Capacitance 1.1 pF Typ
Motional Capacitance 3.5 fF Typ
Drive Level 0.5 uW Max
Insulation Resistance 500 at 100 Vdc± 15Vdc M Ohm

TH-3 890

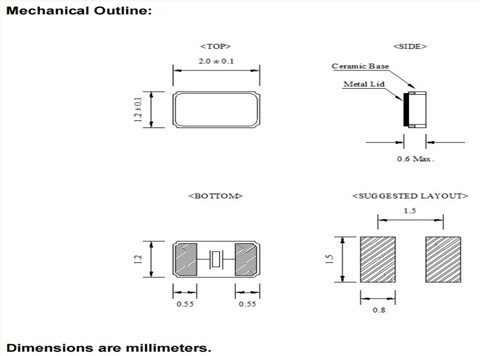

CTS2-32.768-9-20-X-R|台湾AKER|32.768KHz|2012mm尺寸图

CTS2-1

CTS2
