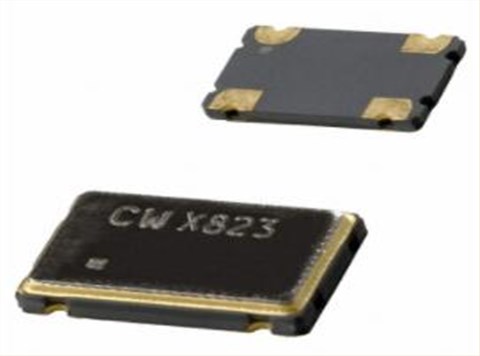

CWX823-018.432M,7050mm,ConnorWinfield卫星导航晶振,美国进口晶振,ConnorWinfield晶振,康纳温菲尔德晶振厂家,型号:CWX8xx系列,编码为:CWX823-018.432M,频率为:18.432MHz,工作温度范围:-20℃至+70℃,频率稳定性:±50ppm,电压:3.3V,小体积晶振尺寸:7.0x5.0mm封装,四脚贴片晶振,有源晶振,石英晶振,CMOS输出晶振,7050晶振,SMD晶振,石英晶体振荡器(XO)。为使用而设计在要求严格频率的应用中稳定性和低抖动,表面贴装CMOS时钟晶体振荡器系列,封装设计用于高密度安装,是质量的最佳选择生产。应用于:通讯设备晶振,无线网络晶振,卫星导航晶振,汽车电子晶振,导航仪,医疗设备,物联网等应用。
CWX823-018.432M,7050mm,ConnorWinfield卫星导航晶振,参数表
型号 | CWX823 |
频率 | 18.432MHz |
电源电压 | 3.3V |
输入电压 | Vcc+0.5 |
输出 | CMOS |
工作温度 | -20 °C ~ +70 °C |
保存温度 | -55 °C ~ +125 °C |
CWX823-018.432M,7050mm,ConnorWinfield卫星导航晶振,尺寸图
原厂代码 | 品牌 | 型号 | 频率 | 工作温度 |
CWX823-012.0M | ConnorWinfield晶振 | CWX823 | 12MHz | -20°C ~ 70°C |
CWX823-024.0M | ConnorWinfield晶振 | CWX823 | 24MHz | -20°C ~ 70°C |
CWX823-050.0M | ConnorWinfield晶振 | CWX823 | 50MHz | -20°C ~ 70°C |
CWX823-032.768M | ConnorWinfield晶振 | CWX823 | 32.768MHz | -20°C ~ 70°C |
CWX823-018.432M | ConnorWinfield晶振 | CWX823 | 18.432MHz | -20°C ~ 70°C |
CWX823-049.152M | ConnorWinfield晶振 | CWX823 | 49.152MHz | -20°C ~ 70°C |
CWX823-016.0M | ConnorWinfield晶振 | CWX823 | 16MHz | -20°C ~ 70°C |
CWX823-012.288M | ConnorWinfield晶振 | CWX823 | 12.288MHz | -20°C ~ 70°C |
CWX823-020.0M | 康纳温菲尔德晶振 | CWX823 | 20MHz | -20°C ~ 70°C |
CWX823-027.0M | ConnorWinfield晶振 | CWX823 | 27MHz | -20°C ~ 70°C |
CWX823-033.333M | ConnorWinfield晶振 | CWX823 | 33.333MHz | -20°C ~ 70°C |
CWX823-100.0M | ConnorWinfield晶振 | CWX823 | 100MHz | -20°C ~ 70°C |
CWX823-001.544M | ConnorWinfield晶振 | CWX823 | 1.544MHz | -20°C ~ 70°C |
CWX823-040.0M | ConnorWinfield晶振 | CWX823 | 40MHz | -20°C ~ 70°C |
CWX823-033.0M | ConnorWinfield晶振 | CWX823 | 33MHz | -20°C ~ 70°C |
CWX823-004.0M | ConnorWinfield晶振 | CWX823 | 4MHz | -20°C ~ 70°C |
CWX823-025.0M | ConnorWinfield晶振 | CWX823 | 25MHz | -20°C ~ 70°C |
CWX823-001.8432M | ConnorWinfield晶振 | CWX823 | 1.8432MHz | -20°C ~ 70°C |
CWX823-064.0M | ConnorWinfield晶振 | CWX823 | 64MHz | -20°C ~ 70°C |
CWX823-125.0M | ConnorWinfield晶振 | CWX823 | 125MHz | -20°C ~ 70°C |
CWX823-156.25M | ConnorWinfield晶振 | CWX823 | 156.25MHz | -20°C ~ 70°C |
CWX823-010.0M | ConnorWinfield晶振 | CWX823 | 10MHz | -20°C ~ 70°C |
CWX823-029.4912M | ConnorWinfield晶振 | CWX823 | 29.4912MHz | -20°C ~ 70°C |
CWX823-060.0M | ConnorWinfield晶振 | CWX823 | 60MHz | -20°C ~ 70°C |
CWX823-024.576M | ConnorWinfield晶振 | CWX823 | 24.576MHz | -20°C ~ 70°C |
CWX823-008.0M | ConnorWinfield晶振 | CWX823 | 8MHz | -20°C ~ 70°C |
CWX823-007.3728M | ConnorWinfield晶振 | CWX823 | 7.3728MHz | -20°C ~ 70°C |
CWX823-066.6666M | ConnorWinfield晶振 | CWX823 | 66.6666MHz | -20°C ~ 70°C |
CWX823-032.0M | ConnorWinfield晶振 | CWX823 | 32MHz | -20°C ~ 70°C |
CWX823-080.0M | ConnorWinfield晶振 | CWX823 | 80MHz | -20°C ~ 70°C |
CWX823-016.384M | ConnorWinfield晶振 | CWX823 | 16.384MHz | -20°C ~ 70°C |
CWX823-030.0M | ConnorWinfield晶振 | CWX823 | 30MHz | -20°C ~ 70°C |
CWX823-044.736M | ConnorWinfield晶振 | CWX823 | 44.736MHz | -20°C ~ 70°C |
CWX823-003.6864M | ConnorWinfield晶振 | CWX823 | 3.6864MHz | -20°C ~ 70°C |
CWX823-014.31818M | ConnorWinfield晶振 | CWX823 | 14.31818MHz | -20°C ~ 70°C |
CWX823-015.36M | ConnorWinfield晶振 | CWX823 | 15.36MHz | -20°C ~ 70°C |
CWX823-019.44M | ConnorWinfield晶振 | CWX823 | 19.44MHz | -20°C ~ 70°C |
CWX823-020.48M | ConnorWinfield晶振 | CWX823 | 20.48MHz | -20°C ~ 70°C |
CWX823-045.0M | ConnorWinfield晶振 | CWX823 | 45MHz | -20°C ~ 70°C |
CWX823-072.0M | ConnorWinfield晶振 | CWX823 | 72MHz | -20°C ~ 70°C |
