CX2016DB24000D0GEJCC晶振详情/24MHz/2016mm/8pF/SMD-4p，日本进口Kyocera京瓷晶振CX2016DB，编码为CX2016DB24000D0GEJCC，是一款小体积晶振尺寸2.0x1.6mm表面贴装型，四脚贴片晶振，石英晶体谐振器，石英晶振，无铅环保晶振，频率为：24.000MHz，工作温度范围：-10℃至+70℃，具有超小型，轻薄型，耐热及耐环境特点，该无源晶振应用于通讯设备，一般民用设备用石英振子，数码家电晶振，普通民用设备，无线蓝牙晶振，智能手机晶振，平板电脑晶振，智能家居晶振，汽车电子，可穿戴设备，小型便捷式设备等应用。
CX2016DB24000D0GEJCC晶振详情/24MHz/2016mm/8pF/SMD-4p，参数表
| 項 目 | 記号 | CX2016DB 规格 | 単位 | 備 考 |
| 周波数 |
f_nom |
16, 20, 24, 25, 26, 27, 30, 32, 37 .4, 38 .4, 40, 48, 50 |
MHz | 关于其他频率请咨询 |
| 超调阶数 | OT | Fundamental | ― | |
| 負荷容量 | CL | 8 | pF | 关于其他的负荷容量请咨询 |
| 周波数許容偏差 | f_tol | ± 15 | × 10−6 | 25°C± 3°C |
| 直列抵抗 | R1 | Table 1 | ohm | |
| 激励水平 | DL | 10μW(100μW max .) |
W |
|
| 動作温度範囲 | T_use | − 30 ~ +85 | °C | |
| 保存温度範囲 | T_stg | −40 ~ +85 | °C | |
| 周波数温度特性 | f_tem | ± 20 | × 10−6 | 相对于25℃频率的偏差 |

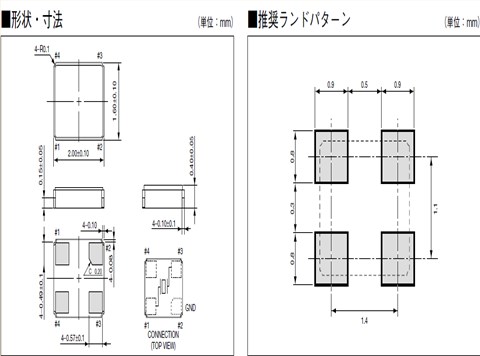

CX2016DB24000D0GEJCC晶振详情/24MHz/2016mm/8pF/SMD-4p，尺寸图
CX2016DB24000D0GEJCC晶振详情/24MHz/2016mm/8pF/SMD-4p
产品编码：
CX2016DB27000D0GLLCC
① ② ③ ④ ⑤ ⑥ ⑦
①型名
②周波数
③負荷容量
④周波数許容偏差（常温偏差）
|
D0 |
8pF |
|
G |
±15×10−6 |
⑤動作温度範囲および⑥周波数温度特性
|
LL |
−30~+85°C |
±20×10−6 |
⑦個別仕様(カタログ仕様は「CC」になります)
包装形態(テーピング1000/3000/15000個/リール)
| 原厂编码 | 晶振工厂 | 型号 | 频率 | 工作温度 | 包装/封装 |
| CX2016DB27120B0HLLC1 | Kyocera京瓷晶振 | CX2016DB | 27.12MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB19200H0KFQC1 | Kyocera京瓷晶振 | CX2016DB | 19.2MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB38400C0WPLA2 | Kyocera京瓷晶振 | CX2016DB | 38.4MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB38400D0FLJCC | Kyocera京瓷晶振 | CX2016DB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB32000D0WZRC1 | Kyocera京瓷晶振 | CX2016DB | 32MHz | -25°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB26000H0FLJC2 | Kyocera京瓷晶振 | CX2016DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24000D0GEJCC | Kyocera京瓷晶振 | CX2016DB | 24MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB32000D0FLJCC | Kyocera京瓷晶振 | CX2016DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB40000D0FLJCC | Kyocera京瓷晶振 | CX2016DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB48000C0WPLA2 | Kyocera京瓷晶振 | CX2016DB | 48MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB16000D0FLJCC | Kyocera京瓷晶振 | CX2016DB | 16MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24000H0FLJC4 | Kyocera京瓷晶振 | CX2016DB | 24MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB25000H0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 25MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24576H0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 24.576MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB19200D0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 19.2MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB20000H0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 20MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB19200H0FLJC2 | Kyocera京瓷晶振 | CX2016DB | 19.2MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB48000H0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 48MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB16000H0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 16MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB25000D0FLJC2 | Kyocera京瓷晶振 | CX2016DB | 25MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB32000H0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24000D0FLJC6 | Kyocera京瓷晶振 | CX2016DB | 24MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB27000H0FLFC1 | Kyocera京瓷晶振 | CX2016DB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB26000D0FLJCC | Kyocera京瓷晶振 | CX2016DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB20000D0FLJCC | 京瓷晶振 | CX2016DB | 20MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB48000E0DLFA1 | Kyocera京瓷晶振 | CX2016DB | 48MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB16000D0WZRC1 | Kyocera京瓷晶振 | CX2016DB | 16MHz | -25°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB48000C0WLLA1 | Kyocera京瓷晶振 | CX2016DB | 48MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB16000D0GPSC1 | Kyocera京瓷晶振 | CX2016DB | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB32000D0WPRC1 | Kyocera京瓷晶振 | CX2016DB | 32MHz | -25°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB19200D0GPSC1 | Kyocera京瓷晶振 | CX2016DB | 19.2MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB20000D0GPSC1 | Kyocera京瓷晶振 | CX2016DB | 20MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24000D0GPSC2 | Kyocera京瓷晶振 | CX2016DB | 24MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24576D0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 24.576MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24576D0GPSC1 | Kyocera京瓷晶振 | CX2016DB | 24.576MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB25000D0GPSC1 | Kyocera京瓷晶振 | CX2016DB | 25MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB26000D0FLJC4 | Kyocera京瓷晶振 | CX2016DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB26000D0GPSC1 | Kyocera京瓷晶振 | CX2016DB | 26MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB27000D0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB27000H0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 27MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB27000D0GPSC1 | Kyocera京瓷晶振 | CX2016DB | 27MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB30000D0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 30MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB30000H0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 30MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB30000D0GPSC1 | Kyocera京瓷晶振 | CX2016DB | 30MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB32000D0GPSC1 | Kyocera京瓷晶振 | CX2016DB | 32MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB38400D0FLJC2 | Kyocera京瓷晶振 | CX2016DB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB38400H0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB38400D0GPSC1 | Kyocera京瓷晶振 | CX2016DB | 38.4MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB40000H0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB40000D0GPSC1 | Kyocera京瓷晶振 | CX2016DB | 40MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB48000D0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 48MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB48000D0GPSC1 | Kyocera京瓷晶振 | CX2016DB | 48MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24576D0GEJCC | Kyocera京瓷晶振 | CX2016DB | 24.576MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB27000D0GEJCC | Kyocera京瓷晶振 | CX2016DB | 27MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB35416K0DZFA1 | Kyocera京瓷晶振 | CX2016DB | 35.416MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB35416K0HJLC1 | Kyocera京瓷晶振 | CX2016DB | 35.416MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24576D0GEJZ1 | Kyocera京瓷晶振 | CX2016DB | 24.576MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB26000D0FLJZ1 | 谐振器 | CX2016DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB27000D0GEJZ1 | Kyocera京瓷晶振 | CX2016DB | 27MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB32000D0FLJZ1 | Kyocera京瓷晶振 | CX2016DB | 32MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB38400D0FLJZ1 | Kyocera京瓷晶振 | CX2016DB | 38.4MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB40000D0FLJZ1 | Kyocera京瓷晶振 | CX2016DB | 40MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB24000D0GEJZ1 | Kyocera京瓷晶振 | CX2016DB | 24MHz | -10°C ~ 70°C | 4-SMD, No Lead |
| CX2016DB26000D0FLJC1 | Kyocera京瓷晶振 | CX2016DB | 26MHz | -30°C ~ 85°C | 4-SMD, No Lead |
| CX2016DB50000D0KJSC1 | Kyocera京瓷晶振 | CX2016DB | 50MHz | -30°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB31250K0KJSC1 | Kyocera京瓷晶振 | CX2016DB | 31.25MHz | -30°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB39062K0KJSC1 | Kyocera京瓷晶振 | CX2016DB | 39.0625MHz | -30°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB38880D0KJSC1 | Kyocera京瓷晶振 | CX2016DB | 38.88MHz | -30°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB40960D0KJSC1 | Kyocera京瓷晶振 | CX2016DB | 40.96MHz | -30°C ~ 75°C | 4-SMD, No Lead |
| CX2016DB53125K0KJSC1 | Kyocera京瓷晶振 | CX2016DB | 53.125MHz | -30°C ~ 75°C | 4-SMD, No Lead |
