EA5070FA18-24.000M TR,Ecliptek品牌晶振,7050mm,无线晶振

产品简介

EA5070FA18-24.000M TR,Ecliptek品牌晶振,7050mm,无线晶振，Ecliptek晶振，日蚀晶振，美国进口晶振，型号：EA5070，编码为：EA5070FA18-24.000M TR，频率：24MHz，负载：18pF，频率稳定性：±50ppm，频率容差：±30ppm，工作温度：-40°C ~+85°C，是一款小体积晶振尺寸：7.0x5.0mm封装，四脚贴片晶振，无源晶振，石英晶体谐振器，石英晶振，无铅环保晶振，SMD晶振，具有超小型，轻薄型，高性能，高品质，耐热及耐环境等特点。应用于：通讯设备晶振，无线晶振，蓝牙模块晶振，汽车电子，数码电子，安防设备等应用。

产品详情

TH-1 890

TH-2 890

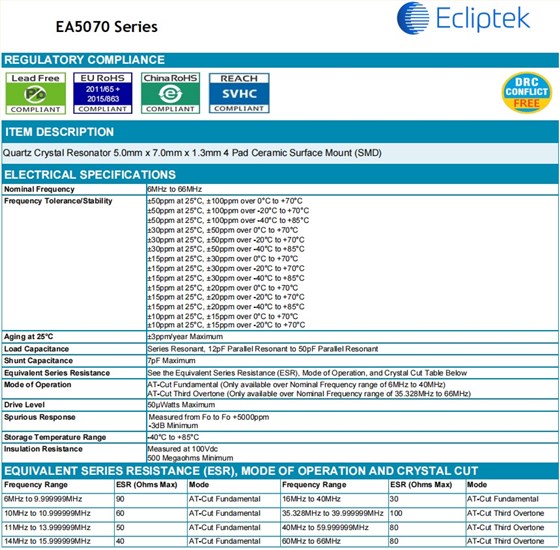

EA5070FA18-24.000M TR,Ecliptek品牌晶振,7050mm,无线晶振,规格表

品牌	Ecliptek日蚀晶振
型号	EA5070
物料编码	EA5070FA18-24.000M TR
频率	24.000MHz
频率稳定性	±50ppm
频率容差	±30ppm
负载电容	18pF
工作温度	-40℃至+85℃
尺寸	7.0x5.0mm

TH-3 890

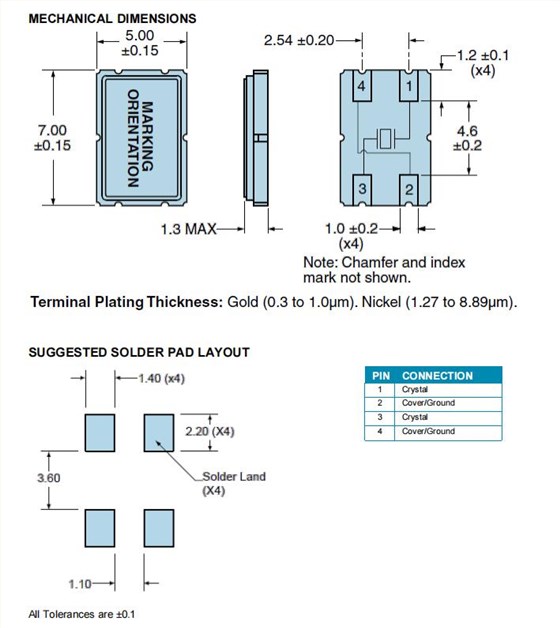

EA5070FA18-24.000M TR,Ecliptek品牌晶振,7050mm,无线晶振,尺寸图

产品编码	品牌	型号	频率	负载电容
EA5070CA12-24.000M TR	Ecliptek晶振	EA5070	24 MHz	12 pF
EA5070CA18-20.000M TR	Ecliptek晶振	EA5070	20 MHz	18 pF
EA5070CAS-8.000M TR	Ecliptek晶振	EA5070	8 MHz	8 pF
EA5070FA16-22.5792M TR	Ecliptek晶振	EA5070	22.5792 MHz	16 pF
EA5070FA18-10.000M	Ecliptek晶振	EA5070	10 MHz	18 pF
EA5070FA18-14.31818M	日蚀晶振	EA5070	14.31818 MHz	18 pF
EA5070FA18-24.000M TR	Ecliptek晶振	EA5070	24 MHz	18 pF
EA5070FA18-25.000M TR	Ecliptek晶振	EA5070	25 MHz	18 pF
EA5070FA18-27.000M TR	Ecliptek晶振	EA5070	27 MHz	18 pF
EA5070FA20-7.3728M	Ecliptek晶振	EA5070	7.3728 MHz	20 pF
EA5070GA18-25.000625M	Ecliptek晶振	EA5070	25.000625 MHz	18 pF
EA5070GA18-25.000625M TR	Ecliptek晶振	EA5070	25.000625 MHz	18 pF
EA5070GA20-7.3728M	Ecliptek晶振	EA5070	7.3728 MHz	20 pF
EA5070JA18-25.000625M TR	Ecliptek晶振	EA5070	25.000625 MHz	18 pF
EA5070JA20-14.31818M TR	Ecliptek晶振	EA5070	14.31818 MHz	20 pF
EA5070JA20-6.000M TR	Ecliptek晶振	EA5070	6 MHz	20 pF
EA5070PA20-8.000M	Ecliptek晶振	EA5070	8 MHz	20 pF
