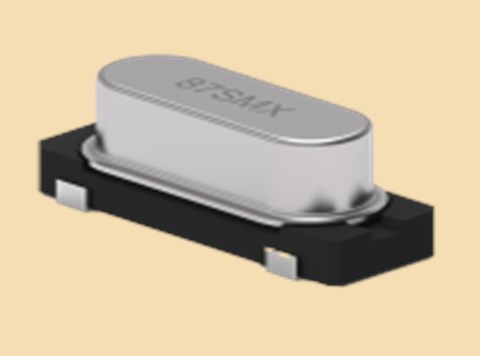

英国IQD晶振|87SMX|LFXTAL023899Bulk|SMD晶体,英国IQD晶振,87SMX进口晶振,无源晶振,LFXTAL023899Bulk晶振,石英晶体谐振器,13.1×5.0× 5.5mm晶振,SMD晶体,四脚贴片晶振,频率3.6864MHz,负载16pF,频率容差50ppm,工作温度-20~70°C,低老化晶振,高稳定性晶振,高品质晶振,家用电视机顶盒晶振,音频系统晶振,网络服务器晶振,调制解调器晶振.

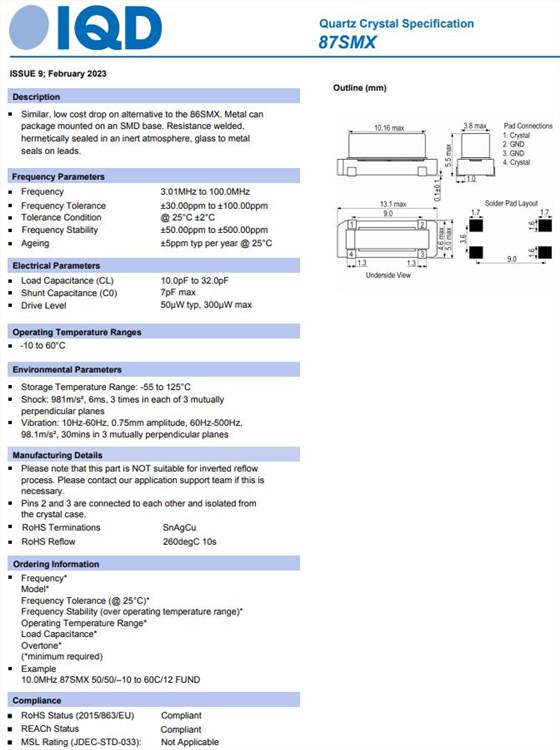

英国IQD晶振|87SMX|LFXTAL023899Bulk|SMD晶体规格表
参数
数值
频率
3.6864 MHz
频率容差@ 25°C ± 3°C
±50 ppm
频率稳定性
±100 ppm
工作温度
-20~70°C
储存温度
-55~125°C
负载
16 pF
并联电容
7pFtyp
驱动电平
50µWmax.
老化@ 25°C ± 3°C
±5.0ppm peryearmax
英国IQD晶振|87SMX|LFXTAL023899Bulk|SMD晶体尺寸图
| 编码 | 型号 | 频率 | 频率容差 | 频率稳定性 | 工作温度 | 负载 |
| LFXTAL065272RL3K | CFPX-180 | 32.768MHz | ±50ppm | ±50ppm | -40°C to 85°C | 20.00pF |
| LFXTAL088666RL3K | CFPX-180 | 32.768MHz | ±30ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL059672Cutt | CFPX-180 | 36.0MHz | ±10ppm | ±10ppm | -10°C to 60°C | 10.00pF |
| LFXTAL075445RL3K | CFPX-180 | 38.4MHz | ±10ppm | ±10ppm | -20°C to 75°C | 8.50pF |
| LFXTAL076107RL3K | CFPX-180 | 38.4MHz | ±30ppm | ±50ppm | -40°C to 85°C | 15.00pF |
| LFXTAL082763RL3K | CFPX-180 | 38.4MHz | ±30ppm | ±30ppm | -20°C to 70°C | 9.00pF |
| LFXTAL083279Cutt | CFPX-180 | 38.4MHz | ±20ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL035270Bulk | CFPX-180 | 40.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 16.00pF |
| LFXTAL035270Cutt | CFPX-180 | 40.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 16.00pF |
| LFXTAL059648Cutt | CFPX-180 | 40.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059648Reel | CFPX-180 | 40.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059648RL3K | CFPX-180 | 40.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL076900Cutt | CFPX-180 | 40.0MHz | ±10ppm | ±10ppm | -20°C to 75°C | 9.00pF |
| LFXTAL082077RL3K | CFPX-180 | 40.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL054093Cutt | CFPX-180 | 41.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 10.50pF |
| LFXTAL069379Cutt | CFPX-180 | 44.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL009549Bulk | CFPX-180 | 48.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 16.00pF |
| LFXTAL053866Cutt | CFPX-180 | 48.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL053866RL3K | CFPX-180 | 48.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL055570Cutt | CFPX-180 | 48.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL062288RL3K | CFPX-180 | 48.0MHz | ±30ppm | ±30ppm | -10°C to 60°C | 18.00pF |
| LFXTAL071958Cutt | CFPX-180 | 48.0MHz | ±30ppm | ±20ppm | -40°C to 85°C | 18.00pF |
| LFXTAL079244Cutt | CFPX-180 | 48.0MHz | ±15ppm | ±25ppm | -40°C to 85°C | 8.00pF |
| LFXTAL080495RL3K | CFPX-180 | 48.0MHz | ±50ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL080873RL3K | CFPX-180 | 48.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | 10.00pF |
| LFXTAL082068RL3K | CFPX-180 | 48.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL083249Cutt | CFPX-180 | 48.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL084993RL3K | CFPX-180 | 48.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 18.00pF |
| LFXTAL090184RL3K | CFPX-180 | 48.0MHz | ±10ppm | ±20ppm | -20°C to 70°C | 20.00pF |
| LFXTAL060843Cutt | CFPX-180 | 50.0MHz | ±25ppm | ±25ppm | -20°C to 70°C | 10.00pF |
| LFXTAL060843Reel | CFPX-180 | 50.0MHz | ±25ppm | ±25ppm | -20°C to 70°C | 10.00pF |
| LFXTAL060843RL3K | CFPX-180 | 50.0MHz | ±25ppm | ±25ppm | -20°C to 70°C | 10.00pF |
| LFXTAL069349Cutt | CFPX-180 | 50.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 8.00pF |
| LFXTAL072787Cutt | CFPX-180 | 50.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL072787RL3K | CFPX-180 | 50.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL082006Cutt | CFPX-180 | 50.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 12.00pF |
| LFXTAL082006RL3K | CFPX-180 | 50.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 12.00pF |
| LFXTAL082078Cutt | CFPX-180 | 50.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082078Reel | CFPX-180 | 50.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082078RL3K | CFPX-180 | 50.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082568RL3K | CFPX-180 | 50.0MHz | ±10ppm | ±15ppm | -40°C to 85°C | 12.00pF |
| LFXTAL082637RL3K | CFPX-180 | 50.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL083481RL3K | CFPX-180 | 50.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 16.00pF |
| LFXTAL062546Cutt | CFPX-180 | 54.0MHz | ±15ppm | ±20ppm | -20°C to 70°C | 19.00pF |
| LFXTAL062546RL3K | CFPX-180 | 54.0MHz | ±15ppm | ±20ppm | -20°C to 70°C | 19.00pF |
| LFXTAL083943Cutt | CFPX-180 | 200.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL053050Cutt | CFPX-104 | 8.0MHz | ±30ppm | ±30ppm | -20°C to 70°C | 12.00pF |
| LFXTAL054323Bulk | CFPX-104 | 8.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL054323Cutt | CFPX-104 | 8.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL054323Reel | CFPX-104 | 8.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL055663Bulk | CFPX-104 | 8.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL055663Cutt | CFPX-104 | 8.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL055663Reel | CFPX-104 | 8.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL055901Cutt | CFPX-104 | 8.0MHz | ±20ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL055901Reel | CFPX-104 | 8.0MHz | ±20ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL057013Bulk | CFPX-104 | 8.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL059158Bulk | CFPX-104 | 8.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL059158Cutt | CFPX-104 | 8.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL061627Cutt | CFPX-104 | 8.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL063177Cutt | CFPX-104 | 8.0MHz | ±30ppm | ±30ppm | -20°C to 70°C | 18.00pF |
| LFXTAL063189Bulk | CFPX-104 | 8.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 15.00pF |
| LFXTAL065886Cutt | CFPX-104 | 8.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 18.00pF |
| LFXTAL066685Bulk | CFPX-104 | 8.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069277Bulk | CFPX-104 | 8.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL070720Cutt | CFPX-104 | 8.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 20.00pF |
| LFXTAL070722Bulk | CFPX-104 | 8.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 30.00pF |
| LFXTAL078127Cutt | CFPX-104 | 8.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 12.00pF |
| LFXTAL078323Cutt | CFPX-104 | 8.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL081233Bulk | CFPX-104 | 8.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL061486Bulk | CFPX-104 | 8.192MHz | ±30ppm | ±50ppm | -40°C to 85°C | 10.00pF |
| LFXTAL061486Cutt | CFPX-104 | 8.192MHz | ±30ppm | ±50ppm | -40°C to 85°C | 10.00pF |
| LFXTAL061486Reel | CFPX-104 | 8.192MHz | ±30ppm | ±50ppm | -40°C to 85°C | 10.00pF |
| LFXTAL075997Reel | CFPX-104 | 9.9MHz | ±40ppm | ±60ppm | -40°C to 125°C | 12.00pF |
| LFXTAL056583Reel | CFPX-104 | 10.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL072402Cutt | CFPX-104 | 10.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL072402Reel | CFPX-104 | 10.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL058513Bulk | CFPX-104 | 11.0592MHz | ±30ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL060205Bulk | CFPX-104 | 11.0592MHz | ±10ppm | ±10ppm | -10°C to 60°C | 10.00pF |
| LFXTAL032878Bulk | CFPX-104 | 12.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL032878Cutt | CFPX-104 | 12.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL032878Reel | CFPX-104 | 12.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL035484Reel | CFPX-104 | 12.0MHz | ±20ppm | ±30ppm | -10°C to 60°C | 20.00pF |
| LFXTAL036401Bulk | CFPX-104 | 12.0MHz | ±20ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL036401Reel | CFPX-104 | 12.0MHz | ±20ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL036584Bulk | CFPX-104 | 12.0MHz | ±10ppm | ±10ppm | -10°C to 60°C | 10.00pF |
| LFXTAL050518Cutt | CFPX-104 | 12.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL051048Bulk | CFPX-104 | 12.0MHz | ±30ppm | ±30ppm | -20°C to 70°C | 18.00pF |
| LFXTAL055999Reel | CFPX-104 | 12.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL057514Bulk | CFPX-104 | 12.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL057514Cutt | CFPX-104 | 12.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL058139Bulk | CFPX-104 | 12.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 15.00pF |
| LFXTAL058743Bulk | CFPX-104 | 12.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 18.00pF |
| LFXTAL059522Bulk | CFPX-104 | 12.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059522Reel | CFPX-104 | 12.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL061632Bulk | CFPX-104 | 12.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL061632Cutt | CFPX-104 | 12.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL062512Bulk | CFPX-104 | 12.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL062512Cutt | CFPX-104 | 12.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL063061Bulk | CFPX-104 | 12.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 16.00pF |
| LFXTAL063500Bulk | CFPX-104 | 12.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL078871Cutt | CFPX-104 | 12.0MHz | ±30ppm | ±30ppm | -20°C to 70°C | 20.00pF |
| LFXTAL080790Cutt | CFPX-104 | 12.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 18.00pF |
| LFXTAL059523Bulk | CFPX-104 | 12.288MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059523Reel | CFPX-104 | 12.288MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL056556Cutt | CFPX-104 | 12.5MHz | ±50ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL056556Reel | CFPX-104 | 12.5MHz | ±50ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059477Reel | CFPX-104 | 12.8MHz | ±10ppm | ±20ppm | -40°C to 85°C | 15.00pF |
| LFXTAL053614Reel | CFPX-104 | 13.0MHz | ±20ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL066473Bulk | CFPX-104 | 13.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL080835Bulk | CFPX-104 | 13.56MHz | ±50ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL033643Bulk | CFPX-104 | 14.31818MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033643Reel | CFPX-104 | 14.31818MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL059526Bulk | CFPX-104 | 14.31818MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059526Reel | CFPX-104 | 14.31818MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL033328Bulk | CFPX-104 | 14.7456MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033328Cutt | CFPX-104 | 14.7456MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033328Reel | CFPX-104 | 14.7456MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL072403Bulk | CFPX-104 | 14.7456MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL072403Reel | CFPX-104 | 14.7456MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083467Cutt | CFPX-104 | 14.7456MHz | ±20ppm | ±20ppm | -40°C to 85°C | 12.00pF |
| LFXTAL083467Reel | CFPX-104 | 14.7456MHz | ±20ppm | ±20ppm | -40°C to 85°C | 12.00pF |
| LFXTAL030819Bulk | CFPX-104 | 16.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL030819Reel | CFPX-104 | 16.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL035082Cutt | CFPX-104 | 16.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 10.00pF |
| LFXTAL050910Bulk | CFPX-104 | 16.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL050910Cutt | CFPX-104 | 16.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL057849Bulk | CFPX-104 | 16.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL059527Bulk | CFPX-104 | 16.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL061636Bulk | CFPX-104 | 16.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL059528Bulk | CFPX-104 | 16.384MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059528Reel | CFPX-104 | 16.384MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059529Bulk | CFPX-104 | 18.432MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059529Reel | CFPX-104 | 18.432MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL033265Bulk | CFPX-104 | 20.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033265Cutt | CFPX-104 | 20.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033265Reel | CFPX-104 | 20.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL056808Bulk | CFPX-104 | 20.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL056808Reel | CFPX-104 | 20.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL060218Bulk | CFPX-104 | 20.0MHz | ±10ppm | ±10ppm | -10°C to 60°C | 10.00pF |
| LFXTAL061045Bulk | CFPX-104 | 20.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL061639Cutt | CFPX-104 | 20.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL065376Cutt | CFPX-104 | 22.5792MHz | ±10ppm | ±10ppm | -10°C to 60°C | 10.00pF |
| LFXTAL032817Bulk | CFPX-104 | 24.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL032817Cutt | CFPX-104 | 24.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL032817Reel | CFPX-104 | 24.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL051735Bulk | CFPX-104 | 24.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL053798Reel | CFPX-104 | 24.0MHz | ±10ppm | ±25ppm | -40°C to 85°C | 18.00pF |
| LFXTAL058856Bulk | CFPX-104 | 24.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059530Bulk | CFPX-104 | 24.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059530Reel | CFPX-104 | 24.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059693Reel | CFPX-104 | 24.0MHz | ±10ppm | ±10ppm | -10°C to 60°C | 10.00pF |
| LFXTAL061087Bulk | CFPX-104 | 24.0MHz | ±30ppm | ±30ppm | -20°C to 70°C | 18.00pF |
| LFXTAL063939Bulk | CFPX-104 | 24.0MHz | ±30ppm | ±30ppm | -20°C to 70°C | 8.00pF |
| LFXTAL071469Bulk | CFPX-104 | 24.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL071469Reel | CFPX-104 | 24.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL033644Bulk | CFPX-104 | 24.576MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033644Reel | CFPX-104 | 24.576MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL059531Bulk | CFPX-104 | 24.576MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059531Reel | CFPX-104 | 24.576MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL033075Bulk | CFPX-104 | 25.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033075Cutt | CFPX-104 | 25.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033075Reel | CFPX-104 | 25.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL051737Bulk | CFPX-104 | 25.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL055172Bulk | CFPX-104 | 25.0MHz | ±20ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL057895Bulk | CFPX-104 | 25.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 15.00pF |
| LFXTAL058401Bulk | CFPX-104 | 25.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059532Bulk | CFPX-104 | 25.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059532Reel | CFPX-104 | 25.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL061642Cutt | CFPX-104 | 25.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL083060Cutt | CFPX-104 | 25.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 30.00pF |
| LFXTAL035240Reel | CFPX-104 | 26.0MHz | ±10ppm | ±10ppm | -10°C to 60°C | 16.00pF |
| LFXTAL064726Bulk | CFPX-104 | 26.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL072404Bulk | CFPX-104 | 26.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL072404Reel | CFPX-104 | 26.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL052412Cutt | CFPX-104 | 27.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL059697Bulk | CFPX-104 | 27.0MHz | ±10ppm | ±10ppm | -10°C to 60°C | 10.00pF |
| LFXTAL063478Bulk | CFPX-104 | 27.12MHz | ±30ppm | ±30ppm | -20°C to 70°C | 18.00pF |
| LFXTAL055896Bulk | CFPX-104 | 28.6363MHz | ±20ppm | ±20ppm | -20°C to 70°C | 18.00pF |
| LFXTAL059487Bulk | CFPX-104 | 28.63636MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL030820Bulk | CFPX-104 | 30.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL030820Reel | CFPX-104 | 30.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL063464Cutt | CFPX-104 | 30.0MHz | ±30ppm | ±30ppm | -20°C to 70°C | 18.00pF |
| LFXTAL065460Reel | CFPX-104 | 30.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL054902Bulk | CFPX-104 | 32.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 12.00pF |
| LFXTAL059535Bulk | CFPX-104 | 32.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059535Reel | CFPX-104 | 32.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL033645Bulk | CFPX-104 | 40.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033645Reel | CFPX-104 | 40.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL059537Bulk | CFPX-104 | 40.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059537Reel | CFPX-104 | 40.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059539Bulk | CFPX-104 | 48.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL059539Reel | CFPX-104 | 48.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL063491Cutt | CFPX-104 | 48.0MHz | ±30ppm | ±30ppm | -20°C to 70°C | 18.00pF |
| LFXTAL023899Bulk | 87SMX | 3.6864MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023899Cutt | 87SMX | 3.6864MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023899Reel | 87SMX | 3.6864MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL052142Bulk | 87SMX | 3.6864MHz | ±50ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL052142Reel | 87SMX | 3.6864MHz | ±50ppm | ±50ppm | -20°C to 70°C | 16.00pF |
| LFXTAL056684Bulk | 87SMX | 3.6864MHz | ±50ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL056684Reel | 87SMX | 3.6864MHz | ±50ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL073137Reel | 87SMX | 3.6864MHz | ±50ppm | ±50ppm | -40°C to 85°C | 30.00pF |
| LFXTAL073293Cutt | 87SMX | 3.6864MHz | ±100ppm | ±150ppm | -40°C to 90°C | 16.00pF |
| LFXTAL022544Reel | 87SMX | 4.0MHz | ±50ppm | ±100ppm | -40°C to 90°C | 30.00pF |
| LFXTAL029774Bulk | 87SMX | 4.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL029774Cutt | 87SMX | 4.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL029774Reel | 87SMX | 4.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL057771Cutt | 87SMX | 4.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL057801Reel | 87SMX | 4.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 20.00pF |
| LFXTAL058357Bulk | 87SMX | 4.0MHz | ±15ppm | ±100ppm | -55°C to 105°C | 30.00pF |
| LFXTAL058357Cutt | 87SMX | 4.0MHz | ±15ppm | ±100ppm | -55°C to 105°C | 30.00pF |
| LFXTAL058357Reel | 87SMX | 4.0MHz | ±15ppm | ±100ppm | -55°C to 105°C | 30.00pF |
| LFXTAL073195Reel | 87SMX | 4.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 15.00pF |
| LFXTAL073201Cutt | 87SMX | 4.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL073239Bulk | 87SMX | 4.0MHz | ±30ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL073239Reel | 87SMX | 4.0MHz | ±30ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL073445Reel | 87SMX | 4.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL076128Reel | 87SMX | 4.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 18.00pF |
| LFXTAL077252Cutt | 87SMX | 4.0MHz | ±50ppm | ±50ppm | -20°C to 70°C | 30.00pF |
| LFXTAL083532Cutt | 87SMX | 4.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL083532Reel | 87SMX | 4.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL083563Reel | 87SMX | 4.0MHz | ±30ppm | ±50ppm | -10°C to 60°C | 16.00pF |
| LFXTAL073237Cutt | 87SMX | 4.096MHz | ±100ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL023399Bulk | 87SMX | 4.9152MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023399Cutt | 87SMX | 4.9152MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023399Reel | 87SMX | 4.9152MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL073191Cutt | 87SMX | 4.9152MHz | ±50ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL032749Reel | 87SMX | 6.0MHz | ±20ppm | ±30ppm | -40°C to 85°C | 30.00pF |
| LFXTAL037119Bulk | 87SMX | 6.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL037119Reel | 87SMX | 6.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL083533Reel | 87SMX | 6.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL083535Cutt | 87SMX | 6.144MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083535Reel | 87SMX | 6.144MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL023628Bulk | 87SMX | 7.3728MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023628Reel | 87SMX | 7.3728MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL065699Cutt | 87SMX | 7.902708MHz | ±100ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL065699Reel | 87SMX | 7.902708MHz | ±100ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL023401Bulk | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023401Cutt | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023401Reel | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL056525Bulk | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL059455Cutt | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL059455Reel | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL076060Reel | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | SR |
| LFXTAL083499Reel | 87SMX | 8.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083528Cutt | 87SMX | 8.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083528Reel | 87SMX | 8.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL033471Reel | 87SMX | 8.192MHz | ±30ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033867Bulk | 87SMX | 9.8304MHz | ±30ppm | ±50ppm | -20°C to 70°C | 18.00pF |
| LFXTAL083498Reel | 87SMX | 9.8304MHz | ±50ppm | ±100ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083529Cutt | 87SMX | 9.8304MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083529Reel | 87SMX | 9.8304MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL023561Cutt | 87SMX | 10.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL023561Reel | 87SMX | 10.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL073675Reel | 87SMX | 10.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL083536Cutt | 87SMX | 10.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL023372Cutt | 87SMX | 11.0592MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL023372Reel | 87SMX | 11.0592MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL023524Reel | 87SMX | 11.0592MHz | ±50ppm | ±100ppm | -20°C to 70°C | 30.00pF |
| LFXTAL076416Reel | 87SMX | 11.0592MHz | ±50ppm | ±50ppm | -40°C to 85°C | 10.00pF |
| LFXTAL083537Cutt | 87SMX | 11.0592MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083537Reel | 87SMX | 11.0592MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL050029Reel | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 20.00pF |
| LFXTAL056949Bulk | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL056949Cutt | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL056949Reel | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL072590Cutt | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL072591Reel | 87SMX | 12.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 16.00pF |
| LFXTAL075188Bulk | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL075188Reel | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL077403Cutt | 87SMX | 12.0MHz | ±10ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL083497Reel | 87SMX | 12.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083530Reel | 87SMX | 12.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL060787Cutt | 87SMX | 14.7456MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL060787Reel | 87SMX | 14.7456MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL023688Cutt | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL032756Reel | 87SMX | 16.0MHz | ±50ppm | ±50ppm | -10°C to 60°C | 18.00pF |
| LFXTAL033689Reel | 87SMX | 16.0MHz | ±30ppm | ±50ppm | -20°C to 70°C | SR |
| LFXTAL050025Reel | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 30.00pF |
| LFXTAL052725Bulk | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | SR |
| LFXTAL052725Cutt | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | SR |
| LFXTAL052725Reel | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | SR |
| LFXTAL058519Cutt | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 20.00pF |
| LFXTAL058519Reel | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 20.00pF |
| LFXTAL067749Bulk | 87SMX | 16.0MHz | ±30ppm | ±50ppm | -40°C to 85°C | 30.00pF |
| LFXTAL073118Cutt | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL073118Reel | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL083496Reel | 87SMX | 16.0MHz | ±50ppm | ±100ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083531Cutt | 87SMX | 16.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083531Reel | 87SMX | 16.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL023496Bulk | 87SMX | 18.432MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL023496Cutt | 87SMX | 18.432MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL023496Reel | 87SMX | 18.432MHz | ±50ppm | ±100ppm | -20°C to 70°C | 20.00pF |
| LFXTAL083539Cutt | 87SMX | 19.6608MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL055924Bulk | 87SMX | 20.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL055924Cutt | 87SMX | 20.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL055924Reel | 87SMX | 20.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL083625Cutt | 87SMX | 20.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083625Reel | 87SMX | 20.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL072723Cutt | 87SMX | 22.1184MHz | ±50ppm | ±100ppm | -40°C to 85°C | 16.00pF |
| LFXTAL083534Cutt | 87SMX | 22.1184MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL083534Reel | 87SMX | 22.1184MHz | ±30ppm | ±30ppm | -40°C to 85°C | 18.00pF |
| LFXTAL058564Reel | 87SMX | 24.0MHz | ±50ppm | ±100ppm | -20°C to 70°C | 16.00pF |
| LFXTAL065724Cutt | 87SMX | 25.0MHz | ±50ppm | ±100ppm | -10°C to 60°C | 16.00pF |
SEIKO晶振,石英晶振,SC-32T晶振
爱普生晶振,石英晶振,贴片晶振,FC-12D晶振,32.768K四脚贴片晶振,FC-12D 32.7680KA-AG8
爱普生晶振,石英晶振,贴片晶振,MC-30A晶振,Q13MC30A2000800晶振
KDS晶振,石英晶振,贴片晶振,DSX321SH晶振
KDS晶振,石英晶振,贴片晶振,DSX530GA晶振
KDS晶振,石英晶振,贴片晶振,DSX1612SL晶振
KDS晶振,石英晶振,贴片晶振,DST520晶振
爱普生晶振,石英晶振,贴片晶振,MC-146晶振,Q13MC1462000200晶振
D32G-026.0M-T,3225mm,ConnorWinfield温补晶体振荡器
WC146SMF-32.768KHZ-T,Mmdcomp时钟晶振,7015mm谐振器
