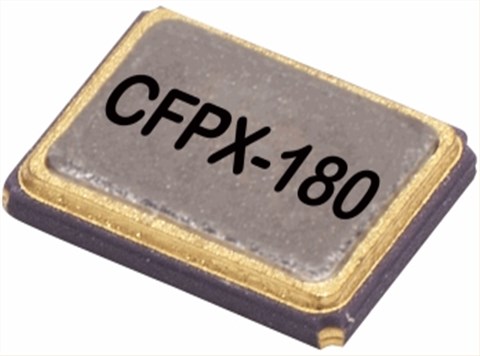

IQD晶振|CFPX-180|LFXTAL065272RL3K|3225进口晶振

IQD晶振|CFPX-180|LFXTAL065272RL3K|3225进口晶振IQD晶振|CFPX-180|LFXTAL065272RL3K|3225进口晶振

产品简介

IQD晶振|CFPX-180|LFXTAL065272RL3K|3225进口晶振,英国晶振品牌,IQD晶振,CFPX-180无源晶振,进口晶振,LFXTAL065272RL3K晶振,石英晶体谐振器,SMD晶振,3225mm晶振,四脚贴片晶振,频率32.768MHz,负载20pF,频率容差50ppm,工作温度-40~85°C,小体积晶振,高品质晶振,无铅环保晶振,智能手机晶振,笔记本电脑晶振,USB设备晶振,移动应用晶振.

产品详情

TH-1 890

Ja-1IQD晶振|CFPX-180|LFXTAL065272RL3K|3225进口晶振,英国晶振品牌,IQD晶振,CFPX-180无源晶振,进口晶振,LFXTAL065272RL3K晶振,石英晶体谐振器,SMD晶振,3225mm晶振,四脚贴片晶振,频率32.768MHz,负载20pF,频率容差50ppm,工作温度-40~85°C,小体积晶振,高品质晶振,无铅环保晶振,智能手机晶振,笔记本电脑晶振,USB设备晶振,移动应用晶振.

IQD晶振|CFPX-180|LFXTAL065272RL3K|3225进口晶振特点:

-标准的3.2x2.5mm贴片晶体与四个衬垫

-陶瓷包装有接缝密封的金属盖,密封

TH-2 890

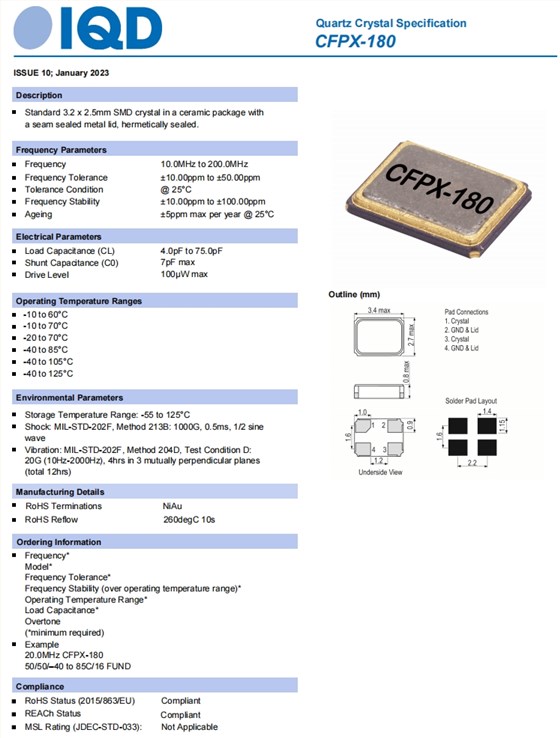

TH--TC2IQD晶振|CFPX-180|LFXTAL065272RL3K|3225进口晶振规格表

参数 数值
频率 32.768 MHz
频率容差@ 25°C ± 3°C ±50 ppm
频率稳定性 ±50 ppm
工作温度 -40~85°C
储存温度 -55~125°C
负载 20 pF
并联电容 7pFtyp
驱动电平 100µWmax.
老化@ 25°C ± 3°C
±5.0ppm peryearmax
TH-3 890

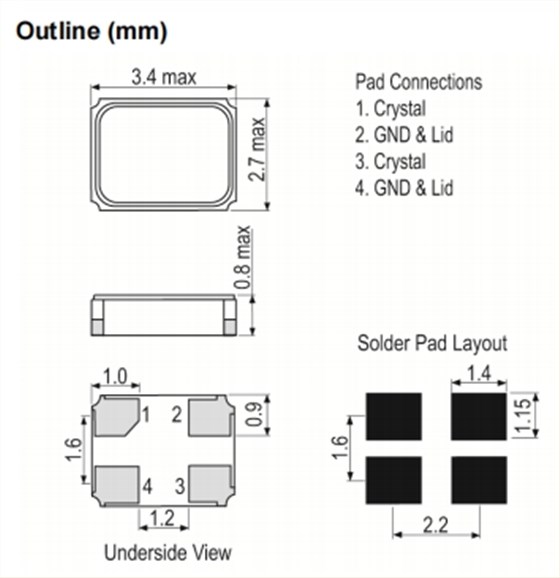

TH--WHP1IQD晶振|CFPX-180|LFXTAL065272RL3K|3225进口晶振尺寸图

CFPX-180-1

CFPX-180

编码 型号 频率 频率容差 频率稳定性 工作温度 负载
LFXTAL065272RL3K CFPX-180 32.768MHz ±50ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL088666RL3K CFPX-180 32.768MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL059672Cutt CFPX-180 36.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL075445RL3K CFPX-180 38.4MHz ±10ppm ±10ppm -20°C to 75°C 8.50pF
LFXTAL076107RL3K CFPX-180 38.4MHz ±30ppm ±50ppm -40°C to 85°C 15.00pF
LFXTAL082763RL3K CFPX-180 38.4MHz ±30ppm ±30ppm -20°C to 70°C 9.00pF
LFXTAL083279Cutt CFPX-180 38.4MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL035270Bulk CFPX-180 40.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL035270Cutt CFPX-180 40.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL059648Cutt CFPX-180 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059648Reel CFPX-180 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059648RL3K CFPX-180 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL076900Cutt CFPX-180 40.0MHz ±10ppm ±10ppm -20°C to 75°C 9.00pF
LFXTAL082077RL3K CFPX-180 40.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL054093Cutt CFPX-180 41.0MHz ±50ppm ±50ppm -10°C to 60°C 10.50pF
LFXTAL069379Cutt CFPX-180 44.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL009549Bulk CFPX-180 48.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL053866Cutt CFPX-180 48.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL053866RL3K CFPX-180 48.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055570Cutt CFPX-180 48.0MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL062288RL3K CFPX-180 48.0MHz ±30ppm ±30ppm -10°C to 60°C 18.00pF
LFXTAL071958Cutt CFPX-180 48.0MHz ±30ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL079244Cutt CFPX-180 48.0MHz ±15ppm ±25ppm -40°C to 85°C 8.00pF
LFXTAL080495RL3K CFPX-180 48.0MHz ±50ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL080873RL3K CFPX-180 48.0MHz ±30ppm ±50ppm -20°C to 70°C 10.00pF
LFXTAL082068RL3K CFPX-180 48.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL083249Cutt CFPX-180 48.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL084993RL3K CFPX-180 48.0MHz ±20ppm ±20ppm -20°C to 70°C 18.00pF
LFXTAL090184RL3K CFPX-180 48.0MHz ±10ppm ±20ppm -20°C to 70°C 20.00pF
LFXTAL060843Cutt CFPX-180 50.0MHz ±25ppm ±25ppm -20°C to 70°C 10.00pF
LFXTAL060843Reel CFPX-180 50.0MHz ±25ppm ±25ppm -20°C to 70°C 10.00pF
LFXTAL060843RL3K CFPX-180 50.0MHz ±25ppm ±25ppm -20°C to 70°C 10.00pF
LFXTAL069349Cutt CFPX-180 50.0MHz ±20ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL072787Cutt CFPX-180 50.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL072787RL3K CFPX-180 50.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL082006Cutt CFPX-180 50.0MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL082006RL3K CFPX-180 50.0MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL082078Cutt CFPX-180 50.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082078Reel CFPX-180 50.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082078RL3K CFPX-180 50.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082568RL3K CFPX-180 50.0MHz ±10ppm ±15ppm -40°C to 85°C 12.00pF
LFXTAL082637RL3K CFPX-180 50.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL083481RL3K CFPX-180 50.0MHz ±20ppm ±20ppm -40°C to 85°C 16.00pF
LFXTAL062546Cutt CFPX-180 54.0MHz ±15ppm ±20ppm -20°C to 70°C 19.00pF
LFXTAL062546RL3K CFPX-180 54.0MHz ±15ppm ±20ppm -20°C to 70°C 19.00pF
LFXTAL083943Cutt CFPX-180 200.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL053050Cutt CFPX-104 8.0MHz ±30ppm ±30ppm -20°C to 70°C 12.00pF
LFXTAL054323Bulk CFPX-104 8.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL054323Cutt CFPX-104 8.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL054323Reel CFPX-104 8.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055663Bulk CFPX-104 8.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055663Cutt CFPX-104 8.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055663Reel CFPX-104 8.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055901Cutt CFPX-104 8.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL055901Reel CFPX-104 8.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL057013Bulk CFPX-104 8.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL059158Bulk CFPX-104 8.0MHz ±30ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL059158Cutt CFPX-104 8.0MHz ±30ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL061627Cutt CFPX-104 8.0MHz ±20ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL063177Cutt CFPX-104 8.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL063189Bulk CFPX-104 8.0MHz ±10ppm ±20ppm -40°C to 85°C 15.00pF
LFXTAL065886Cutt CFPX-104 8.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL066685Bulk CFPX-104 8.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069277Bulk CFPX-104 8.0MHz ±20ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL070720Cutt CFPX-104 8.0MHz ±20ppm ±20ppm -40°C to 85°C 20.00pF
LFXTAL070722Bulk CFPX-104 8.0MHz ±20ppm ±20ppm -40°C to 85°C 30.00pF
LFXTAL078127Cutt CFPX-104 8.0MHz ±20ppm ±20ppm -20°C to 70°C 12.00pF
LFXTAL078323Cutt CFPX-104 8.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL081233Bulk CFPX-104 8.0MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL061486Bulk CFPX-104 8.192MHz ±30ppm ±50ppm -40°C to 85°C 10.00pF
LFXTAL061486Cutt CFPX-104 8.192MHz ±30ppm ±50ppm -40°C to 85°C 10.00pF
LFXTAL061486Reel CFPX-104 8.192MHz ±30ppm ±50ppm -40°C to 85°C 10.00pF
LFXTAL075997Reel CFPX-104 9.9MHz ±40ppm ±60ppm -40°C to 125°C 12.00pF
LFXTAL056583Reel CFPX-104 10.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL072402Cutt CFPX-104 10.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL072402Reel CFPX-104 10.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL058513Bulk CFPX-104 11.0592MHz ±30ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL060205Bulk CFPX-104 11.0592MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL032878Bulk CFPX-104 12.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL032878Cutt CFPX-104 12.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL032878Reel CFPX-104 12.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL035484Reel CFPX-104 12.0MHz ±20ppm ±30ppm -10°C to 60°C 20.00pF
LFXTAL036401Bulk CFPX-104 12.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL036401Reel CFPX-104 12.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL036584Bulk CFPX-104 12.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL050518Cutt CFPX-104 12.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL051048Bulk CFPX-104 12.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL055999Reel CFPX-104 12.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL057514Bulk CFPX-104 12.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL057514Cutt CFPX-104 12.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL058139Bulk CFPX-104 12.0MHz ±30ppm ±50ppm -40°C to 85°C 15.00pF
LFXTAL058743Bulk CFPX-104 12.0MHz ±10ppm ±10ppm -20°C to 70°C 18.00pF
LFXTAL059522Bulk CFPX-104 12.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059522Reel CFPX-104 12.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL061632Bulk CFPX-104 12.0MHz ±20ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL061632Cutt CFPX-104 12.0MHz ±20ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL062512Bulk CFPX-104 12.0MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL062512Cutt CFPX-104 12.0MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL063061Bulk CFPX-104 12.0MHz ±10ppm ±20ppm -40°C to 85°C 16.00pF
LFXTAL063500Bulk CFPX-104 12.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL078871Cutt CFPX-104 12.0MHz ±30ppm ±30ppm -20°C to 70°C 20.00pF
LFXTAL080790Cutt CFPX-104 12.0MHz ±10ppm ±10ppm -20°C to 70°C 18.00pF
LFXTAL059523Bulk CFPX-104 12.288MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059523Reel CFPX-104 12.288MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL056556Cutt CFPX-104 12.5MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL056556Reel CFPX-104 12.5MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL059477Reel CFPX-104 12.8MHz ±10ppm ±20ppm -40°C to 85°C 15.00pF
LFXTAL053614Reel CFPX-104 13.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL066473Bulk CFPX-104 13.0MHz ±30ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL080835Bulk CFPX-104 13.56MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL033643Bulk CFPX-104 14.31818MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033643Reel CFPX-104 14.31818MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL059526Bulk CFPX-104 14.31818MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059526Reel CFPX-104 14.31818MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL033328Bulk CFPX-104 14.7456MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033328Cutt CFPX-104 14.7456MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033328Reel CFPX-104 14.7456MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL072403Bulk CFPX-104 14.7456MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL072403Reel CFPX-104 14.7456MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083467Cutt CFPX-104 14.7456MHz ±20ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL083467Reel CFPX-104 14.7456MHz ±20ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL030819Bulk CFPX-104 16.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL030819Reel CFPX-104 16.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL035082Cutt CFPX-104 16.0MHz ±50ppm ±50ppm -40°C to 85°C 10.00pF
LFXTAL050910Bulk CFPX-104 16.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL050910Cutt CFPX-104 16.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL057849Bulk CFPX-104 16.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059527Bulk CFPX-104 16.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL061636Bulk CFPX-104 16.0MHz ±20ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL059528Bulk CFPX-104 16.384MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059528Reel CFPX-104 16.384MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059529Bulk CFPX-104 18.432MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059529Reel CFPX-104 18.432MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL033265Bulk CFPX-104 20.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033265Cutt CFPX-104 20.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033265Reel CFPX-104 20.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL056808Bulk CFPX-104 20.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL056808Reel CFPX-104 20.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL060218Bulk CFPX-104 20.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL061045Bulk CFPX-104 20.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL061639Cutt CFPX-104 20.0MHz ±20ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL065376Cutt CFPX-104 22.5792MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL032817Bulk CFPX-104 24.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL032817Cutt CFPX-104 24.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL032817Reel CFPX-104 24.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL051735Bulk CFPX-104 24.0MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL053798Reel CFPX-104 24.0MHz ±10ppm ±25ppm -40°C to 85°C 18.00pF
LFXTAL058856Bulk CFPX-104 24.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL059530Bulk CFPX-104 24.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059530Reel CFPX-104 24.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059693Reel CFPX-104 24.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL061087Bulk CFPX-104 24.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL063939Bulk CFPX-104 24.0MHz ±30ppm ±30ppm -20°C to 70°C 8.00pF
LFXTAL071469Bulk CFPX-104 24.0MHz ±30ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL071469Reel CFPX-104 24.0MHz ±30ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL033644Bulk CFPX-104 24.576MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033644Reel CFPX-104 24.576MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL059531Bulk CFPX-104 24.576MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059531Reel CFPX-104 24.576MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL033075Bulk CFPX-104 25.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033075Cutt CFPX-104 25.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033075Reel CFPX-104 25.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL051737Bulk CFPX-104 25.0MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL055172Bulk CFPX-104 25.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL057895Bulk CFPX-104 25.0MHz ±30ppm ±50ppm -40°C to 85°C 15.00pF
LFXTAL058401Bulk CFPX-104 25.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL059532Bulk CFPX-104 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059532Reel CFPX-104 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL061642Cutt CFPX-104 25.0MHz ±20ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL083060Cutt CFPX-104 25.0MHz ±50ppm ±50ppm -40°C to 85°C 30.00pF
LFXTAL035240Reel CFPX-104 26.0MHz ±10ppm ±10ppm -10°C to 60°C 16.00pF
LFXTAL064726Bulk CFPX-104 26.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072404Bulk CFPX-104 26.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL072404Reel CFPX-104 26.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL052412Cutt CFPX-104 27.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL059697Bulk CFPX-104 27.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL063478Bulk CFPX-104 27.12MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL055896Bulk CFPX-104 28.6363MHz ±20ppm ±20ppm -20°C to 70°C 18.00pF
LFXTAL059487Bulk CFPX-104 28.63636MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL030820Bulk CFPX-104 30.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL030820Reel CFPX-104 30.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL063464Cutt CFPX-104 30.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL065460Reel CFPX-104 30.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL054902Bulk CFPX-104 32.0MHz ±10ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL059535Bulk CFPX-104 32.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059535Reel CFPX-104 32.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL033645Bulk CFPX-104 40.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033645Reel CFPX-104 40.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL059537Bulk CFPX-104 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059537Reel CFPX-104 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059539Bulk CFPX-104 48.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059539Reel CFPX-104 48.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL063491Cutt CFPX-104 48.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL023899Bulk 87SMX 3.6864MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023899Cutt 87SMX 3.6864MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023899Reel 87SMX 3.6864MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL052142Bulk 87SMX 3.6864MHz ±50ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL052142Reel 87SMX 3.6864MHz ±50ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL056684Bulk 87SMX 3.6864MHz ±50ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL056684Reel 87SMX 3.6864MHz ±50ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL073137Reel 87SMX 3.6864MHz ±50ppm ±50ppm -40°C to 85°C 30.00pF
LFXTAL073293Cutt 87SMX 3.6864MHz ±100ppm ±150ppm -40°C to 90°C 16.00pF
LFXTAL022544Reel 87SMX 4.0MHz ±50ppm ±100ppm -40°C to 90°C 30.00pF
LFXTAL029774Bulk 87SMX 4.0MHz ±50ppm ±100ppm -20°C to 70°C 30.00pF
LFXTAL029774Cutt 87SMX 4.0MHz ±50ppm ±100ppm -20°C to 70°C 30.00pF
LFXTAL029774Reel 87SMX 4.0MHz ±50ppm ±100ppm -20°C to 70°C 30.00pF
LFXTAL057771Cutt 87SMX 4.0MHz ±50ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL057801Reel 87SMX 4.0MHz ±30ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL058357Bulk 87SMX 4.0MHz ±15ppm ±100ppm -55°C to 105°C 30.00pF
LFXTAL058357Cutt 87SMX 4.0MHz ±15ppm ±100ppm -55°C to 105°C 30.00pF
LFXTAL058357Reel 87SMX 4.0MHz ±15ppm ±100ppm -55°C to 105°C 30.00pF
LFXTAL073195Reel 87SMX 4.0MHz ±50ppm ±50ppm -40°C to 85°C 15.00pF
LFXTAL073201Cutt 87SMX 4.0MHz ±50ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL073239Bulk 87SMX 4.0MHz ±30ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL073239Reel 87SMX 4.0MHz ±30ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL073445Reel 87SMX 4.0MHz ±30ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL076128Reel 87SMX 4.0MHz ±50ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL077252Cutt 87SMX 4.0MHz ±50ppm ±50ppm -20°C to 70°C 30.00pF
LFXTAL083532Cutt 87SMX 4.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL083532Reel 87SMX 4.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL083563Reel 87SMX 4.0MHz ±30ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL073237Cutt 87SMX 4.096MHz ±100ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL023399Bulk 87SMX 4.9152MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023399Cutt 87SMX 4.9152MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023399Reel 87SMX 4.9152MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL073191Cutt 87SMX 4.9152MHz ±50ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL032749Reel 87SMX 6.0MHz ±20ppm ±30ppm -40°C to 85°C 30.00pF
LFXTAL037119Bulk 87SMX 6.0MHz ±50ppm ±100ppm -20°C to 70°C 30.00pF
LFXTAL037119Reel 87SMX 6.0MHz ±50ppm ±100ppm -20°C to 70°C 30.00pF
LFXTAL083533Reel 87SMX 6.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL083535Cutt 87SMX 6.144MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083535Reel 87SMX 6.144MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL023628Bulk 87SMX 7.3728MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023628Reel 87SMX 7.3728MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL065699Cutt 87SMX 7.902708MHz ±100ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL065699Reel 87SMX 7.902708MHz ±100ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL023401Bulk 87SMX 8.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023401Cutt 87SMX 8.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023401Reel 87SMX 8.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL056525Bulk 87SMX 8.0MHz ±50ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL059455Cutt 87SMX 8.0MHz ±50ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL059455Reel 87SMX 8.0MHz ±50ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL076060Reel 87SMX 8.0MHz ±50ppm ±100ppm -20°C to 70°C SR
LFXTAL083499Reel 87SMX 8.0MHz ±50ppm ±100ppm -40°C to 85°C 18.00pF
LFXTAL083528Cutt 87SMX 8.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083528Reel 87SMX 8.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL033471Reel 87SMX 8.192MHz ±30ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033867Bulk 87SMX 9.8304MHz ±30ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL083498Reel 87SMX 9.8304MHz ±50ppm ±100ppm -40°C to 85°C 18.00pF
LFXTAL083529Cutt 87SMX 9.8304MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083529Reel 87SMX 9.8304MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL023561Cutt 87SMX 10.0MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL023561Reel 87SMX 10.0MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL073675Reel 87SMX 10.0MHz ±30ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL083536Cutt 87SMX 10.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL023372Cutt 87SMX 11.0592MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL023372Reel 87SMX 11.0592MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL023524Reel 87SMX 11.0592MHz ±50ppm ±100ppm -20°C to 70°C 30.00pF
LFXTAL076416Reel 87SMX 11.0592MHz ±50ppm ±50ppm -40°C to 85°C 10.00pF
LFXTAL083537Cutt 87SMX 11.0592MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083537Reel 87SMX 11.0592MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL050029Reel 87SMX 12.0MHz ±50ppm ±100ppm -40°C to 85°C 20.00pF
LFXTAL056949Bulk 87SMX 12.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL056949Cutt 87SMX 12.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL056949Reel 87SMX 12.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL072590Cutt 87SMX 12.0MHz ±50ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL072591Reel 87SMX 12.0MHz ±50ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL075188Bulk 87SMX 12.0MHz ±50ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL075188Reel 87SMX 12.0MHz ±50ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL077403Cutt 87SMX 12.0MHz ±10ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL083497Reel 87SMX 12.0MHz ±50ppm ±100ppm -40°C to 85°C 18.00pF
LFXTAL083530Reel 87SMX 12.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL060787Cutt 87SMX 14.7456MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL060787Reel 87SMX 14.7456MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL023688Cutt 87SMX 16.0MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL032756Reel 87SMX 16.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL033689Reel 87SMX 16.0MHz ±30ppm ±50ppm -20°C to 70°C SR
LFXTAL050025Reel 87SMX 16.0MHz ±50ppm ±100ppm -40°C to 85°C 30.00pF
LFXTAL052725Bulk 87SMX 16.0MHz ±50ppm ±100ppm -20°C to 70°C SR
LFXTAL052725Cutt 87SMX 16.0MHz ±50ppm ±100ppm -20°C to 70°C SR
LFXTAL052725Reel 87SMX 16.0MHz ±50ppm ±100ppm -20°C to 70°C SR
LFXTAL058519Cutt 87SMX 16.0MHz ±50ppm ±100ppm -40°C to 85°C 20.00pF
LFXTAL058519Reel 87SMX 16.0MHz ±50ppm ±100ppm -40°C to 85°C 20.00pF
LFXTAL067749Bulk 87SMX 16.0MHz ±30ppm ±50ppm -40°C to 85°C 30.00pF
LFXTAL073118Cutt 87SMX 16.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL073118Reel 87SMX 16.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL083496Reel 87SMX 16.0MHz ±50ppm ±100ppm -40°C to 85°C 18.00pF
LFXTAL083531Cutt 87SMX 16.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083531Reel 87SMX 16.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL023496Bulk 87SMX 18.432MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL023496Cutt 87SMX 18.432MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL023496Reel 87SMX 18.432MHz ±50ppm ±100ppm -20°C to 70°C 20.00pF
LFXTAL083539Cutt 87SMX 19.6608MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055924Bulk 87SMX 20.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL055924Cutt 87SMX 20.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL055924Reel 87SMX 20.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL083625Cutt 87SMX 20.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083625Reel 87SMX 20.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL072723Cutt 87SMX 22.1184MHz ±50ppm ±100ppm -40°C to 85°C 16.00pF
LFXTAL083534Cutt 87SMX 22.1184MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL083534Reel 87SMX 22.1184MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL058564Reel 87SMX 24.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL065724Cutt 87SMX 25.0MHz ±50ppm ±100ppm -10°C to 60°C 16.00pF
TH-6 890

我要下单

  • 姓名
  • 手机
  • 留言

返回顶部 返回头部

晶振快速通道

FAST TRACK
