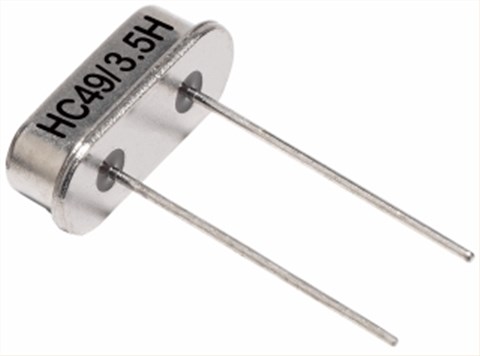

IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振

IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振

产品简介

IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振,IQD Crystal,HC-49/3.5H无源晶振,进口晶振,LFXTAL078424Bulk晶振,11.35×4.85mm晶振,49S插件晶振,石英晶振,二脚封装晶振,频率16MHz,负载20pF,频率容差30ppm,工作温度-10~70°C,行业标准铅封装,采用电阻焊接,在惰性气体中密封,引线上的玻璃与金属密封,无铅环保晶振,高稳定性晶振,无线路由器晶振,摄像头晶振,录音笔晶振,移动应用晶振.

产品详情

TH-1 890

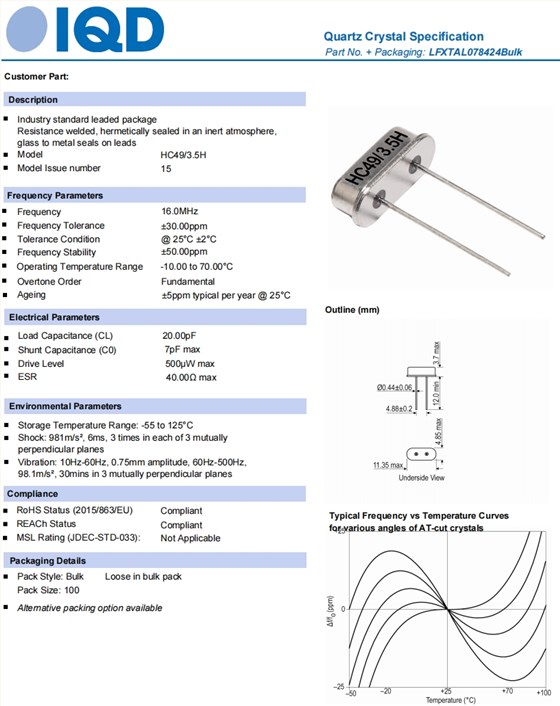

Ja-1IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振,IQD Crystal,HC-49/3.5H无源晶振,进口晶振,LFXTAL078424Bulk晶振,11.35×4.85mm晶振,49S插件晶振,石英晶振,二脚封装晶振,频率16MHz,负载20pF,频率容差30ppm,工作温度-10~70°C,行业标准铅封装,采用电阻焊接,在惰性气体中密封,引线上的玻璃与金属密封,无铅环保晶振,高稳定性晶振,无线路由器晶振,摄像头晶振,录音笔晶振,移动应用晶振.TH-2 890

TH--TC2IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振规格表

参数 数值
频率 16 MHz
频率容差@ 25°C ± 3°C ±30 ppm
频率稳定性 ±50 ppm
工作温度 -10~70°C
储存温度 -55~125°C
负载 20 pF
并联电容 7pFmax
驱动电平 500µWmax.
老化@ 25°C ± 3°C
±5 ppm typical peryear
TH-3 890

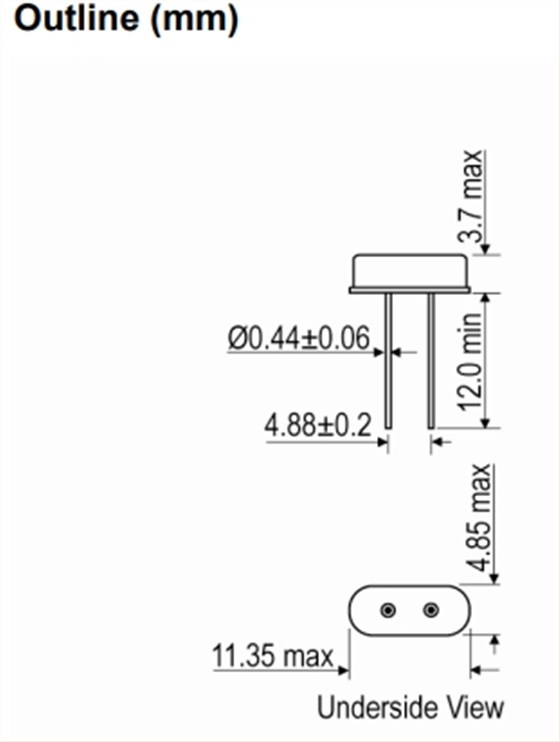

TH--WHP1IQD Crystal|HC-49/3.5H|LFXTAL078424Bulk|49S插件晶振尺寸图

HC-493.5H-1

HC-493.5H-2

编码 型号 频率 频率容差 频率稳定性 工作温度 负载
LFXTAL078520Bulk HC49/3.5H 3.6864MHz ±30ppm ±50ppm -10°C to 70°C 18.00pF
LFXTAL078430Bulk HC49/3.5H 4.0MHz ±30ppm ±50ppm -10°C to 70°C 20.00pF
LFXTAL083666Reel HC49/3.5H 4.0MHz ±30ppm ±30ppm -40°C to 105°C 30.00pF
LFXTAL083726Bulk HC49/3.5H 4.608MHz ±30ppm ±30ppm -20°C to 70°C 30.00pF
LFXTAL083450Reel HC49/3.5H 5.0MHz ±30ppm ±30ppm -20°C to 70°C 20.00pF
LFXTAL083386Reel HC49/3.5H 7.68MHz ±30ppm ±30ppm -20°C to 70°C 30.00pF
LFXTAL060602Reel HC49/3.5H 8.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL078427Bulk HC49/3.5H 8.0MHz ±30ppm ±50ppm -10°C to 70°C 18.00pF
LFXTAL078428Bulk HC49/3.5H 8.0MHz ±50ppm ±50ppm -10°C to 70°C 20.00pF
LFXTAL078431Bulk HC49/3.5H 8.0MHz ±30ppm ±100ppm -55°C to 125°C 20.00pF
LFXTAL078521Bulk HC49/3.5H 8.0MHz ±30ppm ±50ppm -10°C to 70°C 20.00pF
LFXTAL078570Bulk HC49/3.5H 10.0MHz ±30ppm ±50ppm -10°C to 70°C 18.00pF
LFXTAL078426Bulk HC49/3.5H 11.0592MHz ±30ppm ±50ppm -10°C to 70°C 30.00pF
LFXTAL078519Bulk HC49/3.5H 11.0592MHz ±30ppm ±50ppm -10°C to 70°C 20.00pF
LFXTAL078424Bulk HC49/3.5H 16.0MHz ±30ppm ±50ppm -10°C to 70°C 20.00pF
LFXTAL078432Bulk HC49/3.5H 16.0MHz ±50ppm ±50ppm -20°C to 70°C 20.00pF
LFXTAL083614Reel HC49/3.5H 16.0MHz ±30ppm ±30ppm -20°C to 70°C 20.00pF
LFXTAL080810Bulk HC49/3.5H 16.384MHz ±20ppm ±20ppm -20°C to 70°C 20.00pF
LFXTAL051945Reel HC49/3.5H 20.0MHz ±10ppm ±10ppm -10°C to 70°C 20.00pF
LFXTAL078433Bulk HC49/3.5H 20.0MHz ±30ppm ±50ppm -10°C to 70°C 20.00pF
LFXTAL078434Bulk HC49/3.5H 20.0MHz ±20ppm ±30ppm -10°C to 70°C 20.00pF
LFXTAL078435Bulk HC49/3.5H 20.0MHz ±30ppm ±50ppm -20°C to 70°C 20.00pF
LFXTAL058394Bulk HC49/3.5H 22.1184MHz ±30ppm ±50ppm -20°C to 70°C 20.00pF
LFXTAL078574Bulk HC49/3.5H 24.0MHz ±30ppm ±50ppm -10°C to 70°C 20.00pF
LFXTAL011429Bulk HC49 24.0MHz ±30ppm ±50ppm -20°C to 70°C 20.00pF
LFXTAL011543Bulk HC49 24.0MHz Inclusive ±50ppm -55°C to 105°C 30.00pF
LFXTAL015013Bulk HC49 24.0MHz ±20ppm ±20ppm -20°C to 70°C 20.00pF
LFXTAL032962Bulk HC49 24.0MHz ±30ppm ±50ppm -20°C to 70°C 12.00pF
LFXTAL060368Bulk HC49 24.0MHz ±20ppm ±100ppm -20°C to 70°C 18.00pF
LFXTAL083000Reel HC49 24.0MHz ±30ppm ±30ppm -20°C to 70°C 30.00pF
LFXTAL012803Bulk HC49 24.00014MHz ±15ppm ±30ppm 0°C to 50°C 18.00pF
LFXTAL003386Bulk HC49 24.576MHz ±20ppm ±50ppm -10°C to 60°C 30.00pF
LFXTAL003317Bulk HC49 25.0MHz ±20ppm ±50ppm -10°C to 60°C SR
LFXTAL062735Reel HC49 25.0MHz ±30ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL015108Bulk HC49 26.2144MHz ±20ppm ±20ppm -10°C to 60°C 30.00pF
LFXTAL078685Bulk HC49 26.2144MHz ±20ppm ±20ppm -20°C to 70°C 30.00pF
LFXTAL000159Bulk HC49 27.0MHz ±30ppm ±30ppm -10°C to 60°C 30.00pF
LFXTAL021628Bulk HC49 27.145MHz ±20ppm ±30ppm -10°C to 60°C 30.00pF
LFXTAL023173Bulk HC49 27.145MHz ±20ppm ±30ppm -10°C to 60°C 20.00pF
LFXTAL024566Bulk HC49 27.145MHz ±20ppm ±50ppm -20°C to 70°C SR
LFXTAL053009Bulk HC49 27.145MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL061210Bulk HC49 27.145MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL020607Bulk HC49 27.195MHz ±20ppm ±30ppm -10°C to 60°C 20.00pF
LFXTAL003342Bulk HC49 30.0MHz ±20ppm ±50ppm -10°C to 60°C SR
LFXTAL003248Bulk HC49 32.0MHz ±20ppm ±30ppm -10°C to 60°C SR
LFXTAL022196Bulk HC49 32.0MHz ±30ppm ±50ppm -20°C to 70°C 20.00pF
LFXTAL012482Bulk HC49 40.685MHz ±30ppm ±50ppm -10°C to 60°C 30.00pF
LFXTAL031247Bulk HC49 40.685MHz ±20ppm ±50ppm -20°C to 70°C 30.00pF
LFXTAL019521Bulk HC49 48.25MHz ±30ppm ±50ppm -10°C to 60°C 30.00pF
LFXTAL014208Bulk HC49 54.0MHz ±15ppm ±15ppm 0°C to 50°C SR
LFXTAL033804Reel HC49 54.0MHz ±15ppm ±30ppm -10°C to 60°C 10.00pF
LFXTAL030179Bulk HC49 59.9MHz ±30ppm ±50ppm -20°C to 70°C 20.00pF
LFXTAL003344Bulk HC49 60.0MHz ±20ppm ±30ppm -10°C to 60°C SR
LFXTAL030178Bulk HC49 60.0MHz ±30ppm ±50ppm -20°C to 70°C 20.00pF
LFXTAL028681Reel HC49 100.0MHz ±25ppm ±50ppm -40°C to 90°C 20.00pF
LFXTAL083238Bulk HC49 106.7778MHz ±10ppm ±20ppm -20°C to 70°C SR
LFXTAL079267Reel HC49/4HSMX 25.0MHz ±30ppm ±30ppm 0°C to 70°C 16.00pF
LFXTAL081323Reel HC49/4HSMX 25.0MHz ±22ppm ±25ppm -40°C to 85°C 30.00pF
LFXTAL084691Reel HC49/4HSMX 25.0MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL062157Reel HC49/4HSMX 26.0MHz ±10ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL036860Reel HC49/4HSMX 26.45125MHz ±25ppm ±30ppm -20°C to 70°C 10.00pF
LFXTAL053961Reel HC49/4HSMX 26.45125MHz ±25ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL078783Reel HC49/4HSMX 26.45125MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL027841Cutt HC49/4HSMX 27.0MHz ±30ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL029490Reel HC49/4HSMX 27.0MHz ±20ppm ±30ppm -20°C to 70°C 20.00pF
LFXTAL029819Reel HC49/4HSMX 27.0MHz ±20ppm ±30ppm -20°C to 70°C 30.00pF
LFXTAL033182Reel HC49/4HSMX 27.0MHz ±20ppm ±20ppm -20°C to 70°C 16.00pF
LFXTAL033532Reel HC49/4HSMX 27.0MHz ±15ppm ±15ppm 0°C to 50°C 18.00pF
LFXTAL034242Bulk HC49/4HSMX 27.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL034242Reel HC49/4HSMX 27.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL036222Reel HC49/4HSMX 27.0MHz ±30ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL054154Reel HC49/4HSMX 27.0MHz ±50ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL058489Reel HC49/4HSMX 27.0MHz ±30ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL059980Reel HC49/4HSMX 27.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL081957Reel HC49/4HSMX 27.0MHz ±20ppm ±50ppm -20°C to 70°C 20.00pF
LFXTAL084259Reel HC49/4HSMX 27.0MHz ±30ppm ±30ppm -40°C to 85°C 30.00pF
LFXTAL036706Reel HC49/4HSMX 27.12MHz ±30ppm ±50ppm -20°C to 70°C 20.00pF
LFXTAL032630Reel HC49/4HSMX 28.322MHz ±30ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL053491Reel HC49/4HSMX 28.63636MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL081958Reel HC49/4HSMX 28.636363MHz ±30ppm ±50ppm -40°C to 85°C 30.00pF
LFXTAL026916Bulk HC49/4HSMX 29.4912MHz ±30ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL033965Bulk HC49/4HSMX 29.4912MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL050764Bulk HC49/4HSMX 29.5MHz ±50ppm ±50ppm -10°C to 60°C 30.00pF
LFXTAL034099Bulk HC49/4HSMX 30.0MHz ±30ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL034099Reel HC49/4HSMX 30.0MHz ±30ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL036351Bulk HC49/4HSMX 30.0MHz ±20ppm ±20ppm -20°C to 70°C 20.00pF
LFXTAL036362Reel HC49/4HSMX 30.0MHz ±30ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL055269Reel HC49/4HSMX 30.0MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL057058Reel HC49/4HSMX 30.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL062542Reel HC49/4HSMX 30.0MHz ±30ppm ±30ppm -20°C to 70°C 16.00pF
LFXTAL066117Reel HC49/4HSMX 32.0MHz ±30ppm ±30ppm -10°C to 60°C 12.00pF
LFXTAL084234Reel HC49/4HSMX 32.0MHz ±30ppm ±50ppm -40°C to 85°C 16.00pF
LFXTAL035743Reel HC49/4HSMX 32.768MHz ±50ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL028788Bulk HC49/4HSMX 33.0MHz ±30ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL028788Reel HC49/4HSMX 33.0MHz ±30ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL035811Reel HC49/4HSMX 33.0MHz ±30ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL051893Bulk HC49/4HSMX 33.0MHz ±30ppm ±50ppm -10°C to 60°C 30.00pF
LFXTAL078208Reel HC49/4HSMX 34.4064MHz ±30ppm ±50ppm -40°C to 85°C 22.00pF
LFXTAL082922Reel HC49/4HSMX 35.328MHz ±50ppm ±50ppm -20°C to 70°C 20.00pF
LFXTAL036043Reel HC49/4HSMX 36.0MHz ±20ppm ±30ppm 0°C to 50°C 18.00pF
LFXTAL013925Bulk HC49/4HSMX 40.0MHz ±30ppm ±50ppm -20°C to 70°C SR
LFXTAL062239Reel HC49/4HSMX 50.0MHz ±30ppm ±30ppm -10°C to 60°C 18.00pF
LFXTAL034108Reel HC49/4HSMX 60.0MHz ±30ppm ±50ppm -20°C to 70°C SR
TH-6 890
