IQD进口晶振|IQXC-240|LFXTAL081314Reel|1210mm晶振规格表

参数	数值
频率	37.4 MHz
频率容差@ 25°C ± 3°C	±7 ppm
频率稳定性	±15 ppm
工作温度	-30~85°C
储存温度	-55~125°C
负载	5 pF
并联电容	7pFmax
驱动电平	100µWmax.
老化@ 25°C ± 3°C	±5 ppm typical peryear

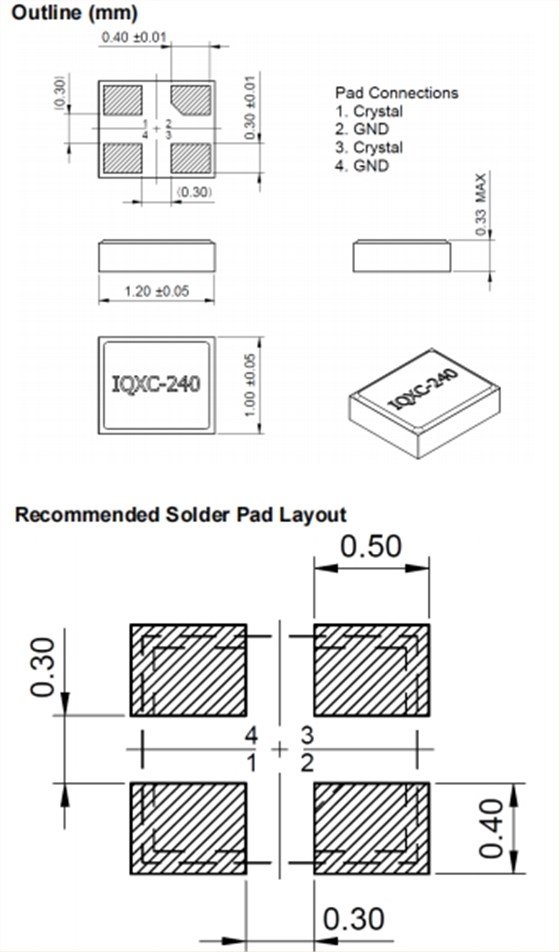

IQD进口晶振|IQXC-240|LFXTAL081314Reel|1210mm晶振尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL081314Reel	IQXC-240	37.4MHz	±7ppm	±15ppm	-30°C to 85°C	5.00pF
LFXTAL081316Reel	IQXC-240	38.4MHz	±7ppm	±15ppm	-30°C to 85°C	5.00pF
LFXTAL072539Reel	IQXC-26	24.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL078691Cutt	IQXC-26	24.0MHz	±10ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL081608Cutt	IQXC-26	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081608Reel	IQXC-26	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081609Cutt	IQXC-26	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL083890Cutt	IQXC-26	25.0MHz	±10ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL052799Cutt	IQXC-26	26.0MHz	±10ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL066742Cutt	IQXC-26	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL066742Reel	IQXC-26	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069296Cutt	IQXC-26	26.0MHz	±15ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL070729Cutt	IQXC-26	26.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL081614Cutt	IQXC-26	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081614Reel	IQXC-26	26.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL072541Cutt	IQXC-26	27.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL072541Reel	IQXC-26	27.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL081610Cutt	IQXC-26	27.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL072302Cutt	IQXC-26	30.0MHz	±15ppm	±15ppm	20°C to 70°C	8.00pF
LFXTAL081612Cutt	IQXC-26	30.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL056523Cutt	IQXC-26	32.0MHz	±20ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL056523Reel	IQXC-26	32.0MHz	±20ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL069526Cutt	IQXC-26	32.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069526Reel	IQXC-26	32.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL079322Cutt	IQXC-26	32.0MHz	±10ppm	±20ppm	-20°C to 70°C	12.00pF
LFXTAL079322Reel	IQXC-26	32.0MHz	±10ppm	±20ppm	-20°C to 70°C	12.00pF
LFXTAL081613Cutt	IQXC-26	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL083149Reel	IQXC-26	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	6.00pF
LFXTAL072304Cutt	IQXC-26	37.4MHz	±15ppm	±15ppm	20°C to 70°C	8.00pF
LFXTAL081616Cutt	IQXC-26	37.4MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL063312Cutt	IQXC-26	40.0MHz	±30ppm	±30ppm	-40°C to 85°C	16.00pF
LFXTAL069527Cutt	IQXC-26	40.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069527Reel	IQXC-26	40.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL081619Cutt	IQXC-26	40.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL069528Cutt	IQXC-26	48.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL069528Reel	IQXC-26	48.0MHz	±15ppm	±15ppm	-20°C to 70°C	8.00pF
LFXTAL081620Cutt	IQXC-26	48.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL078795Cutt	IQXC-42	16.0MHz	±15ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL081780RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-30°C to 85°C	8.00pF
LFXTAL081781RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081821Cutt	IQXC-42	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	12.00pF
LFXTAL082887RL3K	IQXC-42	16.0MHz	±10ppm	±30ppm	-40°C to 105°C	10.00pF
LFXTAL059585Cutt	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585Reel	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585RL3K	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL064174RL3K	IQXC-42	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066139Cutt	IQXC-42	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069476RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL069493Cutt	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493Reel	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072577RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL076411Cutt	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL076411RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL081531RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081646RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082123Cutt	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082123RL3K	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090516RL3K	IQXC-42	24.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL054026Cutt	IQXC-42	25.0MHz	±25ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059552Reel	IQXC-42	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL064933Cutt	IQXC-42	25.0MHz	±30ppm	±30ppm	0°C to 50°C	10.00pF
LFXTAL066140Cutt	IQXC-42	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Bulk	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Cutt	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Reel	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494RL3K	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL075431RL3K	IQXC-42	25.0MHz	±30ppm	±40ppm	-30°C to 85°C	6.00pF
LFXTAL082125Cutt	IQXC-42	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082125RL3K	IQXC-42	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL085846RL3K	IQXC-42	25.0MHz	±25ppm	±50ppm	-40°C to 125°C	10.00pF
LFXTAL090436RL3K	IQXC-42	25.0MHz	±10ppm	±20ppm	-40°C to 105°C	10.00pF
LFXTAL059591Cutt	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059591Reel	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059591RL3K	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL066141Cutt	IQXC-42	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	10.00pF
LFXTAL076879Bulk	IQXC-42	26.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL078377RL3K	IQXC-42	26.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL081595Cutt	IQXC-42	26.0MHz	±10ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL082126Cutt	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082126Reel	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082126RL3K	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL083241Cutt	IQXC-42	26.0MHz	±15ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL059592Cutt	IQXC-42	27.0MHz	±15ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL072543Cutt	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072543Reel	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072543RL3K	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL081349Reel	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL083147RL3K	IQXC-42	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	18.00pF
LFXTAL063227Reel	IQXC-42	27.12MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL063227RL3K	IQXC-42	27.12MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL071489Bulk	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL071489Cutt	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL071489RL3K	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL076164Cutt	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL076164Reel	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081630Cutt	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081630RL3K	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL082127Cutt	IQXC-42	27.12MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082127RL3K	IQXC-42	27.12MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL059596Cutt	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059596Reel	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059596RL3K	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082128Cutt	IQXC-42	30.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082128RL3K	IQXC-42	30.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL058002RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	0°C to 50°C	8.00pF
LFXTAL058004Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL058004RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL058067Cutt	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL058130RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL058699Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL058962RL3K	IQXC-42	32.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL059597Cutt	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059597Reel	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059597RL3K	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL061700Cutt	IQXC-42	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL061700Reel	IQXC-42	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL072861RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL073170RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL077362RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	6.00pF
LFXTAL081227RL3K	IQXC-42	32.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL081538RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL081567Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL081839RL3K	IQXC-42	32.0MHz	±30ppm	±30ppm	-40°C to 85°C	6.00pF
LFXTAL082129Cutt	IQXC-42	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082129RL3K	IQXC-42	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL083004RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL085946RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 105°C	12.00pF
LFXTAL088678RL3K	IQXC-42	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	8.00pF
LFXTAL082130Cutt	IQXC-42	37.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082130RL3K	IQXC-42	37.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL059627Cutt	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059627Reel	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059627RL3K	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL075418Cutt	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL075418Reel	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078271Cutt	IQXC-42	38.4MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL081635Cutt	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081635RL3K	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081883RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-35°C to 85°C	8.00pF
LFXTAL082131Cutt	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082131RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082468Cutt	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL082468RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL059632Cutt	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059632Reel	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059632RL3K	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082132Cutt	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082132Reel	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082132RL3K	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090469RL3K	IQXC-42	43.935MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL090628Reel	IQXC-42	45.761MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066363Cutt	IQXC-42	48.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL072546Cutt	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072546Reel	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072546RL3K	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082135Cutt	IQXC-42	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082135RL3K	IQXC-42	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL079374Cutt	IQXC-42	50.0MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL085859RL3K	IQXC-42	50.0MHz	±10ppm	±50ppm	-40°C to 125°C	8.00pF
