Q24FA20H00038/40MHz/12pF/±10ppm/2520mm/FA-20H

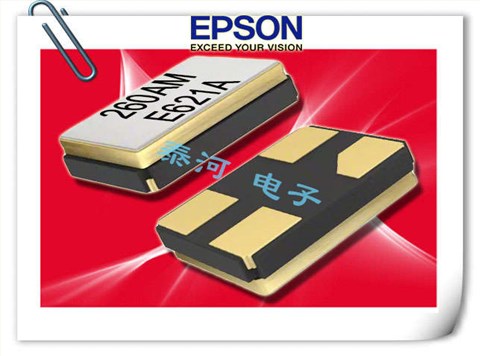

Q24FA20H00038/40MHz/12pF/±10ppm/2520mm/FA-20H，日本进口EPSON爱普生晶振FA-20H，产品编码：Q24FA20H00038，产品型号：FA-20H 40.000000MHz 12.0±10.0，是一款小体积晶振尺寸2.5x2.0x0.55mm，Q24FA20H00038四脚贴片晶振，Q24FA20H00050无源晶振，Q24FA20H00054石英晶振，石英晶体谐振器，无铅环保晶振，频率范围：12MHz至54MHz，工作温度范围：-40℃至+85℃(+105℃)，具有超小型，轻薄型，耐热、耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求，应用：智能手机，蓝牙模块，无线网络，ISM波段收音机，MPU时钟，汽车现在设备，平板电脑，医疗设备等应用。

Q24FA20H00038/40MHz/12pF/±10ppm/2520mm/FA-20H，参数图

Item	Symbol	FA-20H规格		Conditions / Remarks
		For RF Reference	For Clock
Nominal frequency range	f_nom	12 MHz to 54 MHz		Fundamental Please contact us about available frequencies.
Storage temperature range	T_stg	-40°C to +125°C		Storage as single product.
Operating temperature range	T_use	-40°C to +85°C (+105°C)		Please contact us about +85°C < T_use
Level of drive	DL	100µW Max.	200µW Max.	Recommended: 10µW
Frequency tolerance	f_tol	±10×10-6	±30×10-6	+25°C
				Please contact us for inquiries.
Frequency versus temperature characteristics	f_tem	±10×10-6	±30×10-6	-20°C to +75°C
				Please contact us for inquiries.
Load capacitance	CL	6 pF to∞		Please specify.
Motional resistance (ESR)	R1	As per table below		-20°C to +75°C
Frequency aging	f_age	±1×10-6 to±3×10-6 / year Max.*1		+25°C, First year

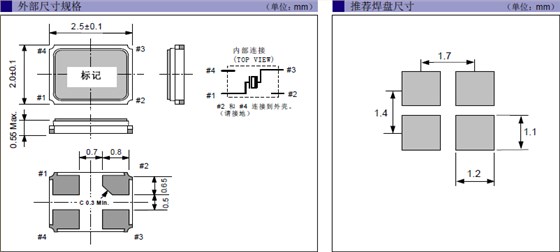

Q24FA20H00038/40MHz/12pF/±10ppm/2520mm/FA-20H，尺寸图

Q24FA20H00038/40MHz/12pF/±10ppm/2520mm/FA-20H

产品名称 FA-20H 24.000000MHz 12.0 ±10.0

（标准形式） ① ② ③ ④

①型号

②频率

③负载电容（pF）

④频率容差（×10-6，+25°C）

编码	进口晶振	型号	频率	负载	频率 @+25°C
Q24FA20H00001	2.5 x 2 x 0.55mm	FA-20H	18.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00003	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00005	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00006	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00008	2.5 x 2 x 0.55mm	FA-20H	48.000000 MHz	7 pF	+/-50 ppm
Q24FA20H00029	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	8 pF	+/-10 ppm
Q24FA20H00031	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00036	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	11.5 pF	+/-10 ppm
Q24FA20H00038	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	12 pF	+/-10 ppm
Q24FA20H00039	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	-9/+11 ppm
Q24FA20H00044	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00047	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	8.5 pF	+/-15 ppm
Q24FA20H00050	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	16 pF	+/-10 ppm
Q24FA20H00051	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	12 pF	+/-10 ppm
Q24FA20H00052	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00053	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-20 ppm
Q24FA20H00054	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	+/-30 ppm
Q24FA20H00059	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	6 pF	+/-10 ppm
Q24FA20H00066	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-30 ppm
Q24FA20H00069	2.5 x 2 x 0.55mm	FA-20H贴片晶振	40.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00070	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	+/-10 ppm
Q24FA20H00073	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00074	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10.5 pF	+/-10 ppm
Q24FA20H00077	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	12 pF	+/-10 ppm
Q24FA20H00079	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	16 pF	+/-10 ppm
Q24FA20H00085	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00086	2.5 x 2 x 0.55mm	FA-20H	24.576000 MHz	8 pF	+/-15 ppm
Q24FA20H00087	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00092	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00093	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	10 pF	+/-30 ppm
Q24FA20H00095	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	7 pF	+/-10 ppm
Q24FA20H00097	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00100	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	20 pF	+/-20 ppm
Q24FA20H00106	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	12 pF	+/-10 ppm
Q24FA20H00114	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00115	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	8 pF	+/-30 ppm
Q24FA20H00116	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	+/-30 ppm
Q24FA20H00118	2.5 x 2 x 0.55mm	FA-20H	27.120000 MHz	18 pF	+/-10 ppm
Q24FA20H00122	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00126	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	15 pF	+/-10 ppm
Q24FA20H00128	2.5 x 2 x 0.55mm	FA-20H	20.000000 MHz	8 pF	+/-10 ppm
Q24FA20H00132	2.5 x 2 x 0.55mm	FA-20H	24.576000 MHz	8 pF	+/-10 ppm
Q24FA20H00137	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	+/-10 ppm
Q24FA20H00139	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	8 pF	+/-30 ppm
Q24FA20H00147	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00150	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	+/-30 ppm
Q24FA20H00151	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	16 pF	+/-10 ppm
Q24FA20H00152	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	10 pF	+/-30 ppm
Q24FA20H00153	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	+/-10 ppm
