S133025-T-32.768K-X-15-R3|32.768KHz|3.3V|AKER晶振

产品简介

S133025-T-32.768K-X-15-R3|32.768KHz|3.3V|AKER晶振,AKER晶振,S1-32.768KHz有源晶振,CMOS晶振,S133025-T-32.768K-X-15-R3晶振,2016mm晶振,石英贴片晶振,晶体振荡器,频率32.768KHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,小体积晶振,高稳定性晶振,无铅环保晶振,物联网晶振,可穿戴设备晶振,平板电脑晶振,通信设备晶振.

产品详情

TH-1 890

S133025-T-32.768K-X-15-R3|32.768KHz|3.3V|AKER晶振,AKER晶振,S1-32.768KHz有源晶振,CMOS晶振,S133025-T-32.768K-X-15-R3晶振,2016mm晶振,石英贴片晶振,晶体振荡器,频率32.768KHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,小体积晶振,高稳定性晶振,无铅环保晶振,物联网晶振,可穿戴设备晶振,平板电脑晶振,通信设备晶振.

S133025-T-32.768K-X-15-R3|32.768KHz|3.3V|AKER晶振特点：

-HCMOS输出时钟振荡器

-一天中的时间-32.768KHz

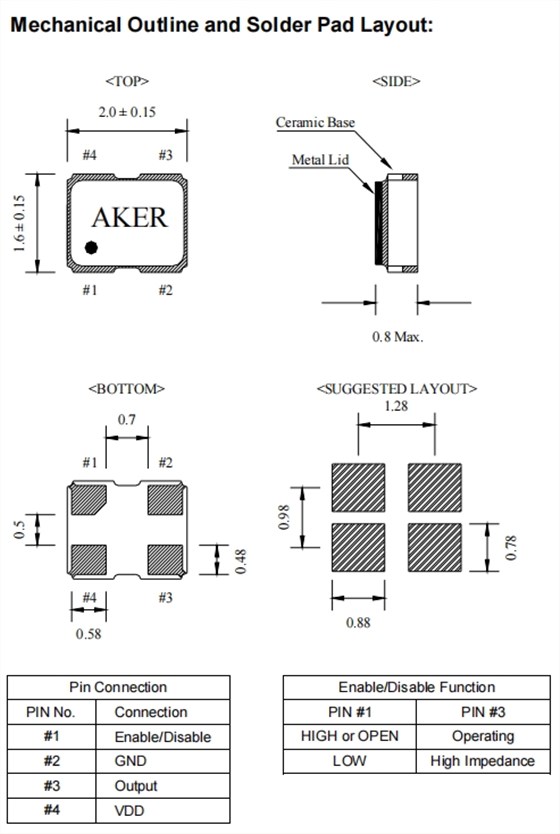

-2.0×1.6mm表面安装

-产品通用规格

TH-2 890

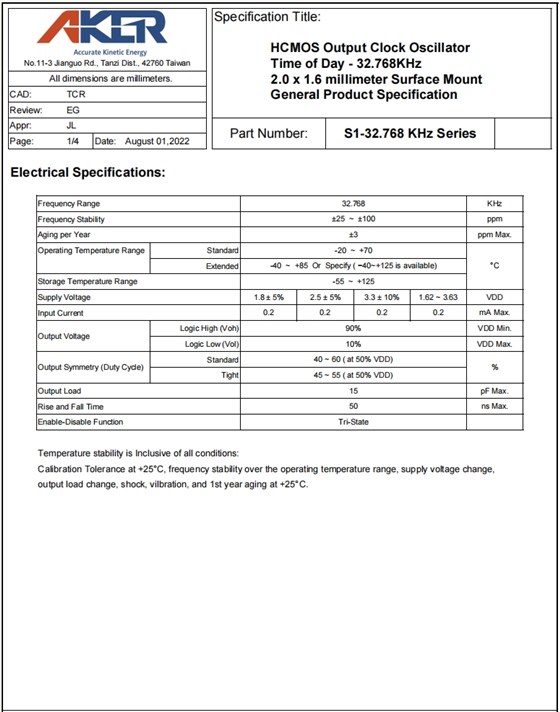

S133025-T-32.768K-X-15-R3|32.768KHz|3.3V|AKER晶振规格表

Frequency Range		32.768				KHz
Frequency Stability		±25~±100				ppm
Aging per Year		±3				ppm Max
Operating Temperature Range	Standard	-20~+70				°C
	Extended	-40 - +85 Or Specify(-40--+125 is available)
Storage Temperature Range		-55+125
Supply Voltage		1.8±5%	2.5±5%	3.3±10%	1.62-363	VDD
Input Cument		0.2	0.2	0.2	0.2	mA Max.
Output Voltage	Logic High（Voh)	90%				VDD Min.
	Logic Low (Vol）	10%				VDD Max.
Output Symmetry (Duty Cycle)	Standard	40-60( at 50%%VDD）				%
	Tight	45-55( at 50%VDD）
Output Load		15				pF Max.
Rise and Fall Time		50				ns Max.
Enable-Disable Function		Tri-State
