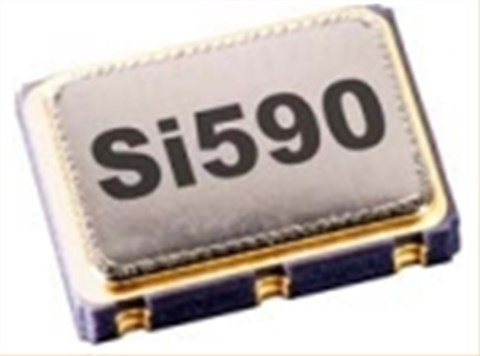

Skyworks差分晶振,591FF200M000DG,5032mm,6G以太网晶振,Skyworks差分晶振,Si591有源晶振,石英晶体振荡器,采用DSPLL时钟合成提供了优越的电源噪声抑制,简化了在通信系统中通常存在的噪声环境中产生低抖动时钟的任务,基于Si591 IC的XO可在工厂配置,适用于各种用户规格,包括频率,电源电压,输出格式和稳定性,特定的配置是工厂在出货时编程，从而消除了与定制振荡器相关的长交货时间,5032mm晶振,石英贴片晶振,LVDS晶振,6G以太网晶振,存储器晶振,网络交换机晶振,图像处理器晶振.

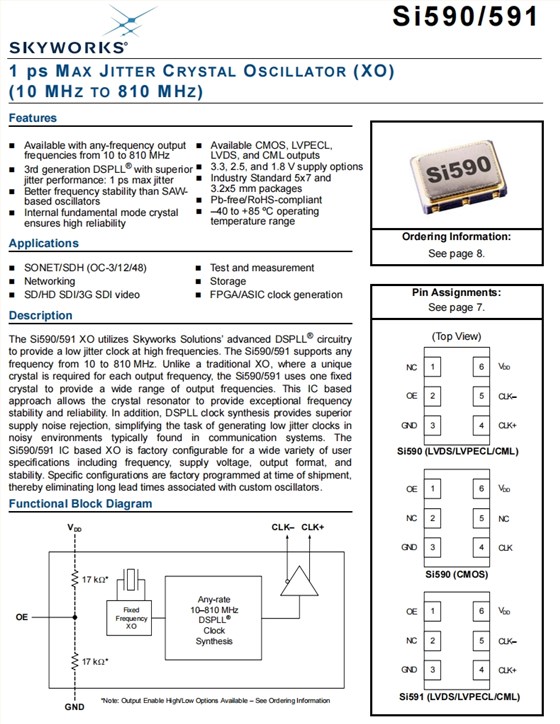

Skyworks差分晶振,591FF200M000DG,5032mm,6G以太网晶振特点
•可与任意速率输出频率从10MHz到810MHz
•第三代DSPLL®具有卓越的抖动性能：最大抖动1ps
•频率稳定性优于SAW-based振荡器
•内部基模晶体保证高可靠性
•可用CMOS, LVPECL，LVDS和CML输出
•3.3, 2.5 V和1.8V电源选项
•行业标准的5 × 7mm和3.2×2.5mm封装
•无铅，符合RoHS标准
•工作温度范围-40至+85ºC
Skyworks差分晶振,591FF200M000DG,5032mm,6G以太网晶振规格表
项目
符号
规格说明
条件
额定频率
f_nom
200MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
2.5V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率稳定性
f_tol
±25 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流
IDD
100mA Max
LVDS
对称性（占空比）
SYM
45%~55%
在输出交叉点
输出电压
VOD
0.9VPP Max
LVDS
VO
1.275V Max
输入电压
VIH
0.75%×VDD Min
VIL
0.5VMax
上升下降时间
tr/tf
350ps Max
LVDS
起始时间
t str
10ms Max
相位抖动
tpj
1.0ps Max
LVDS

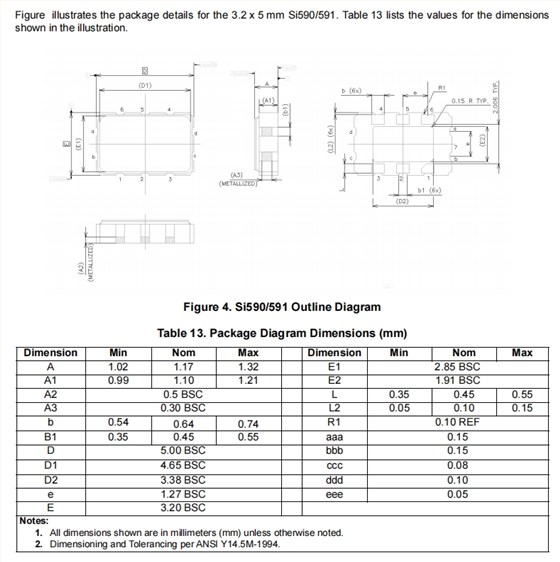

Skyworks差分晶振,591FF200M000DG,5032mm,6G以太网晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 |
| 591BB100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB300M000DG | Skyworks Solutions Inc. | Si591 | 300 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB50M0000DG | Skyworks Solutions Inc. | Si591 | 50 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BA120M000DG | Skyworks Solutions Inc. | Si591 | 120 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA120M000DGR | Skyworks Solutions Inc. | Si591 | 120 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AB100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB106M250DGR | Skyworks Solutions Inc. | Si591 | 106.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB108M000DGR | Skyworks Solutions Inc. | Si591 | 108 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB114M285DGR | Skyworks Solutions Inc. | Si591 | 114.285 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB74M2500DGR | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB80M0000DGR | Skyworks Solutions Inc. | Si591 | 80 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB92M4000DGR | Skyworks Solutions Inc. | Si591 | 92.4 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591EB125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591EB20M0000DGR | Skyworks Solutions Inc. | Si591 | 20 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB100M300DGR | Skyworks Solutions Inc. | Si591 | 100.3 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB40M0000DGR | Skyworks Solutions Inc. | Si591 | 40 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB72M0000DGR | Skyworks Solutions Inc. | Si591 | 72 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB80M0000DGR | Skyworks Solutions Inc. | Si591 | 80 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB81M0000DGR | Skyworks Solutions Inc. | Si591 | 81 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB85M0000DGR | Skyworks Solutions Inc. | Si591 | 85 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591MB10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591SB125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591FB50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 591BF25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AA106M250DG | Skyworks Solutions Inc. | Si591 | 106.25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA125M000DG | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA25M0000DG | Skyworks Solutions Inc. | Si591 | 25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA64M1520DG | Skyworks Solutions Inc. | Si591 | 64.152 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA116M625DG | Skyworks Solutions Inc. | Si591 | 116.625 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA31M0025DG | Skyworks Solutions Inc. | Si591 | 31.0025 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA31M2500DG | Skyworks Solutions Inc. | Si591 | 31.25 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA50M0000DG | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA83M3360DG | Skyworks Solutions Inc. | Si591 | 83.336 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BD50M0000DG | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591FD50M0000DG | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 591FD50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 591AA100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA106M250DGR | Skyworks Solutions Inc. | Si591 | 106.25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591AA64M1520DGR | Skyworks Solutions Inc. | Si591 | 64.152 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA116M625DGR | Skyworks Solutions Inc. | Si591 | 116.625 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA31M0025DGR | Skyworks Solutions Inc. | Si591 | 31.0025 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA31M2500DGR | Skyworks Solutions Inc. | Si591 | 31.25 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BA83M3360DGR | Skyworks Solutions Inc. | Si591 | 83.336 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 591BD50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591FG150M000DGR | Skyworks Solutions Inc. | Si591 | 150 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FG200M000DGR | Skyworks Solutions Inc. | Si591 | 200 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EG200M000DGR | Skyworks Solutions Inc. | Si591 | 200 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AG156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG135M000DGR | Skyworks Solutions Inc. | Si591 | 135 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC000274DG | Skyworks Solutions Inc. | Si591 | 274 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC000274DG | Skyworks Solutions Inc. | Si591 | 274 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591FC300M000DG | Skyworks Solutions Inc. | Si591 | 300 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AC000106DGR | Skyworks Solutions Inc. | Si591 | 106 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC000211DGR | Skyworks Solutions Inc. | Si591 | 211 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC143M360DGR | Skyworks Solutions Inc. | Si591 | 143.36 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC150M000DGR | Skyworks Solutions Inc. | Si591 | 150 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC155M520DGR | Skyworks Solutions Inc. | Si591 | 155.52 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AD25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591AD62M5000DGR | Skyworks Solutions Inc. | Si591 | 62.5 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591AD74M1758DGR | Skyworks Solutions Inc. | Si591 | 74.1758 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591AD74M2500DGR | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BC000244DGR | Skyworks Solutions Inc. | Si591 | 244 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC148M500DGR | Skyworks Solutions Inc. | Si591 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC166M000DGR | Skyworks Solutions Inc. | Si591 | 166 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC200M000DGR | Skyworks Solutions Inc. | Si591 | 200 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BD100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD122M880DGR | Skyworks Solutions Inc. | Si591 | 122.88 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD20M0000DGR | Skyworks Solutions Inc. | Si591 | 20 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD66M6670DGR | Skyworks Solutions Inc. | Si591 | 66.667 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD74M2500DGR | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD81M9200DGR | Skyworks Solutions Inc. | Si591 | 81.92 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591EC133M333DGR | Skyworks Solutions Inc. | Si591 | 133.333 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC148M500DGR | Skyworks Solutions Inc. | Si591 | 148.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC148M550DGR | Skyworks Solutions Inc. | Si591 | 148.55 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC155M520DGR | Skyworks Solutions Inc. | Si591 | 155.52 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC148M500DGR | Skyworks Solutions Inc. | Si591 | 148.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC150M000DGR | Skyworks Solutions Inc. | Si591 | 150 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC200M000DGR | Skyworks Solutions Inc. | Si591 | 200 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FD114M285DGR | Skyworks Solutions Inc. | Si591 | 114.285 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 591MC156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591MD53M1250DGR | Skyworks Solutions Inc. | Si591 | 53.125 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591MD62M5000DGR | Skyworks Solutions Inc. | Si591 | 62.5 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591NC156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591RC160M000DGR | Skyworks Solutions Inc. | Si591 | 160 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AC000278DGR | Skyworks Solutions Inc. | Si591 | 156.253906 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591FD125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C |
| 591BD72M0000DGR | Skyworks Solutions Inc. | Si591 | 72 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591BD48M0000DGR | Skyworks Solutions Inc. | Si591 | 48 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C |
| 591FG156M250DGR | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC125M000DG | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC30M7200DG | Skyworks Solutions Inc. | Si591 | 30.72 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC99M9925DG | Skyworks Solutions Inc. | Si591 | 99.9925 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591MC100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591SC75M0000DG | Skyworks Solutions Inc. | Si591 | 75 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AC28M9000DG | Skyworks Solutions Inc. | Si591 | 28.9 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC10M0000DG | Skyworks Solutions Inc. | Si591 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC85M0000DG | Skyworks Solutions Inc. | Si591 | 85 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC10M0000DG | Skyworks Solutions Inc. | Si591 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG10M0000DG | Skyworks Solutions Inc. | Si591 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC20M7120DG | Skyworks Solutions Inc. | Si591 | 20.712 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG70M6560DG | Skyworks Solutions Inc. | Si591 | 70.656 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG50M0000DG | Skyworks Solutions Inc. | Si591 | 50 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG80M0000DG | Skyworks Solutions Inc. | Si591 | 80 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG20M0000DG | Skyworks Solutions Inc. | Si591 | 20 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG81M0000DG | Skyworks Solutions Inc. | Si591 | 81 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG10M0000DG | Skyworks Solutions Inc. | Si591 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC000274DGR | Skyworks Solutions Inc. | Si591 | 274 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC000274DGR | Skyworks Solutions Inc. | Si591 | 274 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591FC300M000DGR | Skyworks Solutions Inc. | Si591 | 300 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AC121M109DG | Skyworks Solutions Inc. | Si591 | 121.109 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC125M000DG | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC50M0000DG | Skyworks Solutions Inc. | Si591 | 50 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC55M5555DG | Skyworks Solutions Inc. | Si591 | 55.5555 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC62M5000DG | Skyworks Solutions Inc. | Si591 | 62.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC74M2500DG | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC75M0000DG | Skyworks Solutions Inc. | Si591 | 75 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC125M000DG | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC69M0000DG | Skyworks Solutions Inc. | Si591 | 69 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC70M0000DG | Skyworks Solutions Inc. | Si591 | 70 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC74M2500DG | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591EC100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC125M000DG | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC25M0000DG | Skyworks Solutions Inc. | Si591 | 25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC30M7200DG | Skyworks Solutions Inc. | Si591 | 30.72 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC100M000DG | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC106M250DG | Skyworks Solutions Inc. | Si591 | 106.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AC121M109DGR | Skyworks Solutions Inc. | Si591 | 121.109 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC55M5555DGR | Skyworks Solutions Inc. | Si591 | 55.5555 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC62M5000DGR | Skyworks Solutions Inc. | Si591 | 62.5 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC74M2500DGR | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC75M0000DGR | Skyworks Solutions Inc. | Si591 | 75 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC69M0000DGR | Skyworks Solutions Inc. | Si591 | 69 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC70M0000DGR | Skyworks Solutions Inc. | Si591 | 70 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC74M2500DGR | Skyworks Solutions Inc. | Si591 | 74.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591EC100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC25M0000DGR | Skyworks Solutions Inc. | Si591 | 25 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591EC30M7200DGR | Skyworks Solutions Inc. | Si591 | 30.72 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC106M250DGR | Skyworks Solutions Inc. | Si591 | 106.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC125M000DGR | Skyworks Solutions Inc. | Si591 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC30M7200DGR | Skyworks Solutions Inc. | Si591 | 30.72 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591FC99M9925DGR | Skyworks Solutions Inc. | Si591 | 99.9925 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591MC100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591SC75M0000DGR | Skyworks Solutions Inc. | Si591 | 75 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 591AC28M9000DGR | Skyworks Solutions Inc. | Si591 | 28.9 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC85M0000DGR | Skyworks Solutions Inc. | Si591 | 85 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AC10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG50M0000DGR | Skyworks Solutions Inc. | Si591 | 50 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG80M0000DGR | Skyworks Solutions Inc. | Si591 | 80 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG20M0000DGR | Skyworks Solutions Inc. | Si591 | 20 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG81M0000DGR | Skyworks Solutions Inc. | Si591 | 81 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG10M0000DGR | Skyworks Solutions Inc. | Si591 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BC20M7120DGR | Skyworks Solutions Inc. | Si591 | 20.712 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591BG70M6560DGR | Skyworks Solutions Inc. | Si591 | 70.656 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AG100M000DGR | Skyworks Solutions Inc. | Si591 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 591AB000172DG | Skyworks Solutions Inc. | Si591 | 172 kHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB000174DG | Skyworks Solutions Inc. | Si591 | 174 kHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB150M000DG | Skyworks Solutions Inc. | Si591 | 150 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB155M520DG | Skyworks Solutions Inc. | Si591 | 155.52 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB161M132DG | Skyworks Solutions Inc. | Si591 | 161.132 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB172M500DG | Skyworks Solutions Inc. | Si591 | 172.5 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591AB187M500DG | Skyworks Solutions Inc. | Si591 | 187.5 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB000292DG | Skyworks Solutions Inc. | Si591 | 292 kHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB133M333DG | Skyworks Solutions Inc. | Si591 | 133.333 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB135M000DG | Skyworks Solutions Inc. | Si591 | 135 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB148M350DG | Skyworks Solutions Inc. | Si591 | 148.35 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB148M500DG | Skyworks Solutions Inc. | Si591 | 148.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB155M520DG | Skyworks Solutions Inc. | Si591 | 155.52 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB156M250DG | Skyworks Solutions Inc. | Si591 | 156.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB161M132DG | Skyworks Solutions Inc. | Si591 | 161.132 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB162M000DG | Skyworks Solutions Inc. | Si591 | 162 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 591BB200M000DG | Skyworks Solutions Inc. | Si591 | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
ABLS7M2-24.576MHZ-D2Y-T,24.576MHz,Abracon通信晶振
ABLSG-12.288MHZ-D2Y-T,美国Abracon进口晶振,医疗电子晶振
ABM10W-16.0132MHZ-7-J1Z-T3,美国Abracon晶振,蓝牙模块晶振
DSC1018DI1-048.0000T,48MHz,2520mm,Microchip晶体振荡器
DSC1003DL2-148.5000T,Microchip监控摄像头晶振,2520mm振荡器,148.5MHz
CWX823-018.432M,7050mm,ConnorWinfield卫星导航晶振
CWX825-15.36M,7050mm,ConnorWinfield导航仪晶振
DOC102F-020.0M,DOC低相位噪声晶振,ConnorWinfield以太网晶振
