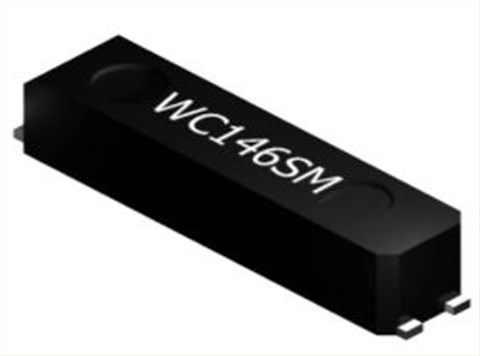

WC146SMF-32.768KHZ-T,Mmdcomp时钟晶振,7015mm谐振器，美国Mmdcomp晶振，麦迪康品牌晶振，型号：WC146SM系列，编码为：WC146SMF-32.768KHZ-T贴片晶振，频率为：32.768KHz，负载：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x1.5x1.4mm陶瓷SMD封装，四脚贴片晶振，石英晶振，无源晶振，陶瓷晶振，7015晶振，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，耐热及耐环境特点。应用于：通讯设备晶振，时钟晶振，数字电子晶振，电脑主板晶振，计算机等应用。

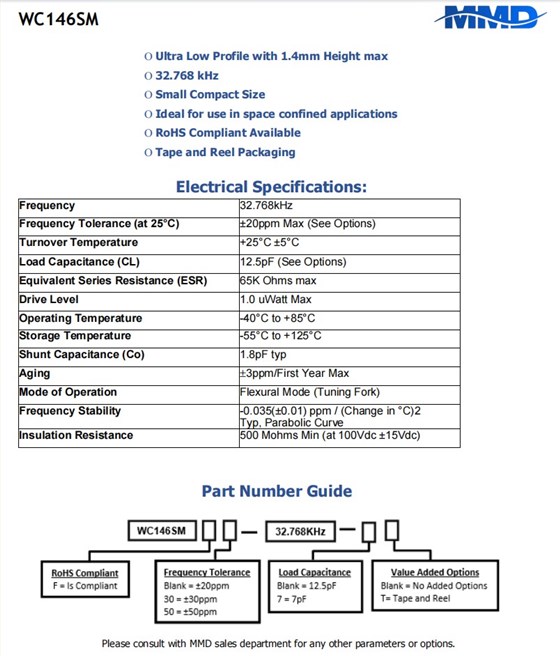

WC146SMF-32.768KHZ-T,Mmdcomp时钟晶振,7015mm谐振器，参数表
| Frequency | 32.768kHz | ||||
| Frequency Tolerance (at 25°C) | ±20ppm Max (See Options) | ||||
| Turnover Temperature | +25°C ±5°C | ||||
| Load Capacitance (CL) | 12.5pF (See Options) | ||||
| Equivalent Series Resistance (ESR) | 65K Ohms max | ||||
| Drive Level | 1.0 uWatt Max | ||||
| Operating Temperature | -40°C to +85°C | ||||
| Storage Temperature | -55°C to +125°C | ||||
| Shunt Capacitance (Co) | 1.8pF typ | ||||
| Aging | ±3ppm/First Year Max | ||||
| Mode of Operation | Flexural Mode (Tuning Fork) | ||||
| Frequency Stability | -0.035(±0.01) ppm / (Change in °C)2 Typ, Parabolic Curve |
||||
| Insulation Resistance | 500 Mohms Min (at 100Vdc ±15Vdc) |
||||

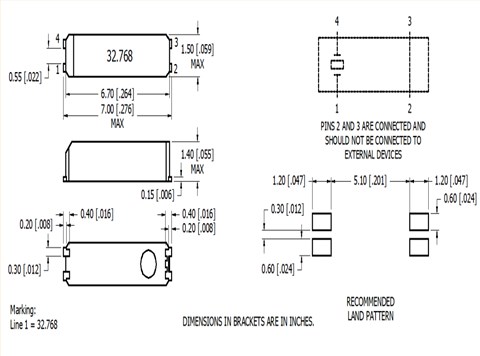

WC146SMF-32.768KHZ-T,Mmdcomp时钟晶振,7015mm谐振器，尺寸图
| 晶振编码 | 品牌 | 系列 | 频率 | 频率容差 |
| WC146SMF-32.768KHZ-T | Mmdcomp晶振 | WC146SM | 32.768 kHz | ±20ppm |
| MMC-463F-32.768KHZ-T | Mmdcomp晶振 | MMC | 32.768 kHz | ±20ppm |
| WC315-32.768KHZ-T | Mmdcomp晶振 | WC315 | 32.768 kHz | ±20ppm |
| T10GC1-20.000MHZ-T | Mmdcomp晶振 | T | 20 MHz | ±10ppm |
| T10GC1-22.1184MHZ-T | Mmdcomp晶振 | T | 22.1184 MHz | ±10ppm |
| T10GC1-24.000MHZ-T | Mmdcomp晶振 | T | 24 MHz | ±10ppm |
| T10GC1-19.200MHZ-T | Mmdcomp晶振 | 进口晶振 | 19.2 MHz | ±10ppm |
| T10GC1-24.576MHZ-T | Mmdcomp晶振 | T | 24.576 MHz | ±10ppm |
| T10GC1-16.000MHZ-T | Mmdcomp晶振 | T | 16 MHz | ±10ppm |
| T10GC1-16.384MHZ-T | Mmdcomp晶振 | T | 16.384 MHz | ±10ppm |
| T10GC1-48.000MHZ-T | Mmdcomp晶振 | T | 48 MHz | ±10ppm |
| WC26SMFD-32.768KHZ-T | Mmdcomp晶振 | WC26SM | 32.768 kHz | ±20ppm |
| WC38F-32.768KHZ | Mmdcomp晶振 | WC | 32.768 kHz | ±20ppm |
| WC26F-32.768KHZ | Mmdcomp晶振 | WC | 32.768 kHz | ±20ppm |
| T10GC1-18.432MHZ-T | Mmdcomp晶振 | T | 18.432 MHz | ±10ppm |
| T10GC1-16.3676MHZ-T | Mmdcomp晶振 | T | 16.3676 MHz | ±10ppm |
| T10GC1-25.000MHZ-T | Mmdcomp晶振 | T | 25 MHz | ±10ppm |
| T10GC1-27.000MHZ-T | Mmdcomp晶振 | T | 27 MHz | ±10ppm |
| T10GC1-40.000MHZ-T | Mmdcomp晶振 | T | 40 MHz | ±10ppm |
| T10GC1-30.000MHZ-T | Mmdcomp晶振 | T | 30 MHz | ±10ppm |
| FF10AC1-13.560MHZ-T | Mmdcomp晶振 | F | 13.56 MHz | ±50ppm |
| FF18AA1-12.000MHZ-T | Mmdcomp晶振 | F | 12 MHz | ±50ppm |
| FF18EA1-14.7456MHZ-T | Mmdcomp晶振 | F | 14.7456 MHz | ±50ppm |
| FF20AC1-8.000MHZ-T | Mmdcomp晶振 | F | 8 MHz | ±50ppm |
| FF30BC1-25.000MHZ | Mmdcomp晶振 | F | 25 MHz | ±30ppm |
| FF40BI1-8.704MHZ-T | Mmdcomp晶振 | F | 8.704 MHz | ±30ppm |
| MMC-473-110.76625MHZ | Mmdcomp晶振 | MMC | 110.76625 MHz | ±15ppm |
| MMC-474-100.0325MHZ | Mmdcomp晶振 | MMC | 100.0325 MHz | ±15ppm |
| T10GC1-26.000MHZ-T | Mmdcomp晶振 | T | 26 MHz | ±10ppm |
| T12BC1-19.200MHZ-T | Mmdcomp晶振 | T | 19.2 MHz | ±30ppm |
| T18BC1-13.000MHZ-T | Mmdcomp晶振 | T | 13 MHz | ±30ppm |
| T18BD1-24.000MHZ-T | Mmdcomp晶振 | T | 24 MHz | ±30ppm |
| WC26SMFC-32.768KHZ-T | Mmdcomp晶振 | WC26SM | 32.768 kHz | ±10ppm |
