WC315-32.768KHZ-T,Mmdcomp石英晶体,3215mm,电脑主板晶振，美国进口晶振，Mmdcomp麦迪康晶振，型号：WC315系列，编码为：WC315-32.768KHZ-T，频率为：32.768K晶体，负载：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x1.5x0.9mm封装，两脚贴片晶振，无源晶振，石英晶体，3215晶振，SMD晶振，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，耐热及耐环境特点。应用于：钟表电子晶振，仪器仪表设备晶振，电脑主板晶振，计算机晶振，数字显示等应用。

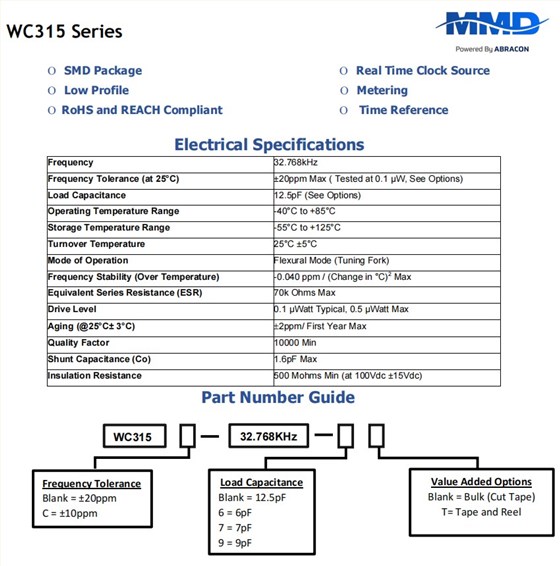

WC315-32.768KHZ-T,Mmdcomp石英晶体,3215mm,电脑主板晶振，参数表
| Frequency | 32.768kHz | |||||||||||||
| Frequency Tolerance (at 25°C) | ±20ppm Max ( Tested at 0.1 µW, See Options) | |||||||||||||
| Load Capacitance | 12.5pF (See Options) | |||||||||||||
| Operating Temperature Range | -40°C to +85°C | |||||||||||||
| Storage Temperature Range | -55°C to +125°C | |||||||||||||
| Turnover Temperature | 25°C ±5°C | |||||||||||||
| Mode of Operation | Flexural Mode (Tuning Fork) | |||||||||||||
| Frequency Stability (Over Temperature) | -0.040 ppm / (Change in °C)2Max | |||||||||||||
| Equivalent Series Resistance (ESR) | 70k Ohms Max | |||||||||||||
| Drive Level | 0.1 µWatt Typical, 0.5 µWatt Max | |||||||||||||
| Aging (@25°C± 3°C) | ±2ppm/ First Year Max | |||||||||||||
| Quality Factor | 10000 Min | |||||||||||||
| Shunt Capacitance (Co) | 1.6pF Max | |||||||||||||
| Insulation Resistance | 500 Mohms Min (at 100Vdc ±15Vdc) | |||||||||||||

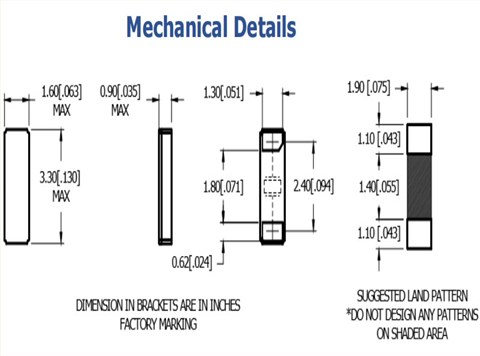

WC315-32.768KHZ-T,Mmdcomp石英晶体,3215mm,电脑主板晶振，尺寸图
| 晶振编码 | 品牌 | 系列 | 频率 | 频率容差 |
| WC146SMF-32.768KHZ-T | Mmdcomp晶振 | WC146SM | 32.768 kHz | ±20ppm |
| MMC-463F-32.768KHZ-T | Mmdcomp晶振 | MMC | 32.768 kHz | ±20ppm |
| WC315-32.768KHZ-T | Mmdcomp晶振 | WC315 | 32.768 kHz | ±20ppm |
| X10CB1-40.000MHZ-T | Mmdcomp晶振 | X | 40 MHz | ±15ppm |
| X10CB1-30.000MHZ-T | Mmdcomp晶振 | X | 30 MHz | ±15ppm |
| X10CB1-24.576MHZ-T | Mmdcomp晶振 | X | 24.576 MHz | ±15ppm |
| X10CB1-22.1184MHZ-T | Mmdcomp晶振 | X | 22.1184 MHz | ±15ppm |
| X10CB1-27.000MHZ-T | Mmdcomp晶振 | X | 27 MHz | ±15ppm |
| X10CB1-32.000MHZ-T | Mmdcomp晶振 | X | 32 MHz | ±15ppm |
| X10CB1-25.000MHZ-T | Mmdcomp晶振 | X | 25 MHz | ±15ppm |
| X10CB1-16.000MHZ-T | Mmdcomp晶振 | X | 16 MHz | ±15ppm |
| X10CB1-16.3676MHZ-T | 贴片晶振 | X | 16.3676 MHz | ±15ppm |
| X10CB1-26.000MHZ-T | Mmdcomp晶振 | X | 26 MHz | ±15ppm |
| X10CB1-24.000MHZ-T | Mmdcomp晶振 | X | 24 MHz | ±15ppm |
| X10CB1-16.384MHZ-T | Mmdcomp晶振 | X | 16.384 MHz | ±15ppm |
| WC26SMFD-32.768KHZ-T | Mmdcomp晶振 | WC26SM | 32.768 kHz | ±20ppm |
| WC38F-32.768KHZ | Mmdcomp晶振 | WC | 32.768 kHz | ±20ppm |
| WC26F-32.768KHZ | Mmdcomp晶振 | WC | 32.768 kHz | ±20ppm |
| X10CB1-48.000MHZ-T | Mmdcomp晶振 | X | 48 MHz | ±15ppm |
| X10CB1-20.000MHZ-T | Mmdcomp晶振 | X | 20 MHz | ±15ppm |
| X10CB1-19.200MHZ-T | Mmdcomp晶振 | X | 19.2 MHz | ±15ppm |
| X10CB1-18.432MHZ-T | Mmdcomp晶振 | X | 18.432 MHz | ±15ppm |
| FF10AC1-13.560MHZ-T | Mmdcomp晶振 | F | 13.56 MHz | ±50ppm |
| FF18AA1-12.000MHZ-T | Mmdcomp晶振 | F | 12 MHz | ±50ppm |
| FF18EA1-14.7456MHZ-T | Mmdcomp晶振 | F | 14.7456 MHz | ±50ppm |
| FF20AC1-8.000MHZ-T | Mmdcomp晶振 | F | 8 MHz | ±50ppm |
| FF30BC1-25.000MHZ | Mmdcomp晶振 | F | 25 MHz | ±30ppm |
| FF40BI1-8.704MHZ-T | Mmdcomp晶振 | F | 8.704 MHz | ±30ppm |
| MMC-473-110.76625MHZ | Mmdcomp晶振 | MMC | 110.76625 MHz | ±15ppm |
| MMC-474-100.0325MHZ | Mmdcomp晶振 | MMC | 100.0325 MHz | ±15ppm |
| WC26SMFC-32.768KHZ-T | Mmdcomp晶振 | WC26SM | 32.768 kHz | ±10ppm |
| X20AB1-16.000MHZ-T | Mmdcomp晶振 | X | 16 MHz | ±50ppm |
