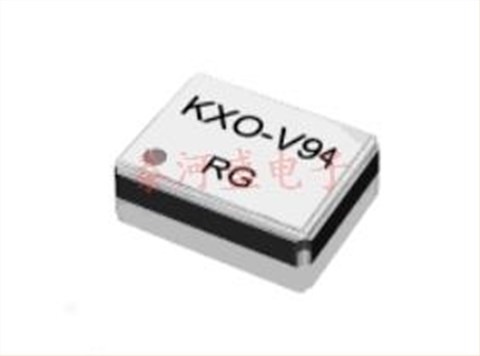

12.90300,2016贴片晶振,Geyer晶振,KXO-V94高稳定性晶振
| 原厂型号Originalmodel： |
       12.90300
|
品牌brand： | Geyer格耶晶振 |
| Manufacturer品牌 | Geyer格耶晶振 | OperatingTemperature温度 | -20°C to +70°C |
| Series型号 |
 KXO-V94
|
Current-Supply(Max) | - |
| Type类型 | XO智能家居晶振 | PackageHeight高度 | 0.8mm |
| Frequency频率 |
 27.0 MHz
|
Termination脚位 | 4pad |
| 输出方式Output： | HCMOS | PackageType封装类型 | 4-smd |
| Voltage-Supply电压 | 1.8 V | Packaging包装 | TapeandReel |
| FrequencyStability频率稳定度 |
    ± 50 ppm
|
安装方式Installation： | Surfacemount |

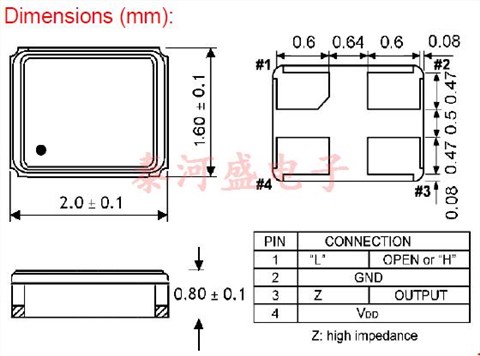

| Size/Dimension尺寸 | 2.0X1.6MM | 最小包装数MPQ： | 3000 |
12.90300,2016贴片晶振,Geyer晶振,KXO-V94高稳定性晶振
12.90300,2016贴片晶振,Geyer晶振,KXO-V94高稳定性晶振
12.90300,2016贴片晶振,Geyer晶振,KXO-V94高稳定性晶振
| 12.73005 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 8.0 MHz | -40°C to +85°C | ± 30 ppm | +1.8 V ± 5% |
| 12.73006 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 3.68640 MHz | -40°C to +85°C | ± 30 ppm | +1.8 V ± 5% |
| 12.73007 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 16.0 MHz | -40°C to +85°C | ± 30 ppm | +1.8 V ± 5% |
 12.73008
|
 KXO-V93
|
 1.6 | 1.2 | 0.6 mm
|
 25.0 MHz
|
 -40°C to +85°C
|
 ± 30 ppm
|
 +1.8 V ± 5%
|
| 12.73009 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 24.0 MHz | -40°C to +85°C | ± 30 ppm | +3.3 V ± 5% |
| 12.73010 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 8.0 MHz | -40°C to +85°C | ± 30 ppm |
 +3.3 V ± 5%
|
| 12.73011 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 3.68640 MHz | -40°C to +85°C | ± 30 ppm | +3.3 V ± 5% |
| 12.73012 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 16.0 MHz | -40°C to +85°C |
 ± 30 ppm
|
+3.3 V ± 5% |
| 12.73013 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 25.0 MHz | -40°C to +85°C | ± 30 ppm | +3.3 V ± 5% |
| 12.73014 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 12.0 MHz |
 -40°C to +85°C
|
± 30 ppm | +1.8 V ± 5% |
| 12.73015 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 27.0 MHz | -40°C to +85°C | ± 30 ppm | +1.8 V ± 5% |
 12.73016
|
KXO-V93 | 1.6 | 1.2 | 0.6 mm |
 19,20 MHz
|
-40°C to +85°C | ± 30 ppm | +3.3 V ± 5% |
| 12.73017 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 12.2880 MHz | -40°C to +85°C | ± 25 ppm | +3.3 V ± 5% |
| 12.73018 | KXO-V93 |
 1.6 | 1.2 | 0.6 mm
|
12.0 MHz | -40°C to +85°C | ± 30 ppm | +3.3 V ± 5% |
| 12.73019 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 27.120 MHz | -40°C to +85°C | ± 50 ppm | +3.3 V ± 5% |
| 12.73021 |
 KXO-V93
|
1.6 | 1.2 | 0.6 mm | 32.7680 MHz | -40°C to +85°C | ± 50 ppm | +3.3 V ± 5% |
 12.73022
|
KXO-V93 | 1.6 | 1.2 | 0.6 mm | 12.0 MHz | -40°C to +85°C | ± 25 ppm |
 +3.3 V ± 5%
|
| 12.73023 | KXO-V93 | 1.6 | 1.2 | 0.6 mm | 13.560 MHz | -40°C to +85°C | ± 50 ppm |
 +3.3 V ± 5%
|
| 12.90000 | KXO-200 | 20.8 | 13.2 | 5.08 mm | 1.0 MHz | -20°C to +70°C |
 ± 100 ppm
|
+5.0 V ± 5% |
 12.90013
|
 KXO-200
|
 20.8 | 13.2 | 5.08 mm
|
 14.187570 MHz
|
 -20°C to +70°C
|
 ± 100 ppm
|
 +5.0 V ± 5%
|
| 12.90045 | KXO-200 | 20.8 | 13.2 | 5.08 mm | 33.0 MHz |
 -20°C to +70°C
|
± 100 ppm | +5.0 V ± 5% |
| 12.90101 | KXO-200 | 20.8 | 13.2 | 5.08 mm | 1.84320 MHz |
 -20°C to +70°C
|
± 100 ppm | +5.0 V ± 5% |
| 12.90121 | KXO-200 | 20.8 | 13.2 | 5.08 mm |
 12.0 MHz
|
-20°C to +70°C | ± 100 ppm | +5.0 V ± 5% |
| 12.90124 | KXO-200 | 20.8 | 13.2 | 5.08 mm |
 14.318180 MHz
|
-20°C to +70°C | ± 100 ppm | +5.0 V ± 5% |
| 12.90126 | KXO-200 |
 20.8 | 13.2 | 5.08 mm
|
16.0 MHz | -20°C to +70°C | ± 100 ppm | +5.0 V ± 5% |
| 12.90147 | KXO-200 |
 20.8 | 13.2 | 5.08 mm
|
5.0 MHz | -20°C to +70°C | ± 100 ppm | +5.0 V ± 5% |
| 12.90149 |
 KXO-200
|
20.8 | 13.2 | 5.08 mm | 80.0 MHz | -20°C to +70°C | ± 100 ppm | +5.0 V ± 5% |
|
12.90150
|
 KXO-200
|
20.8 | 13.2 | 5.08 mm | 48.0 MHz | -20°C to +70°C | ± 100 ppm | +5.0 V ± 5% |
|
12.90151
|
KXO-200 | 20.8 | 13.2 | 5.08 mm | 50.0 MHz | -20°C to +70°C | ± 100 ppm | +5.0 V ± 5% |
| 12.90240 | KXO-400 | 20.8 | 13.2 | 5.08 mm | 20.0 MHz | -20°C to +70°C | ± 100 ppm | +5.0 V ± 5% |
 12.90300
|
 KXO-V94
|
 2.0 | 1.6 | 0.8 mm
|
 27.0 MHz
|
 -20°C to +70°C
|
 ± 50 ppm
|
 +1.8 V ± 5%
|
 12.90301
|
 KXO-V94
|
 2.0 | 1.6 | 0.8 mm
|
 1.0 MHz
|
 -40°C to +85°C
|
 ± 50 ppm
|
 +3.3 V ± 5%
|
| 12.90302 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 8.0 MHz | -40°C to +85°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90303 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 3.68640 MHz | -40°C to +85°C | ± 100 ppm | +3.3 V ± 5% |
| 12.90304 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 25.0 MHz | -40°C to +85°C | ± 100 ppm | +3.3 V ± 5% |
| 12.90305 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 20.0 MHz | -20°C to +70°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90306 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 14.0 MHz | -20°C to +70°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90307 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 1.84320 MHz | -40°C to +85°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90308 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 3.68640 MHz | -20°C to +70°C | ± 50 ppm | +3.3 V ± 5% |
 12.90309
|
KXO-V94 | 2.0 | 1.6 | 0.8 mm | 25.0 MHz | -20°C to +70°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90310 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 1.84320 MHz | -20°C to +70°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90311 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 14.74560 MHz | -40°C to +85°C | ± 100 ppm | +3.3 V ± 5% |
| 12.90312 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 40.0 MHz | -40°C to +85°C | ± 50 ppm | +1.8 V ± 5% |
| 12.90313 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 40.0 MHz | -20°C to +70°C | ± 50 ppm | +1.8 V ± 5% |
| 12.90314 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 19,20 MHz | -40°C to +85°C | ± 20 ppm | +1.8 V ± 5% |
| 12.90315 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 20.0 MHz | -40°C to +85°C | ± 25 ppm | +3.3 V ± 5% |
| 12.90316 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 26.0 MHz | -40°C to +85°C | ± 20 ppm | +1.8 V ± 5% |
| 12.90317 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 38.40 MHz | -40°C to +85°C | ± 20 ppm | +1.8 V ± 5% |
| 12.90318 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 40.0 MHz | -40°C to +85°C | ± 25 ppm | +3.3 V ± 5% |
| 12.90319 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 52.0 MHz | -40°C to +85°C | ± 20 ppm | +1.8 V ± 5% |
| 12.90320 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 27.0 MHz | -40°C to +85°C | ± 100 ppm | +3.3 V ± 5% |
| 12.90321 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 14.74560 MHz | -40°C to +85°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90322 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 20.0 MHz | -40°C to +85°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90323 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 25.0 MHz | -40°C to +85°C | ± 25 ppm | +3.3 V ± 5% |
| 12.90324 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 27.0 MHz | -40°C to +85°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90325 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 3.68640 MHz | -40°C to +85°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90327 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 48.0 MHz | -40°C to +85°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90328 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 16.0 MHz | -40°C to +85°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90329 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 32.0 MHz | -40°C to +85°C | ± 50 ppm | +3.3 V ± 5% |
| 12.90330 | KXO-V94 | 2.0 | 1.6 | 0.8 mm | 10.0 MHz | -40°C to +85°C | ± 100 ppm | +3.3 V ± 5% |
