AKER进口品牌|CTS3-32.768-12.5-20-X-R|3215贴片晶振

产品简介

AKER进口品牌|CTS3-32.768-12.5-20-X-R|3215贴片晶振,AKER进口晶振,台湾晶振,CTS3无源晶振,CTS3-32.768-12.5-20-X-R晶振,3215晶振,石英贴片晶振,晶体谐振器,二脚贴片晶振,频率32.768KHz,负载12.5pF,工作温度-40~85°C,频率稳定性20ppm,高可靠性晶振,无铅环保晶振,小体积晶振,以太网晶振,数字电视晶振,数字电表晶振,固态硬盘晶振.

产品详情

TH-1 890

AKER进口品牌|CTS3-32.768-12.5-20-X-R|3215贴片晶振,AKER进口晶振,台湾晶振,CTS3无源晶振,CTS3-32.768-12.5-20-X-R晶振,3215晶振,石英贴片晶振,晶体谐振器,二脚贴片晶振,频率32.768KHz,负载12.5pF,工作温度-40~85°C,频率稳定性20ppm,高可靠性晶振,无铅环保晶振,小体积晶振,以太网晶振,数字电视晶振,数字电表晶振,固态硬盘晶振.

AKER进口品牌|CTS3-32.768-12.5-20-X-R|3215贴片晶振特点：

•微处理器晶体单元

•32.768KHz

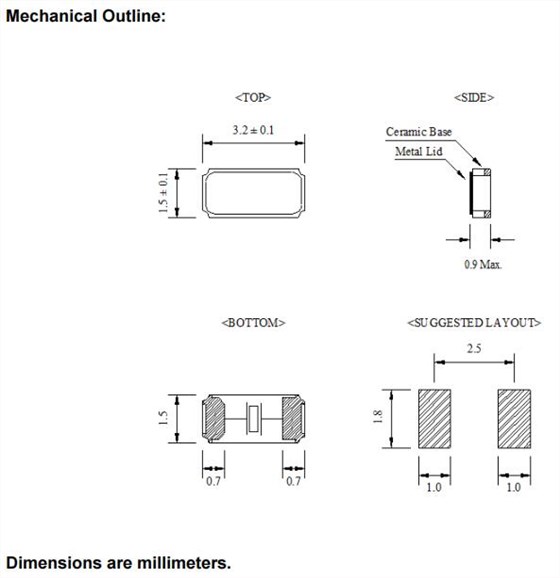

•3.2x 1.5毫米表面安装

•热塑包装

•产品通用规格

TH-2 890

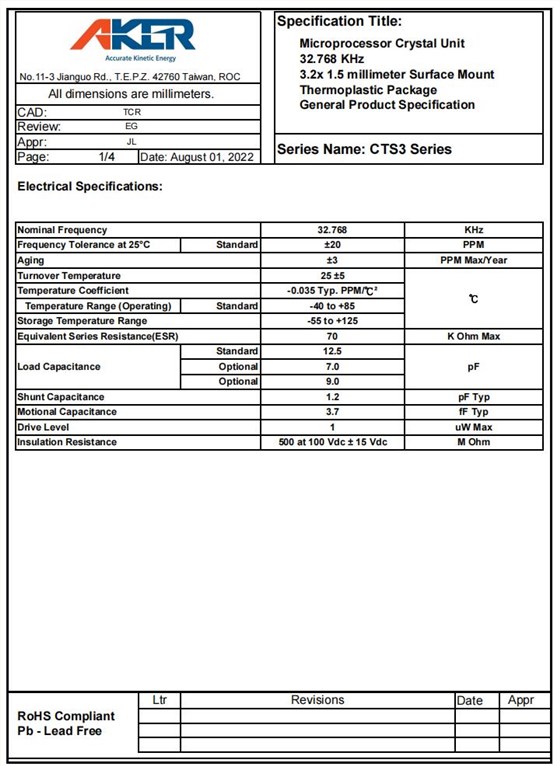

AKER进口品牌|CTS3-32.768-12.5-20-X-R|3215贴片晶振规格表

Frequency Range		32.768	KHz
Frequency Tolerance at 25°C	Standard	±20	PPM Max
Aging		±3	PPM Max/Year
Turnover Temperature		25 ±5	℃
Temperature Coefficient		-0.035 Typ. PPM/℃²
Temperature Range (Operating)	Standard	-40 to +85
Storage Temperature Range		-55 to +125
Equivalent Series Resistance(ESR)		70	K Ohm Max
Load Capacitance	Standard	12.5	pF
	Optional	7.0
	Optional	9.0
Shunt Capacitance		1.2	pF Typ
Motional Capacitance		3.7	fF Typ
Drive Level		1	uW Max
Insulation Resistance		500 at 100 Vdc± 15Vdc	M Ohm
