Anderson晶振|AE-305-N-H-2-4085-3R3-50M000000|正方形钟振,欧美进口晶振,Anderson晶振,AE305正方形钟振,有源晶振,AE-305-N-H-2-4085-3R3-50M000000晶振,石英晶振,晶体振荡器,四脚插件晶振,频率50MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,低老化晶振,高稳定性晶振,耐高温晶振,数字式摄像机存储晶振,无线接入点晶振,多功能打印机晶振,通用处理器晶振.
Anderson晶振|AE-305-N-H-2-4085-3R3-50M000000|正方形钟振特点：
-频率范围:500.000KHz至155.520 MHz
-缝焊封装，紧凑，薄
-在频率稳定性、老化性、精度、可靠性等方面表现出优异的技术性能。
Anderson晶振|AE-305-N-H-2-4085-3R3-50M000000|正方形钟振规格表
Output Waveform(Symmetrical
___squarewave
23.999 MHz
49.999 MHz
155.520 MHz
Electrical Specifications
500.000 KHz to 155.520 MHz Half Size 3.3 Volt Clock Oscillator
Parameters
Conditions
Minimum
Nominal
Maximum
Units
Center Frequency (fo)
0.50000
155.52000
MHz
Frequency Stability
±10
±100
ppm
Best Frequency Stability
-10°C to +70°C
-10
-10
ppm
-40°C to +85°C
-25
+25
-10°C to +70°C
-100
+100
-40°C to +85°C
-100
+100
Rise Times (RT) & Fall Times (FT)
5.0
10.0
nSec
Duty Cycle (@1.4V)
40
50
60
% (Percent)
HCMOS/TTL
Load
10 / 15
TTL/pf
Supply Voltage (Vcc)
2.97
3.3
3.63
Volts
Operating Temperature Range
-40
+85
oc/Degrees
Storage Temperature Range
-55
+125
Start-Up Time
10
mS
Low Level Output Voltage (Level 0:)
0.1
Vdd
High Level Output Voltage (Level 1:)
0.9
Input Current
15
mA
35
45

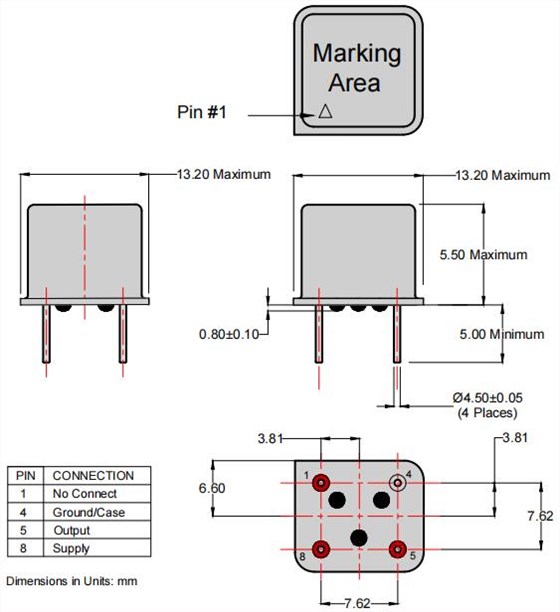

Anderson晶振|AE-305-N-H-2-4085-3R3-50M000000|正方形钟振尺寸图
