C3291-18.432,Crystek低抖动晶振,7050mm,HCMOS时钟振荡器,美国Crystek晶振,瑞斯克晶振,型号:C32xx系列晶振,编码:C3291-18.432,频率:18.432MHz,频率稳定性:±25ppm,工作温度范围:0℃至+70℃,工作电压为:5.0V,HCMOS输出晶振,小体积晶振尺寸:7.0x5.0x1.8mm封装,四脚贴片晶振,有源晶振,石英晶体振荡器,时钟振荡器。具有超小型,轻薄型,高性能,高精度,高品质等特点。应用范围:数字视频,无线蓝牙,存储区域网络,宽带接入晶振,以太网、千兆以太网等应用。
进口晶振型号C32xx系列是一个1.544MHz到100.000MHz的HCMOS时钟振荡器,工作电压5.0V。该振荡器利用基本或高Q第三泛音晶体设计,提供非常低的抖动和相位噪声。输出信号中没有子谐波。
C3291-18.432,Crystek低抖动晶振,7050mm,HCMOS时钟振荡器,规格表
Frequency Range: | 18.432 MHz |
Frequency Stability Options: | ±20*, ±25, ±50, ±100 (ppm) |
Temperature Range: (standard) | 0°C to +70°C |
(Option “M”) | -20°C to +70°C |
(Option “E”*) | -40°C to +85°C |
Storage Temperature: | -45°C to 90°C |
Input Voltage: | 5.0V ±0.5V |
Input Current: | 60mA Max |
Standby Current: | 10uA Max |
Output: | HCMOS |
Symmetry: | |
(Standard “2”) | 40/60% Max @ 50% Vdd |
(Option “9”) | 45/55% Max @ 50% Vdd |
Rise/Fall Time: | 6ns Max @ 20% to 80% Vdd |
Logic: | "0" = 10% Vdd Max |
"1" = 90% Vdd Min | |
Disable Time: | 200ns Max |
Start-up Time: | 10ms Max |
Load: | 30pF Max |
Jitter RMS: 12kHz~20MHz | 0.5ps Typical, 1ps Max |
Sub-harmonics: | None |
Aging: | <3ppm 1styear, <1ppm every year thereafter |

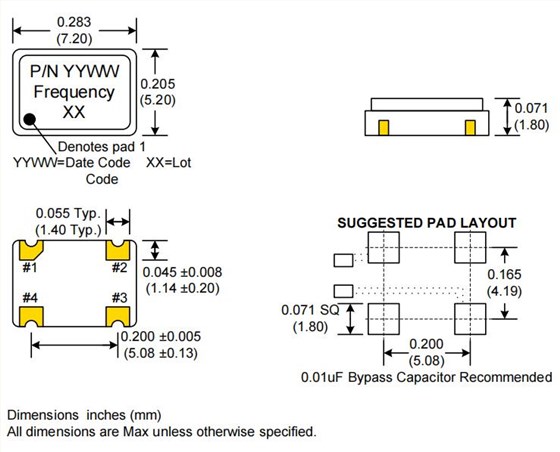

C3291-18.432,Crystek低抖动晶振,7050mm,HCMOS时钟振荡器,尺寸图
原厂代码 | 晶振厂家 | 型号 | 类型 | 频率 |
C3291-1.544 | Crystek晶振 | C3291 | XO (Standard) | 1.544MHz |
C3291-1.843200 | Crystek晶振 | C3291 | XO (Standard) | 1.8432MHz |
C3291-10.000 | Crystek晶振 | C3291 | XO (Standard) | 10MHz |
C3291-12.000 | Crystek晶振 | C3291 | XO (Standard) | 12MHz |
C3291-12.288 | Crystek晶振 | C3291 | XO (Standard) | 12.288MHz |
C3291-12.352 | Crystek晶振 | C3291 | XO (Standard) | 12.352MHz |
C3291-14.318180 | Crystek晶振 | C3291 | XO (Standard) | 14.31818MHz |
C3291-15.360 | Crystek晶振 | C3291 | XO (Standard) | 15.36MHz |
C3291-16.000 | Crystek晶振 | C3291 | XO (Standard) | 16MHz |
C3291-16.384 | Crystek晶振 | C3291 | XO (Standard) | 16.384MHz |
C3291-18.432 | Crystek晶振 | C3291 | XO (Standard) | 18.432MHz |
C3291-19.440 | Crystek晶振 | C3291 | XO (Standard) | 19.44MHz |
C3291-2.048 | Crystek晶振 | C3291 | XO (Standard) | 2.048MHz |
C3291-20.000 | Crystek晶振 | C3291 | XO (Standard) | 20MHz |
C3291-20.480 | Crystek晶振 | C3291 | XO (Standard) | 20.48MHz |
C3291-24.000 | Crystek晶振 | C3291 | XO (Standard) | 24MHz |
C3291-24.704 | Crystek晶振 | C3291 | XO (Standard) | 24.704MHz |
C3291-25.000 | Crystek晶振 | C3291 | XO (Standard) | 25MHz |
C3291-3.686400 | Crystek晶振 | C3291 | XO (Standard) | 3.6864MHz |
C3291-30.000 | Crystek晶振 | C3291 | XO (Standard) | 30MHz |
C3291-32.000 | Crystek晶振 | C3291 | XO (Standard) | 32MHz |
C3291-32.768 | Crystek晶振 | C3291 | XO (Standard) | 32.768MHz |
C3291-33.000 | Crystek晶振 | C3291 | XO (Standard) | 33MHz |
C3291-33.333 | Crystek晶振 | C3291 | XO (Standard) | 33.333MHz |
C3291-35.000 | Crystek晶振 | C3291 | XO (Standard) | 35MHz |
C3291-4.000 | Crystek晶振 | C3291 | XO (Standard) | 4MHz |
C3291-40.000 | 晶体振荡器 | C3291 | XO (Standard) | 40MHz |
C3291-44.736 | Crystek晶振 | C3291 | XO (Standard) | 44.736MHz |
C3291-45.000 | Crystek晶振 | C3291 | XO (Standard) | 45MHz |
C3291-49.152 | Crystek晶振 | C3291 | XO (Standard) | 49.152MHz |
C3291-50.000 | Crystek晶振 | C3291 | XO (Standard) | 50MHz |
C3291-51.840 | Crystek晶振 | C3291 | XO (Standard) | 51.84MHz |
C3291-6.176 | Crystek晶振 | C3291 | XO (Standard) | 6.176MHz |
C3291-7.372800 | Crystek晶振 | C3291 | XO (Standard) | 7.3728MHz |
C3291-8.000 | Crystek晶振 | C3291 | XO (Standard) | 8MHz |
CE3291-1.544 | Crystek晶振 | C3291 | XO (Standard) | 1.544MHz |
CE3291-1.843200 | Crystek晶振 | C3291 | XO (Standard) | 1.8432MHz |
CE3291-10.000 | Crystek晶振 | C3291 | XO (Standard) | 10MHz |
CE3291-12.000 | Crystek晶振 | C3291 | XO (Standard) | 12MHz |
CE3291-12.288 | Crystek晶振 | C3291 | XO (Standard) | 12.288MHz |
CE3291-12.352 | Crystek晶振 | C3291 | XO (Standard) | 12.352MHz |
CE3291-14.318180 | Crystek晶振 | C3291 | XO (Standard) | 14.31818MHz |
CE3291-15.360 | Crystek晶振 | C3291 | XO (Standard) | 15.36MHz |
CE3291-16.000 | Crystek晶振 | C3291 | XO (Standard) | 16MHz |
CE3291-16.384 | Crystek晶振 | C3291 | XO (Standard) | 16.384MHz |
CE3291-18.432 | Crystek晶振 | C3291 | XO (Standard) | 18.432MHz |
CE3291-19.440 | Crystek晶振 | C3291 | XO (Standard) | 19.44MHz |
CE3291-2.048 | Crystek晶振 | C3291 | XO (Standard) | 2.048MHz |
CE3291-20.000 | Crystek晶振 | C3291 | XO (Standard) | 20MHz |
CE3291-20.480 | Crystek晶振 | C3291 | XO (Standard) | 20.48MHz |
CE3291-24.000 | Crystek晶振 | C3291 | XO (Standard) | 24MHz |
CE3291-24.704 | Crystek晶振 | C3291 | XO (Standard) | 24.704MHz |
CE3291-25.000 | Crystek晶振 | C3291 | XO (Standard) | 25MHz |
CE3291-3.686400 | Crystek晶振 | C3291 | XO (Standard) | 3.6864MHz |
CE3291-30.000 | Crystek晶振 | C3291 | XO (Standard) | 30MHz |
CE3291-32.000 | Crystek晶振 | C3291 | XO (Standard) | 32MHz |
CE3291-32.768 | Crystek晶振 | C3291 | XO (Standard) | 32.768MHz |
CE3291-33.000 | Crystek晶振 | C3291 | XO (Standard) | 33MHz |
CE3291-33.333 | Crystek晶振 | C3291 | XO (Standard) | 33.333MHz |
CE3291-35.000 | Crystek晶振 | C3291 | XO (Standard) | 35MHz |
CE3291-4.000 | Crystek晶振 | C3291 | XO (Standard) | 4MHz |
CE3291-40.000 | Crystek晶振 | C3291 | XO (Standard) | 40MHz |
CE3291-6.176 | Crystek晶振 | C3291 | XO (Standard) | 6.176MHz |
CE3291-7.372800 | Crystek晶振 | C3291 | XO (Standard) | 7.3728MHz |
CE3291-8.000 | Crystek晶振 | C3291 | XO (Standard) | 8MHz |
C3291-60.000 | Crystek晶振 | C3291 | XO (Standard) | 60MHz |
C3291-64.000 | Crystek晶振 | C3291 | XO (Standard) | 64MHz |
C3291-66.666600 | Crystek晶振 | C3291 | XO (Standard) | 66.6666MHz |
CE3291-44.736 | Crystek晶振 | C3291 | XO (Standard) | 44.736MHz |
CE3291-45.000 | Crystek晶振 | C3291 | XO (Standard) | 45MHz |
CE3291-49.152 | Crystek晶振 | C3291 | XO (Standard) | 49.152MHz |
C3291-75.000 | Crystek晶振 | C3291 | XO (Standard) | 75MHz |
CE3291-50.000 | Crystek晶振 | C3291 | XO (Standard) | 50MHz |
CE3291-51.840 | Crystek晶振 | C3291 | XO (Standard) | 51.84MHz |
CE3291-60.000 | Crystek晶振 | C3291 | XO (Standard) | 60MHz |
CE3291-64.000 | Crystek晶振 | C3291 | XO (Standard) | 64MHz |
CE3291-66.666600 | Crystek晶振 | C3291 | XO (Standard) | 66.6666MHz |
CE3291-75.000 | Crystek晶振 | C3291 | XO (Standard) | 75MHz |
C3291-80.000 | Crystek晶振 | C3291 | XO (Standard) | 80MHz |
CE3291-80.000 | Crystek晶振 | C3291 | XO (Standard) | 80MHz |
C3291-100.000 | Crystek晶振 | C3291 | XO (Standard) | 100MHz |
C3291-106.250 | Crystek晶振 | C3291 | XO (Standard) | 106.25MHz |
CE3291-100.000 | Crystek晶振 | C3291 | XO (Standard) | 100MHz |
CE3291-106.250 | Crystek晶振 | C3291 | XO (Standard) | 106.25MHz |
