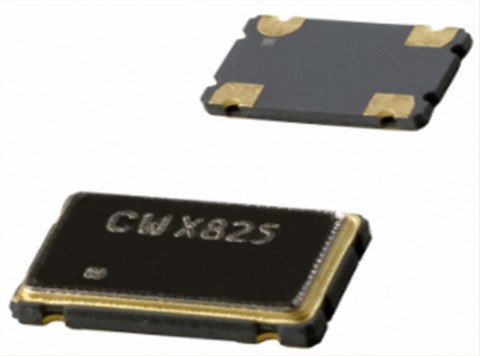

CWX825-15.36M,7050mm,ConnorWinfield导航仪晶振

CWX825-15.36M,7050mm,ConnorWinfield导航仪晶振，美国ConnorWinfield晶振，康纳温菲尔德晶振，型号：CWX8xx系列，编码为：CWX825-15.36M石英晶振，频率为：15.36MHz，频率稳定性：±50ppm，电压5.0V，工作温度范围：-20℃至+70℃，是一款小体积晶振尺寸：7.0x5.0mm四脚贴片晶振，CMOS输出晶振，有源晶振，石英晶体振荡器(XO)。为使用而设计在要求严格频率的应用中稳定性和低抖动，表面贴装CMOS时钟晶体振荡器系列，封装设计用于高密度安装，应用于：通讯设备晶振，无线网络晶振，北斗导航晶振，GPS定位系统，导航仪，医疗设备，物联网等应用。

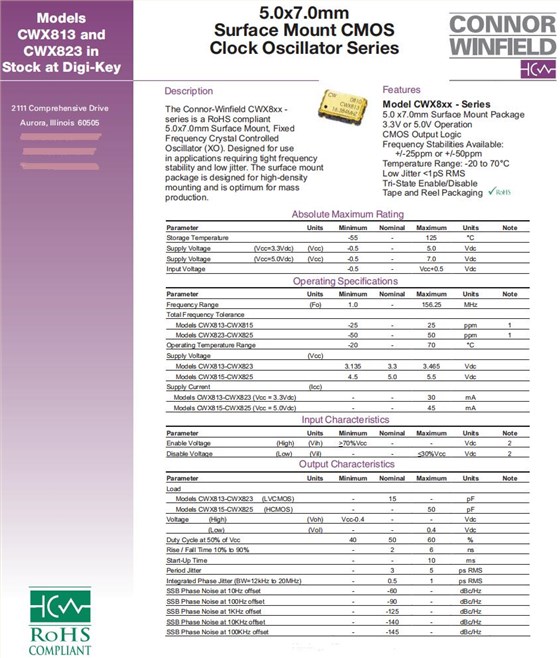

CWX825-15.36M,7050mm,ConnorWinfield导航仪晶振，参数表

型号	CWX825
频率	15.36MHz
电源电压	5.0V
输入电压	Vcc+0.5
输出	CMOS
工作温度	-20 °C ~ +70 °C
保存温度	-55 °C ~ +125 °C

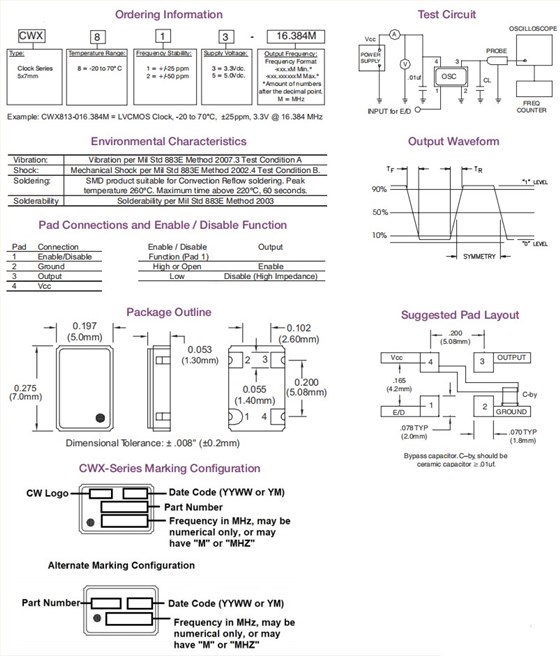

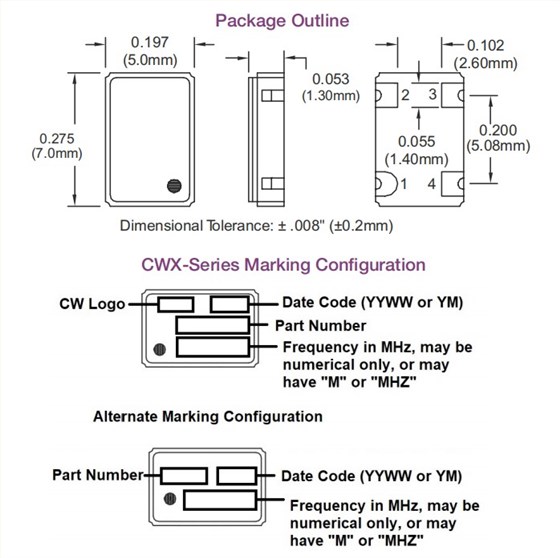

CWX825-15.36M,7050mm,ConnorWinfield导航仪晶振，尺寸图

原厂代码	晶振厂家	型号	频率	工作温度	包装/封装
CWX825-1.544M	ConnorWinfield晶振	CWX825	1.544MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-1.8432M	ConnorWinfield晶振	CWX825	1.8432MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-3.6864M	ConnorWinfield晶振	CWX825	3.6864MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-4.0M	ConnorWinfield晶振	CWX825	4MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-7.3728M	ConnorWinfield晶振	CWX825	7.3728MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-8.0M	ConnorWinfield晶振	CWX825	8MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-10.0M	ConnorWinfield晶振	CWX825	10MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-12.0M	ConnorWinfield晶振	CWX825	12MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-12.288M	ConnorWinfield晶振	CWX825	12.288MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-14.31818M	ConnorWinfield晶振	CWX825	14.31818MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-15.36M	ConnorWinfield晶振	CWX825	15.36MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-16.0M	ConnorWinfield晶振	CWX825	16MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-16.384M	ConnorWinfield晶振	CWX825	16.384MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-18.432M	ConnorWinfield晶振	CWX825	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-19.44M	ConnorWinfield晶振	CWX825	19.44MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-20.0M	ConnorWinfield晶振	CWX825	20MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-20.48M	ConnorWinfield晶振	CWX825	20.48MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-24.0M	ConnorWinfield晶振	CWX825	24MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-24.576M	ConnorWinfield晶振	CWX825	24.576MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-25.0M	ConnorWinfield晶振	CWX825	25MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-27.0M	ConnorWinfield晶振	CWX825	27MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-29.4912M	ConnorWinfield晶振	CWX825	29.4912MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-30.0M	ConnorWinfield晶振	CWX825	30MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-32.0M	ConnorWinfield晶振	CWX825	32MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-33.0M	ConnorWinfield晶振	CWX825	33MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-33.333M	ConnorWinfield晶振	CWX825	33.333MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-40.0M	ConnorWinfield晶振	CWX825	40MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-44.736M	ConnorWinfield晶振	CWX825	44.736MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-45.0M	ConnorWinfield晶振	CWX825	45MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-49.152M	ConnorWinfield晶振	CWX825	49.152MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-50.0M	ConnorWinfield晶振	CWX825	50MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-60.0M	ConnorWinfield晶振	CWX825	60MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-64.0M	ConnorWinfield晶振	CWX825	64MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-66.6666M	ConnorWinfield晶振	CWX825	66.6666MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-72.0M	ConnorWinfield晶振	CWX825	72MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-80.0M	ConnorWinfield晶振	CWX825	80MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-100.0M	ConnorWinfield晶振	CWX825	100MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-125.0M	ConnorWinfield晶振	CWX825	125MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX825-156.25M	ConnorWinfield晶振	CWX825	156.25MHz	-20°C ~ 70°C	4-SMD, No Lead
