CT20M26.0000F10V1T-100|NKG Crystal|TAIHETH

产品简介

CT20M26.0000F10V1T-100|NKG Crystal|TAIHETH,NKG晶振,CT20M热敏晶振,CT20M26.0000F10V1T-100晶振,进口无源晶振,石英晶体谐振器,2016贴片晶振,非常适合与内置温度补偿振荡器电路的ic一起使用,频率26MHz,负载10pF,工作温度-30~85°C,频率稳定性12ppm,超小型晶振,高可靠性晶振,低老化晶振,电信应用程序晶振,蓝牙音响晶振,移动通信晶振,可穿戴设备晶振.

产品详情

TH-1 890

CT20M26.0000F10V1T-100|NKG Crystal|TAIHETH特点：

•内置热敏电阻100kΩ用于温度测量。
•非常适合与内置温度补偿振荡器电路的ic一起使用。

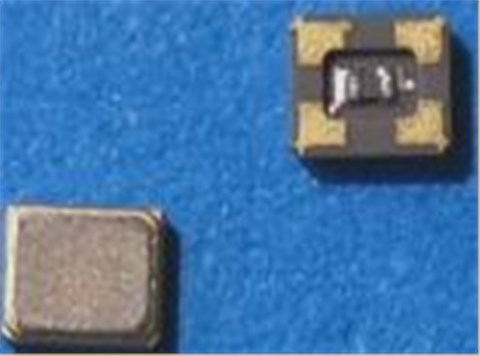

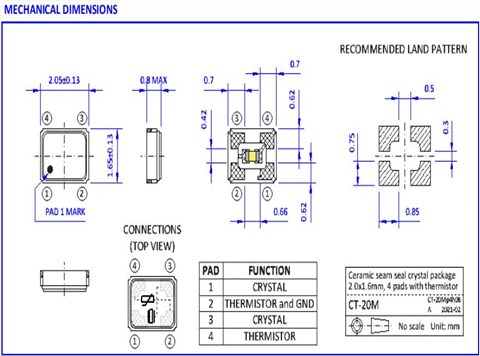

•高度可靠的包装尺寸2.0 x 1.6 x 0.7mm，带有4个衬垫。

TH-2 890

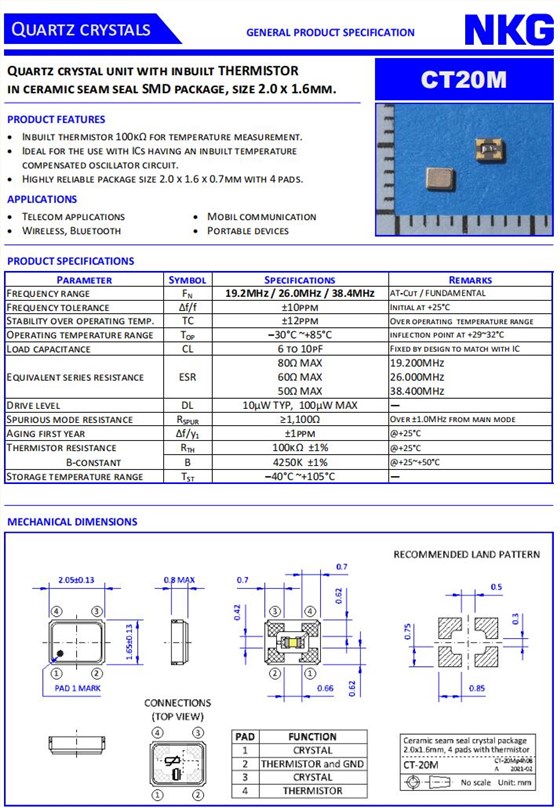

CT20M26.0000F10V1T-100|NKG Crystal|TAIHETH规格表

PARAMETER	SYMBOL	SPECIFICATIONS	REMARKS
FREQUEN CY RAN GE	FA	26MHZ	-
CUT AND OPERATION MODE	-	AT-CUT / FUNDAMENTAL	-
FREQUENCY TOLERANCE	Δf/f	±10PPM	Initial at +25°C
STABILITY OVER OPERATING TEMP.	TC	±12PPM	Over operating temperature range
OPERATING TEMPERATURE RANGE	Top	-30°C~+85°C	inflection point at +29~32°C
LOAD CAPACITAN CE	CL	10PF	PLEASE SPECIFY LOAD CAPACITANCE
EQUIVALENT SERIES RESISTANCE	ESR	80ΩMAX 60Ω MAX 50ΩMAX	19.200MHz 26.000MHz 38.400MHz
DRIVE LEVEL	DL	100μW TYP,300μW MAX	-
Spurious mode resistance	RSPUR	≥1,100Ω	Over ±1.0MHz from main mode
AGING FIRST YEAR	△f/yi	±1 PPM	@+25°C
Thermistor resistance B-constant	RTH	100kΩ ±1%	@+25°C
Thermistor resistance B-constant	B	4250K ±1%	@+25~+50°C
Storage temperature range	TST	–40°C ~+105°C
