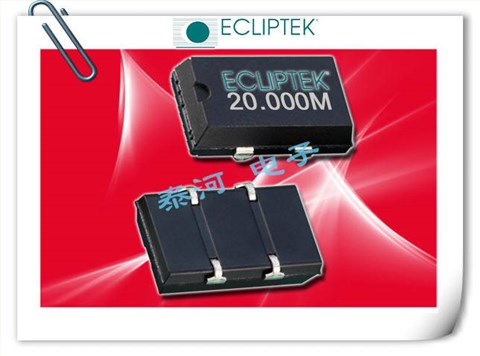

EH1400SJETTS-64.000M,Ecliptek日蚀晶振,物联网应用晶振,美国进口晶振,Ecliptek晶振,日蚀晶振,型号:EH14系列,编码为:EH1400SJETTS-64.000M,频率:64.000MHz,电压:5V,工作温度范围:-40℃至+85℃,频率稳定性:±100ppm,CMOS输出晶振,小体积晶振尺寸:14x9.8x4.7mm表面封装,四脚贴片晶振,石英晶体时钟振荡器XO,SPXO有源晶振,SMD晶振,石英晶振,石英晶体振荡器。具有超小型,轻薄型,高品质,高性能,高可靠性,耐热及耐环境等特点。应用于:车载晶振,物联网晶振,导航仪晶振,无线网络晶振,医疗设备晶振,数码电子等应用。

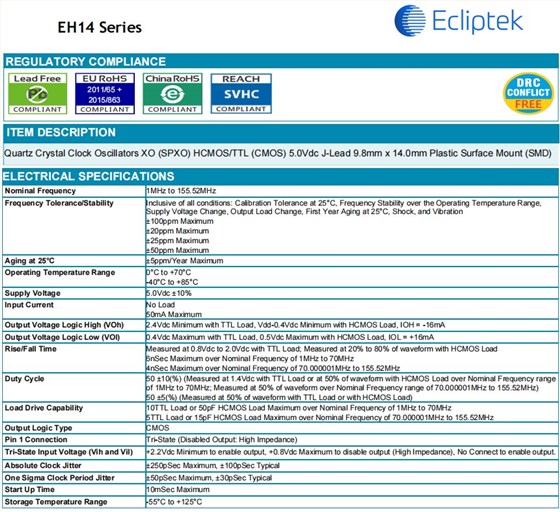

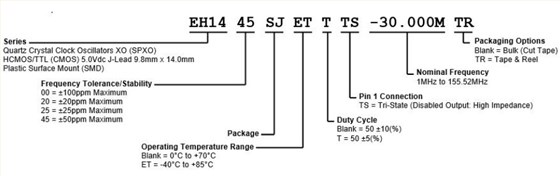

EH1400SJETTS-64.000M,Ecliptek日蚀晶振,物联网应用晶振,规格表
Nominal Frequency | 64 MHz | |||||||
Frequency Tolerance/Stability | Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range, Supply Voltage Change, Output Load Change, First Year Aging at 25°C, Shock, and Vibration ±100ppm Maximum ±20ppm Maximum ±25ppm Maximum ±50ppm Maximum |
|||||||
Aging at 25°C | ±5ppm/Year Maximum | |||||||
Operating Temperature Range | 0°C to +70°C -40°C to +85°C |
|||||||
Supply Voltage | 5.0Vdc ±10% | |||||||
Input Current | No Load 50mA Maximum |
|||||||
Output Voltage Logic High (VOh) | 2.4Vdc Minimum with TTL Load, Vdd-0.4Vdc Minimum with HCMOS Load, IOH = -16mA | |||||||
Output Voltage Logic Low (VOl) | 0.4Vdc Maximum with TTL Load, 0.5Vdc Maximum with HCMOS Load, IOL = +16mA | |||||||
Rise/Fall Time | Measured at 0.8Vdc to 2.0Vdc with TTL Load; Measured at 20% to 80% of waveform with HCMOS Load 6nSec Maximum over Nominal Frequency of 1MHz to 70MHz 4nSec Maximum over Nominal Frequency of 70.000001MHz to 155.52MHz |
|||||||
Duty Cycle | 50 ±10(%) (Measured at 1.4Vdc with TTL Load or at 50% of waveform with HCMOS Load over Nominal Frequency range of 1MHz to 70MHz; Measured at 50% of waveform over Nominal Frequency range of 70.000001MHz to 155.52MHz) 50 ±5(%) (Measured at 50% of waveform with TTL Load or with HCMOS Load) |
|||||||
Load Drive Capability | 10TTL Load or 50pF HCMOS Load Maximum over Nominal Frequency of 1MHz to 70MHz 5TTL Load or 15pF HCMOS Load Maximum over Nominal Frequency of 70.000001MHz to 155.52MHz |
|||||||
Output Logic Type | CMOS | |||||||
Pin 1 Connection | Tri-State (Disabled Output: High Impedance) | |||||||
Tri-State Input Voltage (Vih and Vil) | +2.2Vdc Minimum to enable output, +0.8Vdc Maximum to disable output (High Impedance), No Connect to enable output. | |||||||
Absolute Clock Jitter | ±250pSec Maximum, ±100pSec Typical | |||||||
One Sigma Clock Period Jitter | ±50pSec Maximum, ±30pSec Typical | |||||||
Start Up Time | 10mSec Maximum | |||||||
Storage Temperature Range | -55°C to +125°C |

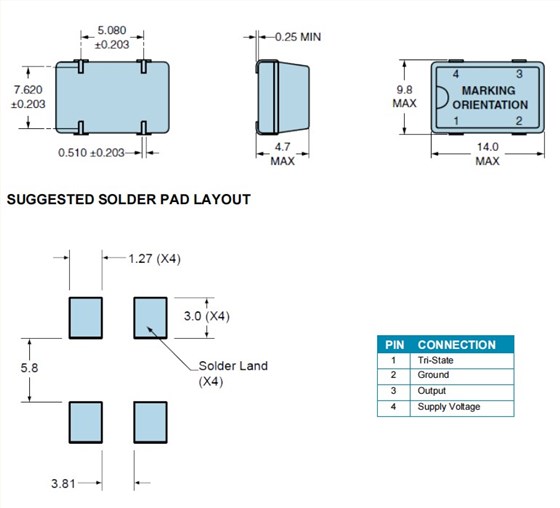

EH1400SJETTS-64.000M,Ecliptek日蚀晶振,物联网应用晶振,尺寸图
产品编码 | 进口晶振 | 型号 | 频率 | 长 | 宽 | 高 |
EH1400SJETTS-1.000M | Ecliptek晶振 | EH14 | 1 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTS-11.0592M TR | Ecliptek晶振 | EH14 | 11.0592 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTS-25.000M | Ecliptek晶振 | EH14 | 25 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTS-32.000M TR | Ecliptek晶振 | EH14 | 32 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTS-40.000M | Ecliptek晶振 | EH14 | 40 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTS-5.000M | Ecliptek晶振 | EH14 | 5 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTS-5.000M TR | Ecliptek晶振 | EH14 | 5 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTS-64.000M | Ecliptek晶振 | EH14 | 64 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTS-70.656M | Ecliptek晶振 | EH14 | 70.656 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTTS-1.8432M | Ecliptek晶振 | EH14 | 1.8432 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTTS-16.667M | Ecliptek晶振 | EH14 | 16.667 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTTS-16.670M | Ecliptek晶振 | EH14 | 16.67 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTTS-16.670M TR | Ecliptek晶振 | EH14 | 16.67 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTTS-20.000M | Ecliptek晶振 | EH14 | 20 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTTS-32.000M | 贴片晶振 | EH14 | 32 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTTS-36.000M | Ecliptek晶振 | EH14 | 36 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJETTTS-40.000M | Ecliptek晶振 | EH14 | 40 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJTS-16.000M | Ecliptek晶振 | EH14 | 16 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJTTS-39.3216M TR | Ecliptek晶振 | EH14 | 39.3216 MHz | 14mm | 9.8mm | 4.7mm |
EH1400SJTTS-4.9152M TR | Ecliptek晶振 | EH14 | 4.9152 MHz | 14mm | 9.8mm | 4.7mm |
EH1420SJETTS-5.000M TR | Ecliptek晶振 | EH14 | 5 MHz | 14mm | 9.8mm | 4.7mm |
EH1425SJETTS-24.576M | Ecliptek晶振 | EH14 | 24.576 MHz | 14mm | 9.8mm | 4.7mm |
EH1445SJETTS-64.000M | Ecliptek晶振 | EH14 | 64 MHz | 14mm | 9.8mm | 4.7mm |
EH1445SJETTTS-64.000M | Ecliptek晶振 | EH14 | 64 MHz | 14mm | 9.8mm | 4.7mm |
EH1445SJTS-1.000M TR | Ecliptek晶振 | EH14 | 1 MHz | 14mm | 9.8mm | 4.7mm |
