Golledge Crystal|GSX-331/224DF-20.0 MHz|TAIHETH

产品简介

Golledge Crystal|GSX-331/224DF-20.0 MHz|TAIHETH,Golledge晶振,GSX-331无源晶振,GSX-331/224DF-20.0 MHz晶振,进口晶振,石英晶体谐振器,3225mm晶振,SMD晶体,频率20MHz,负载16pF,工作温度-40~85°C,频率稳定性20ppm,小体积晶振,高稳定性晶振,高质量晶振,无线网络晶振,调制解调器晶振,智能手机晶振,平板电脑晶振.

产品详情

TH-1 890

Golledge Crystal|GSX-331/224DF-20.0 MHz|TAIHETH,Golledge晶振,GSX-331无源晶振,GSX-331/224DF-20,0 MHz晶振,进口晶振,石英晶体谐振器,3225mm晶振,SMD晶体,频率20MHz,负载16pF,工作温度-40~85°C,频率稳定性20ppm,小体积晶振,高稳定性晶振,高质量晶振,无线网络晶振,调制解调器晶振,智能手机晶振,平板电脑晶振.

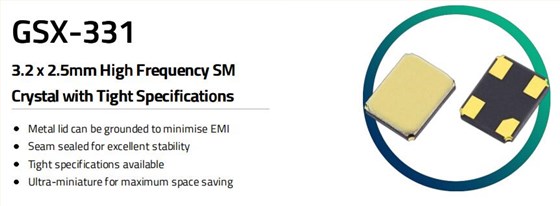

Golledge Crystal|GSX-331/224DF-20.0 MHz|TAIHETH特点：

•金属盖子可以接地，以尽量减少EMI

•接缝密封，稳定性好

•提供严格的规格

•超小型化，最大限度节省空间

TH-2 890

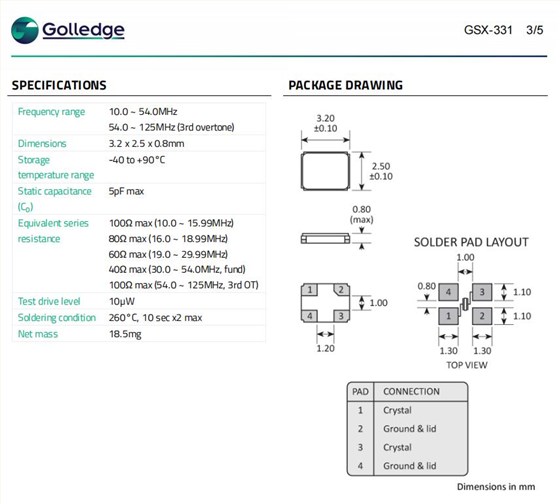

Golledge Crystal|GSX-331/224DF-20.0 MHz|TAIHETH规格表

frequency		20MHz
Dimensions		3.2x2.5x0.8mm
load capacitance CL		16pF
operating temperature range		-40°C ~ +85°C
Staticcapacitance Co		5 pFmax
storage temperature		-40°C ~ +90°C
Equivalentseries resistance		60Ω max(19.0~29.99MHz)
Test drive level		10 µW
Solderingcondition		260°C,10secx2 max
Net mass		18.5mg
Ageing		±3ppm max first year
