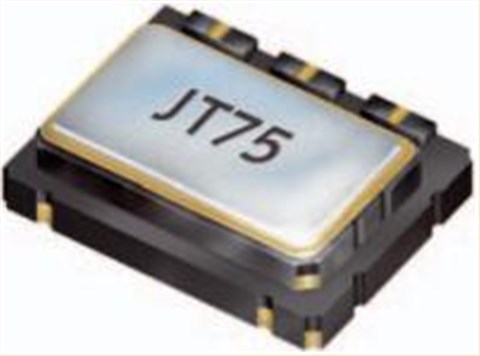

JAUCH|O 12.6-JT75V-B-A-3.3-LF|Oscillator Crystal,Jauch晶振,JT75V进口晶振,O 12.6-JT75V-B-A-3.3-LF晶振,有源晶振,石英晶体振荡器,压控温补晶振,VC-TCXO晶振,7050贴片晶振,频率12.6MHz,电压3.3V,工作温度-30~80°C,频率稳定性2.0ppm,高稳定性晶振,高品质晶振,低电源电压晶振,微处理器时钟晶振,高速转换器晶振,数据中心晶振,导航设备晶振.
JAUCH|O 12.6-JT75V-B-A-3.3-LF|Oscillator Crystal特点:
•低功耗VCTCXO或TCXO
•回流焊温度:最高260°C
•陶瓷/金属封装

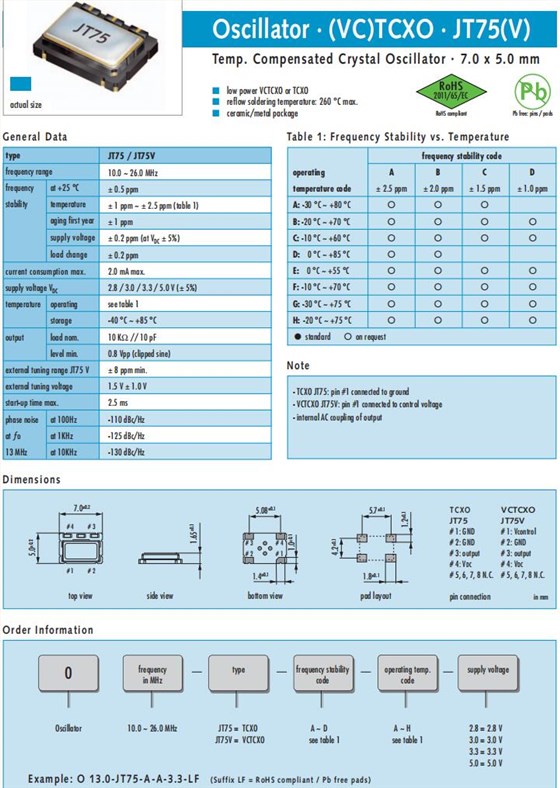

JAUCH|O 12.6-JT75V-B-A-3.3-LF|Oscillator Crystal规格表
TYPE
JT75 /JT75V
frequency range
12.6 MHz
frequency stability
at +25°℃
±0.5ppm
temperature
±2.0 ppm
aging hrst year
±1.0 ppm
supply voltage
±0.2 ppm (at Vuc±5%)
load change
±0.2ppm
current consumption
2.0 mA max
supply voltage VDC
3.3 V (±5%)
temperature
operating
-30℃-+80°C
storage
-40℃-+85℃
output
load nom
10 KΩ // 10 pF
level min.
0.8 Vpp (clipped sine)
external tuning range JT75V
±8 ppm min.
external tuning voltage
1.5 V ± 1.0 V
start-up time max.
2.5 ms
phase noise
at 100 Hz
-110 dBc/Hz typ
at ƒo
at 1 KHz
-125 dBc/Hz typ
13 MHz
at 10 KHz
-130 dBc/Hz typ.
