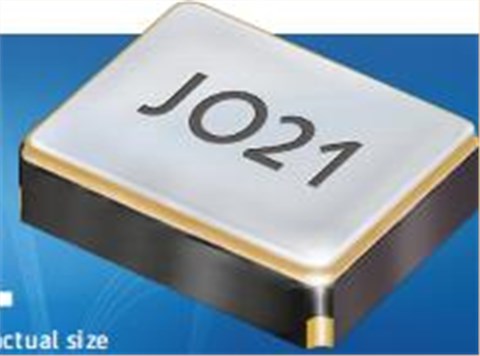

O 16.0-JO21-A-1.8-1-T3-LF|JAUCH|TAIHETH特点:

带停止功能的SMD振荡器•2.0 x 1.6 mm

LVCMOS / HCMOS兼容输出

可变电源电压1.8 V ~ 3.3 V

极低的电流消耗

接缝密封陶瓷/金属封装

TH-2 890

O 16.0-JO21-A-1.8-1-T3-LF|JAUCH|TAIHETH规格表

项目 符号 规格说明
额定频率 f_nom 16MHz
电源电压 Vcc 1.8V
储存温度 T_stg -55℃~+125℃
工作温度 T_use -40℃~ +125℃
频率稳定性 f_tol ±100 ppm
电源电流 IDD 1.6mA Max
对称性(占空比) SYM 45% ~ 55%max.
上升下降时间 tr/tf 6 ns max. (1.8V)
起始时间 t str 1ms
相位抖动 tpj < 1.0 ps RMS
TH-3 890

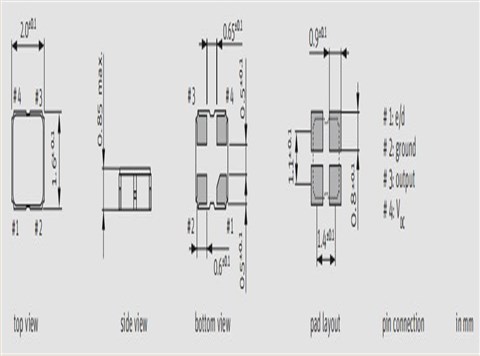

O 16.0-JO21-A-1.8-1-T3-LF|JAUCH|TAIHETH尺寸图

J021

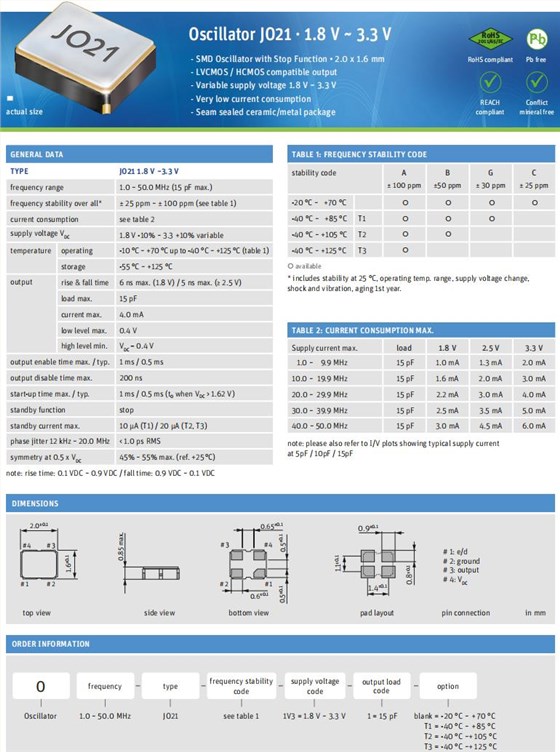

JO21-1

Jauch晶振原厂编码 制造商 型号 频率 频率容差 负载电容 Operating Mode 工作温度
Q 0.032768-JTX410-7-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
