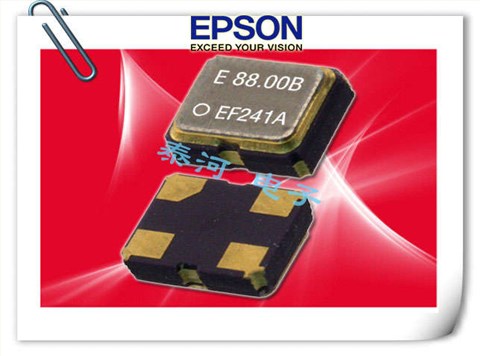

EPSON|SG-210STF 13.000000MHz L|2520|CMOS|13MHz|SMD

TH-1 890

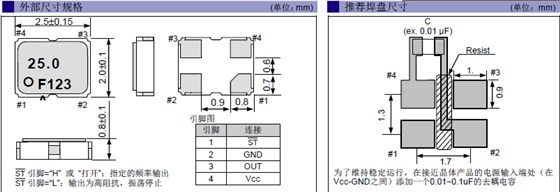

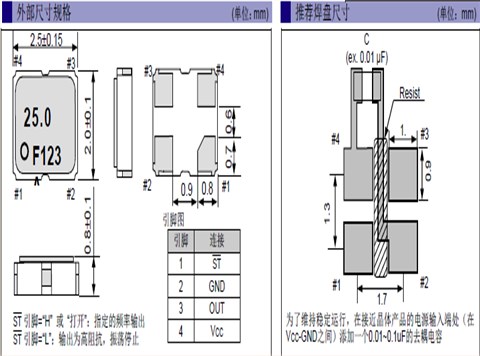

EPSON|SG-210STF 13.000000MHz L|2520|CMOS|13MHz|SMD，日本进口晶振，爱普生晶振产品系列SG-210STF，产品编码X1G004171002100，北美编码：SG-210STF13.0000ML3，是一款带CMOS输出的简单封装晶体振荡器(SPXO)系列，小体积外部尺寸2.5x2.0x0.9mm四脚贴片晶振，有源晶振，石英晶体振荡器，SMD晶振这些SPXO具有低电流消耗、1.6V至3.63V的宽工作电压和宽工作范围，标称频率：13MHz，频率公差：+/-50ppm，温度范围从-40℃至85℃，此外，最高工作温度可达105℃。功耗电流：≤ 1.8mA ，频率老化：+/-3ppm，功能：ST。该产品具有超小型，轻薄型，耐热及耐环境特点。SPXO有源晶振非常适合物联网、可穿戴设备，数据中心，医疗、工业自动化等各种应用。

TH-2 890

项目	符号	规格说明			条件
输出频率范围	f0	1MHz to 75MHz			请联系我们以便获取其它可用频率的相关信息。 http://smdcrystal.com
电源电压	VCC	1.60 V to 3.60 V			1 MHz ≦ f0≦ 60 MHz
		1.71 V to 3.60 V			60 MHz < f0≦ 75 MHz, T_use = +85°C Max.
		2.20 V to 3.60 V			60 MHz < f0≦ 75 MHz, T_use = +105°C Max.
		1.8V Typ. 1.6V to 2.2V	2.5V Typ. 2.2V to 2.7V	3.3V Typ. 2.7V to 3.6V	※1请参阅
储存温度	T_stg	-40°C to +125°C			裸存
工作温度	T_use	-40°C to +85°C / -40°C to +105°C			※1请参阅
频率稳定度	f_tol	S: ±25 × 10-6			-20°C to +70°C
		L: ±50 × 10-6			-40°C to +85°C
		Y: ±50 × 10-6, W: ±100 × 10-6			-40°C to +105°C
功耗	ICC	1.5mA Max.	1.6mA Max.	1.8mA Max.	无负载条件, 1MHz ≦ f0≦ 20MHz
		1.8mA Max.	2.0mA Max.	2.2mA Max.	无负载条件, 20MHz < f0≦ 40MHz
		2.1mA Max.	2.4mA Max.	2.6mA Max.	无负载条件, 40MHz < f0≦ 60MHz
		2.4mA Max.	2.8mA Max.	3.0mA Max.	无负载条件, 60MHz < f0≦ 75MHz
待机电流	I_std	2.1μA Max.	2.5μA Max.	2.7μA Max.	ST
占空比	SYM	45% to 55%			50% VCC级, L_CMOS ≦ 15pF
输出电压	VOH	90% VCCMin.
输出电压	VOL	10% VCCMax.
输出负载条件 (CMOS)	L_CMOS	15pF Max.
输入电压	VIH	80% VCCMin.			ST
输入电压	VIL	20% VCCMax.			ST
上升/ 下降时间	tr / tf	3.5 ns Max.	3 ns Max.		20% VCCto 80% VCC极 L_CMOS ≦ 15pF
振荡启动时间	t_str	3ms Max.			在90% VCC时，所需时间为0 秒
频率老化	f_aging	±3 × 10-6/ year Max.			+25°C,第一年, VCC=1.8V,2.5V,3.3V
SSB 相位噪音	C/N	-145dBc/Hz Typ.			@1kHz ,f0=48MHz
		-158dBc/Hz Typ.			@100kHz ,f0=48MHz
		-161dBc/Hz Typ.			@Floor Lv.

编码	爱普生晶振	Frequency/频率	LxWxH/尺寸	Output Wave/输出方式	Supply Voltage/电源电压
X1G0041710002	SG-210STF	33.300000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710005	SG-210STF	1.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710006	SG-210STF	1.843200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710007	SG-210STF	2.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710008	SG-210STF	3.686400 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710009	SG-210STF	4.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710010	SG-210STF	4.096000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710011	SG-210STF	5.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710012	SG-210STF	6.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710013	SG-210STF	6.144000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710014	SG-210STF	7.372800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710015	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710016	SG-210STF	10.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710017	SG-210STF	11.289600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710018	石英晶振	12.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710019	SG-210STF	12.288000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710020	SG-210STF	12.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710021	SG-210STF	13.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710022	SG-210STF	13.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710023	SG-210STF	13.560000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710024	SG-210STF	14.318180 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710025	SG-210STF	14.745600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710026	SG-210STF	15.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710027	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710028	SG-210STF	19.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710029	SG-210STF	20.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710030	SG-210STF	22.579200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710031	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710032	SG-210STF	24.576000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710033	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS贴片晶振	1.600 to 3.600 V
X1G0041710034	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710035	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710036	SG-210STF	27.120000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710037	SG-210STF	28.636360 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710038	SG-210STF	29.491200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710039	SG-210STF	30.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710040	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
X1G0041710041	SG-210STF	33.333000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V
