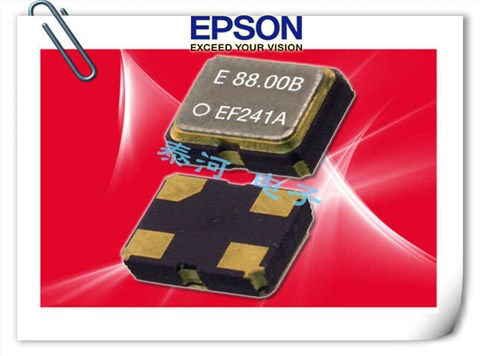

X1G0041710028/19.2MHz/2520/SPXO/-40~105℃/SG-210STF，日本爱普生株式会社，SG-210STF晶振产品编码X1G0041710028，产品型号：SG-210STF 19.200000MHz W，是一款小体积外部尺寸2.5x2.0x0.9mm四脚贴片晶振，有源晶振，石英晶体振荡器，带CMOS输出的简单封装晶体振荡器(SPXO)系列，SMD晶振这些SPXO具有低电流消耗、1.6V至3.63V的宽工作电压和宽工作范围，标称频率：19.2MHz，频率公差：+/-50ppm，温度范围从-40℃至85℃，此外，最高工作温度可达105℃。该产品具有超小型，轻薄型，耐热及耐环境特点。非常适合物联网、可穿戴设备，数据中心，医疗、工业自动化等各种应用。

爱普生晶振2520mm体积非常小的SMD晶振器件,是民用小型无线数码产品的最佳选择,小体积的晶振被应用于,手机蓝牙,GPS定位系统,无线通讯集,高频率的稳定性能,非常好的减少电磁干扰的影响,是民用无线数码产品最好的选择,符合RoHS/无铅.

TH-2 890

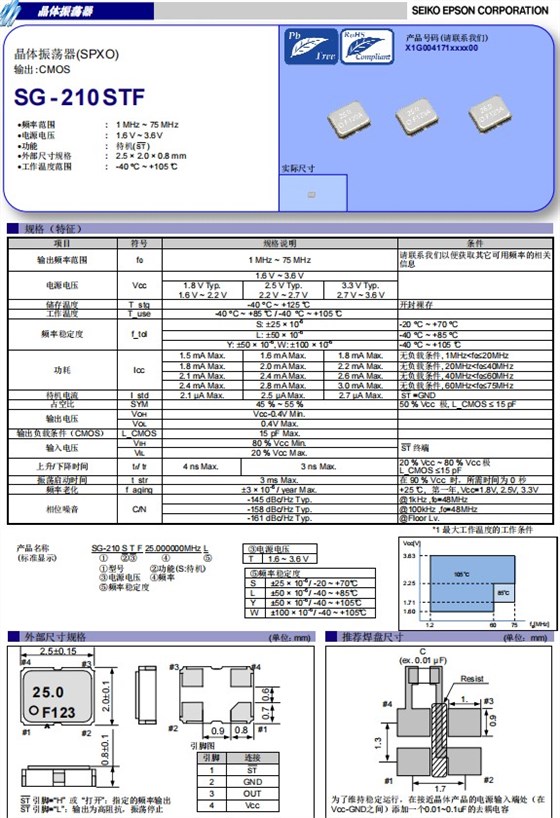

X1G0041710028/19.2MHz/2520/SPXO/-40~105℃/SG-210STF，参数图

项目	符号	规格说明			条件
输出频率范围	f0	1MHz to 75MHz			请联系我们以便获取其它可用频率的相关信息。 http://smdcrystal.com
电源电压	VCC	1.60 V to 3.60 V			1 MHz ≦ f0≦ 60 MHz
		1.71 V to 3.60 V			60 MHz < f0≦ 75 MHz, T_use = +85°C Max.
		2.20 V to 3.60 V			60 MHz < f0≦ 75 MHz, T_use = +105°C Max.
		1.8V Typ. 1.6V to 2.2V	2.5V Typ. 2.2V to 2.7V	3.3V Typ. 2.7V to 3.6V	※1请参阅
储存温度	T_stg	-40°C to +125°C			裸存
工作温度	T_use	-40°C to +85°C / -40°C to +105°C			※1请参阅
频率稳定度	f_tol	S: ±25 × 10-6			-20°C to +70°C
		L: ±50 × 10-6			-40°C to +85°C
		Y: ±50 × 10-6, W: ±100 × 10-6			-40°C to +105°C
功耗	ICC	1.5mA Max.	1.6mA Max.	1.8mA Max.	无负载条件, 1MHz ≦ f0≦ 20MHz
		1.8mA Max.	2.0mA Max.	2.2mA Max.	无负载条件, 20MHz < f0≦ 40MHz
		2.1mA Max.	2.4mA Max.	2.6mA Max.	无负载条件, 40MHz < f0≦ 60MHz
		2.4mA Max.	2.8mA Max.	3.0mA Max.	无负载条件, 60MHz < f0≦ 75MHz
待机电流	I_std	2.1μA Max.	2.5μA Max.	2.7μA Max.	ST
占空比	SYM	45% to 55%			50% VCC级, L_CMOS ≦ 15pF
输出电压	VOH	90% VCCMin.
输出电压	VOL	10% VCCMax.
输出负载条件 (CMOS)	L_CMOS	15pF Max.
输入电压	VIH	80% VCCMin.			ST
输入电压	VIL	20% VCCMax.			ST
上升/ 下降时间	tr / tf	3.5 ns Max.	3 ns Max.		20% VCCto 80% VCC极 L_CMOS ≦ 15pF
振荡启动时间	t_str	3ms Max.			在90% VCC时，所需时间为0 秒
频率老化	f_aging	±3 × 10-6/ year Max.			+25°C,第一年, VCC=1.8V,2.5V,3.3V
SSB 相位噪音	C/N	-145dBc/Hz Typ.			@1kHz ,f0=48MHz
		-158dBc/Hz Typ.			@100kHz ,f0=48MHz
		-161dBc/Hz Typ.			@Floor Lv.

X1G0041710028/19.2MHz/2520/SPXO/-40~105℃/SG-210STF，尺寸图

X1G0041710028/19.2MHz/2520/SPXO/-40~105℃/SG-210STF

[Model : SG-210STF]
Product name SG-210 S T F 25.000000MHz Y
(Standard form) ① ②③ ④ ⑤
①型号
②功能(S:待机)
③电源电压 T: 1.6V to 3.6V Typ.
④频率
⑤频率稳定度
S:±25 × 10-6 / -20 °C to +70 °C
L:±50 × 10-6 / -40 °C to +85 °C
Y:±50 × 10-6 / -40 °C to +105 °C
W:±100 × 10-6 / -40 °C to +105 °C

编码	SMD晶振	频率	尺寸	输出方式	电源电压	工作温度
X1G0041710028	SG-210STF	19.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710029	SG-210STF	20.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710030	SG-210STF	22.579200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710031	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710032	SG-210STF	24.576000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710033	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710034	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710035	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710036	SG-210STF	27.120000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710037	SG-210STF	28.636360 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710038	SG-210STF	29.491200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710039	SG-210STF	30.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710040	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710041	SG-210STF	33.333000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710042	SG-210STF	36.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710043	SG-210STF	37.400000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710044	SG-210STF	38.400000 MHz	2.50 x 2.00 x 0.90 mm	晶体振荡器	1.600 to 3.600 V	-40 to 85 °C
X1G0041710045	SG-210STF	40.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710046	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710047	SG-210STF	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710048	SG-210STF	52.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710049	SG-210STF	54.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710052	SG-210STF	8.192000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710055	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710059	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710069	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710075	SG-210STF	33.333300 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710077	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710078	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710079	SG-210STF	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710080	SG-210STF	66.666700 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V	-40 to 85 °C
X1G0041710081	SG-210STF	75.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V	-40 to 85 °C
X1G0041710083	SG-210STF	1.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710084	SG-210STF	1.228800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710085	SG-210STF	1.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710086	SG-210STF	1.536000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710087	SG-210STF	2.048000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710088	SG-210STF	2.457600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
