EG-2102CA差分晶振,X1M0000910008,EPSON通讯设备6G晶振

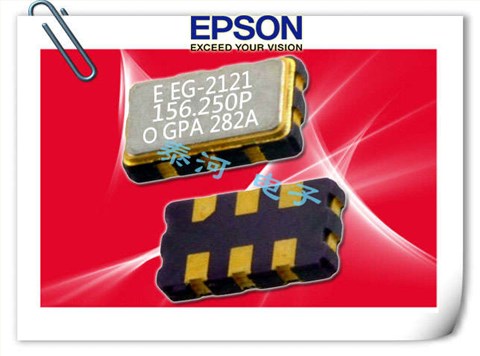

EG-2102CA差分晶振,X1M0000910008,EPSON通讯设备6G晶振，日本进口晶振，EPSON爱普生株式会社，型号为：EG-2102CA，编码为：X1M0000910008，频率为：156.250000 MHz，小体积晶振尺寸为7.0x5.0x1.2mm，六脚贴片晶振，HCSL输出差分晶体振荡器，低抖动SAW振荡器（SPSO），石英晶振，电源电压3.3V，能够轻易识别网络信号以及精确的处理双极信号。具有超小型，轻薄型，低抖动，低功耗，低损耗，低相位噪声，低电源电压，满足产品低消耗电流的特点。EG-2102CA有源晶振应用于：通讯设备晶振，工业控制，消费电子，智能安防，无线网络，蓝牙模块，物联网，路由器/交换机、仪器仪表，机顶盒，光端机，安防设备及各种频率控制设备上。

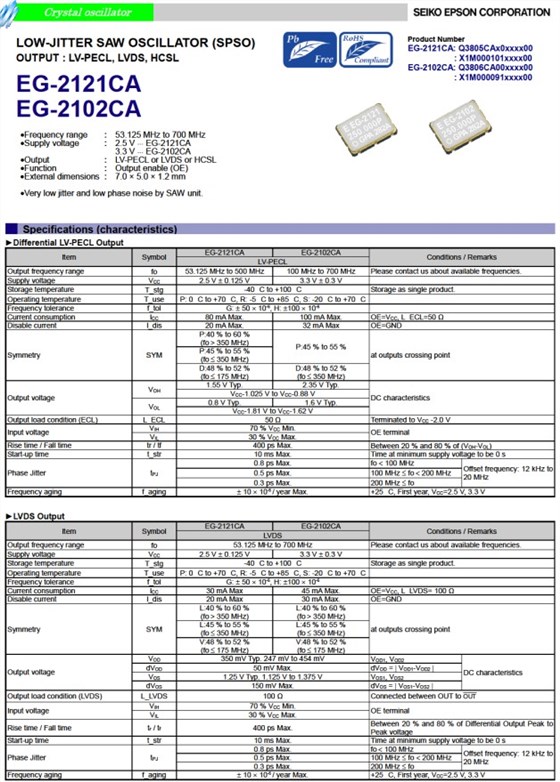

EG-2102CA差分晶振,X1M0000910008,EPSON通讯设备6G晶振，参数表

型号		EG-2102CA参数说明
Item	Symbol	HCSL	Conditions/Remarks
Output frequency range	f0	156.250000 MHz	Please contact us for inquiries regarding available frequencies.
Supply voltage	VCC	2.5V ± 0.125V
Storage temperature	T_stg	-40°C to +125°C	Store as bare product.
Operating temperature	T_use	P : 0°C to +70°C ,
		R : -5°C to +85°C ,
		S : -20°C to +70°C
Frequency tolerance	f_tol	G : ± 50 × 10-6
		H : ±100 × 10-6
Current consumption	ICC	80mA Max.	OE = VCC, L_HCSL = 50Ω
Disable current	I_dis	20mA Max.	OE = GND
Symmetry	SYM	45% to 55%	at outputs crossing point
Output voltage	VOH	0.75V Typ.	DC characteristics
	VOL	-0.3V Typ.
Output load condition	L_HCSL	50Ω	Terminated to GND
(HCSL)
Input voltage	VIH	70% VCCMin.	OE terminal
	VIL	30% VCCMax.
Rise time / Fall time	tr / tf	500ps Max.	Between 0.175V and 0.525V of output
Start-up time	t_str	10ms Max.	Time at minimum supply voltage to be 0s
Phase Jitter	tPJ	0.8ps Max.	f0< 100MHz	Offset frequency:
		0.5ps Max.	100MHz≦f0< 200MHz	12kHz to 20MHz
		0.3ps Max.	200MHz≦f0
Frequency aging	f_aging	± 10 × 10-6/ year Max.	+25°C , First year , VCC= 2.5V

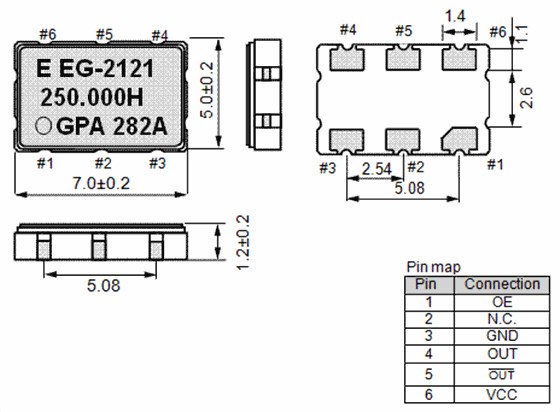

EG-2102CA差分晶振,X1M0000910008,EPSON通讯设备6G晶振，尺寸图

EG-2102CA差分晶振,X1M0000910008,EPSON通讯设备6G晶振

差分晶振有不同的输出信号，LV-PECL，LVDS，HCSL，是差分晶振通用的输出信号.一般为六脚晶振，能够很容易地识别小信号，能够从容精确地处理'双极'信号，对外部电磁干扰（EMI）是高度免疫的.实现高频高精度等要求，更加保障了各种系统参考时钟的可靠性，具有高性能，低功耗，低噪声，低抖动，低损耗等特点.被广泛用于通讯设备，机顶盒，光端机，安防设备及各种频率控制设备上.

石英晶体振荡器	型号	频率	尺寸	输出方式	电源电压	工作温度
X1M0000910001	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910002	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910003	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910004	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C
X1M0000910005	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-20 to 70 °C
X1M0000910006	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910007	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C
X1M0000910008	EG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910009	EG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910010	EG-2102CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C
X1M0001010002	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	2.375 to 2.625 V	0 to 70 °C
X1M0004310004	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	差分晶振	2.970 to 3.630 V	-5 to 85 °C
X1M0004310006	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310007	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	0 to 70 °C
X1M0004310008	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310009	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004310010	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004310011	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004610001	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.375 to 2.625 V	0 to 70 °C
X1M0004610002	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	0 to 70 °C
X1M0004610003	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004610006	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
