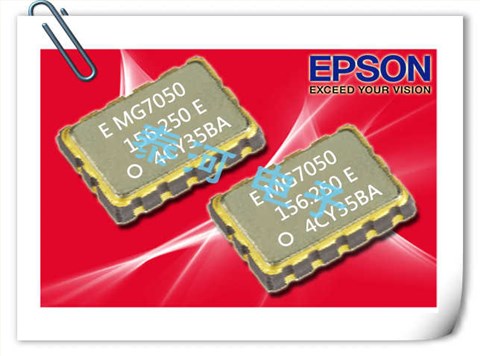

X1M0004110023,低耗能差分晶振MG7050EAN,爱普生6G智能安防晶振，日本进口晶振，EPSON爱普生晶振型号：MG7050EAN，编码为：X1M0004110023，频率：156.253906 MHz，小体积晶振尺寸7.0x5.0mm封装，14垫脚贴片晶振，多输出锯波振荡器（MOSO），LV-PECL晶振，石英晶振，有源晶振，石英晶体振荡器。本产品是利用锯波谐振器的基本振荡的LV-PECL输出的高频振荡器。这实现了频率为100~700MHz的低抖动和低噪声，具有超小型，轻薄型，低抖动，低功耗，低电源电压，低耗能，低损耗，低相位噪声等特点。MG7050EAN进口晶振应用程序：GbE、光纤通道、SAS、PCI express 服务器、存储、路由器/交换机，网络、OTN、无线网络，蓝牙模块、物联网应用等。

X1M0004110023,低耗能差分晶振MG7050EAN,爱普生6G智能安防晶振，参数表

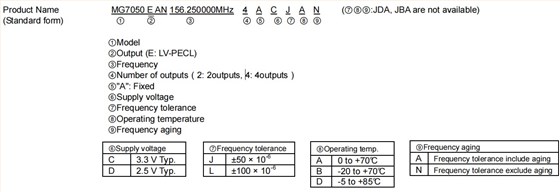

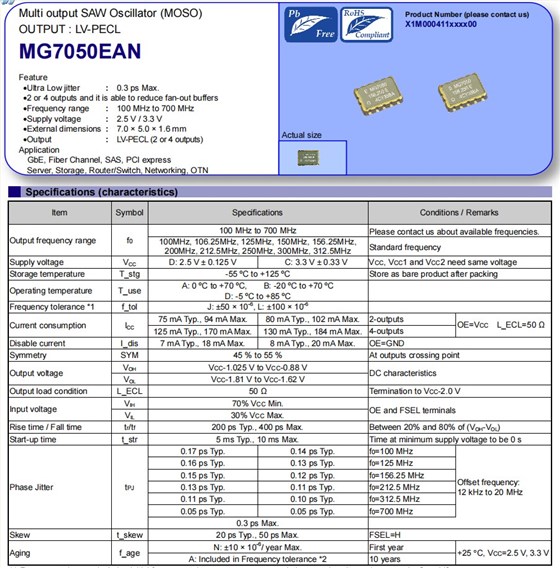

Item	Symbol	MG7050EAN规格说明		Conditions / Remarks
		156.253906 MHz		Please contact us about available frequencies.
Output frequency range	f0	100MHz, 106.25MHz, 125MHz, 150MHz, 156.25MHz,		Standard frequency
		200MHz, 212.5MHz, 250MHz, 300MHz, 312.5MHz
Supply voltage	VCC	D: 2.5 V ± 0.125 V	C: 3.3 V ± 0.33 V	VCC, VCC1 and VCC2 need same voltage
Storage temperature	T_stg	-55 ºC to +125 ºC		Store as bare product after packing
Operating temperature	T_use	A: 0 ºC to +70 ºC,B: -20 ºC to +70 ºC
		D: -5 ºC to +85 ºC
Frequency tolerance *1	f_tol	J: ±50 × 10-6, L: ±100 × 10-6
Current consumption	ICC	75 mA Typ., 94 mA Max.	80 mA Typ., 102 mA Max.	2-outputs	OE=VCCL_ECL=50Ω
		125 mA Typ., 170 mA Max.	130 mA Typ., 184 mA Max.	4-outputs
Disable current	I_dis	7 mA Typ., 18 mA Max.	8 mA Typ., 20 mA Max.	OE=GND
Symmetry	SYM	45 % to 55 %		At outputs crossing point
Output voltage	VOH	VCC-1.025 V to VCC-0.88 V		DC characteristics
	VOL	VCC-1.81 V to VCC-1.62 V
Output load condition	L_ECL	50Ω		Termination to VCC-2.0 V
Input voltage	VIH	70% VCC Min.		OE and FSEL terminals
	VIL	30% VCC Max.
Rise time / Fall time	tr/tf	200 ps Typ., 400 ps Max.		Between 20% and 80% of (VOH-VOL)
Start-up time	t_str	5 ms Typ., 10 ms Max.		Time at minimum supply voltage to be 0 s
		0.17 ps Typ.	0.14 ps Typ.	f0=100 MHz
		0.16 ps Typ.	0.13 ps Typ.	f0=125 MHz
		0.15 ps Typ.	0.12 ps Typ.	f0=156.25 MHz	Offset frequency: 12 kHz to 20 MHz
Phase Jitter	tPJ	0.13 ps Typ.	0.11 ps Typ.	f0=212.5 MHz
		0.11 ps Typ.	0.10 ps Typ.	f0=312.5 MHz
		0.05 ps Typ.	0.05 ps Typ.	f0=700 MHz
		0.3 ps Max.
Skew	t_skew	20 ps Typ., 50 ps Max.		FSEL=H
Aging	f_age	N: ±10 × 10-6/ year Max.		First year	+25°C, VCC=2.5 V, 3.3 V
		A: Included in Frequency tolerance *2		10 years

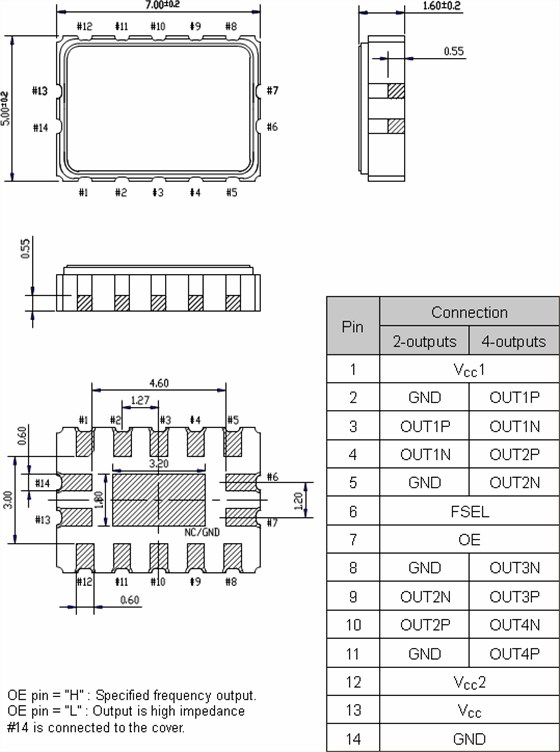

X1M0004110023,低耗能差分晶振MG7050EAN,爱普生6G智能安防晶振，尺寸图
