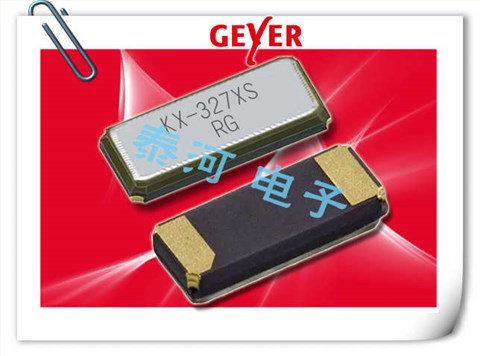

12.87128|32.768KHz|6pF|Geyer晶振|4918mm

产品简介

12.87128|32.768KHz|6pF|Geyer晶振|4918mm,Geyer晶振,KX-327XST石英晶振,音叉32.768K晶体,12.87128晶振,二脚贴片晶振,晶体谐振器,4918mm晶振,无源晶振,频率32.768KHz,负载6pF,工作温度-40~85°C,频率容差20ppm,高可靠性晶振,抗冲击晶振,抗振动晶振,GPS导航系统晶振,可穿戴设备晶振,物联网晶振,扫描仪晶振.

产品详情

TH-1 890 Ja-1

12.87128|32.768KHz|6pF|Geyer晶振|4918mm,Geyer晶振,KX-327XST石英晶振,音叉32.768K晶体,12.87128晶振,二脚贴片晶振,晶体谐振器,4918mm晶振,无源晶振,频率32.768KHz,负载6pF,工作温度-40~85°C,频率容差20ppm,高可靠性晶振,抗冲击晶振,抗振动晶振,GPS导航系统晶振,可穿戴设备晶振,物联网晶振,扫描仪晶振.

TH-2 890 TH--TC2

12.87128|32.768KHz|6pF|Geyer晶振|4918mm规格表

part no.	12.87128
model	KX-327XST
frequency	32.768 kHz
operating temperature	-40°~+85℃
frequency tolerance(df/F) at +25°C ±3°C	土20ppm
temperature tolerance (parabolic coefficient)	-0.042 ppm / °C2 max.
turnover temperature	+25°C±5℃
storage temperature range	-55°C~+125℃
load capacitance CL	6 pF
shunt capacitance C0 typ.	2 pF
series resistance R1 (ESR)	65k Ohm max.
aging at +25°℃ (first year) max.	±3 ppm
drive levelmax.	1.0 mW
contents of reel	3000 pcs.
