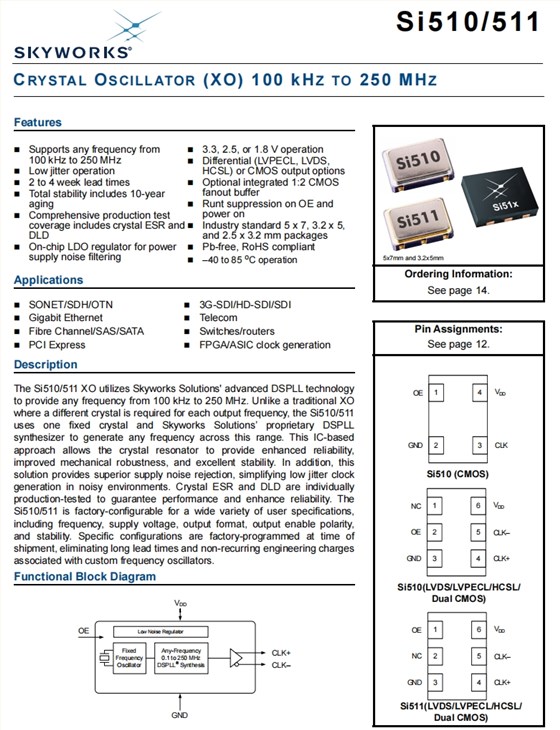

Skyworks晶振,510BBA156M250BAGR,LVDS差分晶振,6G以太网晶振特点
•支持以下任何频率 100 kHz至250 MHz
•低抖动操作
•2到4周的交货时间
•完全稳定包括10年老化
•全面的生产测试覆盖范围包括晶体ESR和 DLD
•用于电源噪声滤波的片上LDO稳压器
•3.3、2.5或1.8 V工作电压
•差异(LVPECL，LVDS， HCSL)或CMOS输出选项
•可选集成1:2 CMOS 扇出缓冲器
•在OE和电源上进行低档抑制
•行业标准5 x 7、3.2 x 5、 和2.5 x 3.2mm封装
•无铅，符合RoHS标准
•工作温度–40至85°C
Skyworks晶振,510BBA156M250BAGR,LVDS差分晶振,6G以太网晶振规格表
项目
符号
规格说明
条件
额定频率
f_nom
156.25MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
3.3V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率稳定性
f_tol
±25 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流
IDD
23mA Max
LVDS
对称性（占空比）
SYM
48%~52%
在输出交叉点
输出电压
VOC
1.33V Max
LVDS
VO
0.45Vpp Max
输入电压
VIH
80%VDD Min
VIL
20%VDD Max
上升下降时间
tr/tf
800ps Max
LVDS
起始时间
t str
10ms Max
相位抖动
tpj
0.55ps Max
LVDS

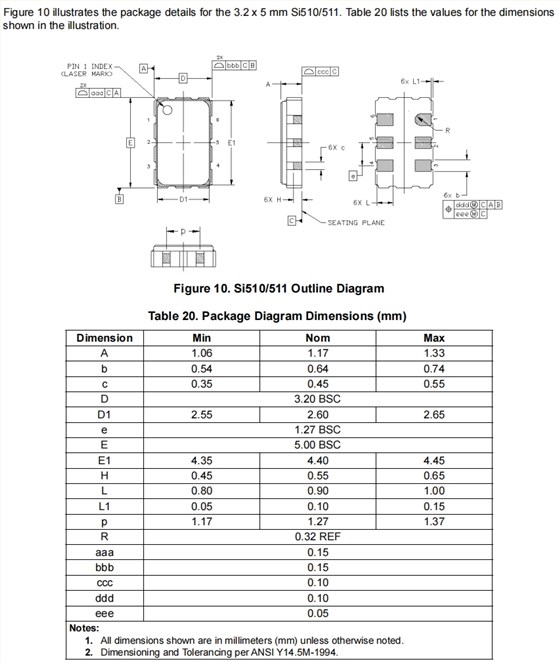

Skyworks晶振,510BBA156M250BAGR,LVDS差分晶振,6G以太网晶振尺寸图

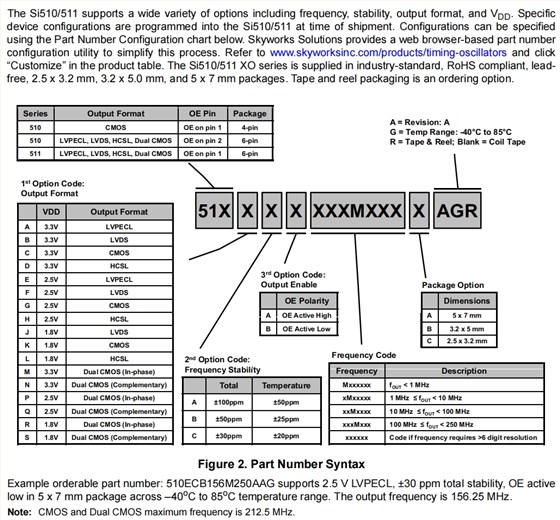

| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 |
| 510ABA148M500BAGR | Skyworks Solutions Inc. | Si510 | 148.5 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA156M250BAGR | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA125M000AAGR | Skyworks Solutions Inc. | Si510 | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA156M250AAGR | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA125M000BAG | Skyworks Solutions Inc. | Si510 | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA100M000BAG | Skyworks Solutions Inc. | Si510 | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA125M000BAG | Skyworks Solutions Inc. | Si510 | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510BBA200M000BAG | Skyworks Solutions Inc. | Si510 | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA156M250AAG | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA156M250AAG | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510DBA100M000BAG | Skyworks Solutions Inc. | Si510 | 100 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA200M000AAG | Skyworks Solutions Inc. | Si510 | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA212M500AAG | Skyworks Solutions Inc. | Si510 | 212.5 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA200M000AAG | Skyworks Solutions Inc. | Si510 | 200 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510BAA133M333BAG | Skyworks Solutions Inc. | Si510 | 133.333 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510DCA100M000AAG | Skyworks Solutions Inc. | Si510 | 100 MHz | HCSL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510FBA200M000AAGR | Skyworks Solutions Inc. | Si510 | 200 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510BBA106M250BAG | Skyworks Solutions Inc. | Si510 | 106.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA74M2500BAG | Skyworks Solutions Inc. | Si510 | 74.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510BBA74M2500BAG | Skyworks Solutions Inc. | Si510 | 74.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA156M250AAG | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA155M520AAG | Skyworks Solutions Inc. | Si510 | 155.52 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA74M2500AAG | Skyworks Solutions Inc. | Si510 | 74.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA200M000BAG | Skyworks Solutions Inc. | Si510 | 200 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA150M000BAG | Skyworks Solutions Inc. | Si510 | 150 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA156M250BAG | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510EBA125M000AAG | Skyworks Solutions Inc. | Si510 | 125 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA106M250BAG | Skyworks Solutions Inc. | Si510 | 106.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA000110AAG | Skyworks Solutions Inc. | Si510 | 148.35165 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA125M000AAG | Skyworks Solutions Inc. | Si510 | 125 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BCA148M500BAG | Skyworks Solutions Inc. | Si510 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510ACA25M0000BAG | Skyworks Solutions Inc. | Si510 | 25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510BBA156M000BAG | Skyworks Solutions Inc. | Si510 | 156 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ACA47M2500AAG | Skyworks Solutions Inc. | Si510 | 47.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510JCA96M0000BAGR | Skyworks Solutions Inc. | Si510 | 96 MHz | LVDS | 1.8V | ±20ppm | -40°C ~ 85°C |
| 510BBA106M250BAGR | Skyworks Solutions Inc. | Si510 | 106.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA100M000AAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA200M000BAGR | Skyworks Solutions Inc. | Si510 | 200 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ACA000383BAGR | Skyworks Solutions Inc. | Si510 | 383 kHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510BAA176M000BAG | Skyworks Solutions Inc. | Si510 | 176 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510FCA160M000BAG | Skyworks Solutions Inc. | Si510 | 160 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 510FBA125M000AAG | Skyworks Solutions Inc. | Si510 | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA100M000BAG | Skyworks Solutions Inc. | Si510 | 100 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA000110BAG | Skyworks Solutions Inc. | Si510 | 148.35165 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510BBA155M520AAG | Skyworks Solutions Inc. | Si510 | 155.52 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA100M000AAG | Skyworks Solutions Inc. | Si510 | 100 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510JCA135M000BAG | Skyworks Solutions Inc. | Si510 | 135 MHz | LVDS | 1.8V | ±20ppm | -40°C ~ 85°C |
| 510FBA000149AAG | Skyworks Solutions Inc. | Si510 | 74.175824 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510FBA212M500BAG | Skyworks Solutions Inc. | Si510 | 212.5 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510JCA74M2500BAG | Skyworks Solutions Inc. | Si510 | 74.25 MHz | LVDS | 1.8V | ±20ppm | -40°C ~ 85°C |
| 510BBA100M000AAG | Skyworks Solutions Inc. | Si510 | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA148M500BAG | Skyworks Solutions Inc. | Si510 | 148.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA100M000BAG | Skyworks Solutions Inc. | Si510 | 100 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510FBA156M250BAG | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510BBA125M000AAG | Skyworks Solutions Inc. | Si510 | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510JCA100M000BAG | Skyworks Solutions Inc. | Si510 | 100 MHz | LVDS | 1.8V | ±20ppm | -40°C ~ 85°C |
| 510BBA148M500AAG | Skyworks Solutions Inc. | Si510 | 148.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA200M000BAG | Skyworks Solutions Inc. | Si510 | 200 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510BCA125M000BAG | Skyworks Solutions Inc. | Si510 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510BBA000110BAG | Skyworks Solutions Inc. | Si510 | 148.35165 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510JAA120M000BAGR | Skyworks Solutions Inc. | Si510 | 120 MHz | LVDS | 1.8V | ±50ppm | -40°C ~ 85°C |
| 510ABBM100000BAGR | Skyworks Solutions Inc. | Si510 | 100 kHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510HBA10M0000BAGR | Skyworks Solutions Inc. | Si510 | 10 MHz | HCSL | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510AAA124M512AAGR | Skyworks Solutions Inc. | Si510 | 124.512 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510ACA26M0000BAGR | Skyworks Solutions Inc. | Si510 | 26 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510BAA000244BAGR | Skyworks Solutions Inc. | Si510 | 244 kHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510BCA000383BAGR | Skyworks Solutions Inc. | Si510 | 383 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510ECA50M0000BAGR | Skyworks Solutions Inc. | Si510 | 50 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 510FCA32M0000BAGR | Skyworks Solutions Inc. | Si510 | 32 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 510ABA115M000AAGR | Skyworks Solutions Inc. | Si510 | 115 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA24M5760AAGR | Skyworks Solutions Inc. | Si510 | 24.576 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABB21M4000AAGR | Skyworks Solutions Inc. | Si510 | 21.4 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510DBA10M0000AAGR | Skyworks Solutions Inc. | Si510 | 10 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA000244BAGR | Skyworks Solutions Inc. | Si510 | 244 kHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ACA106M250AAGR | Skyworks Solutions Inc. | Si510 | 106.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510FCA40M0000AAGR | Skyworks Solutions Inc. | Si510 | 40 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 510ABA000292AAGR | Skyworks Solutions Inc. | Si510 | 292 kHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABB000292AAGR | Skyworks Solutions Inc. | Si510 | 292 kHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABB156M250AAGR | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA135M000AAGR | Skyworks Solutions Inc. | Si510 | 135 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBB000292AAGR | Skyworks Solutions Inc. | Si510 | 292 kHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBB161M133AAGR | Skyworks Solutions Inc. | Si510 | 161.133 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABBM100000BAG | Skyworks Solutions Inc. | Si510 | 100 kHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510HBA10M0000BAG | Skyworks Solutions Inc. | Si510 | 10 MHz | HCSL | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA156M250AAGR | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA156M250AAGR | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA155M520AAGR | Skyworks Solutions Inc. | Si510 | 155.52 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA155M520AAGR | Skyworks Solutions Inc. | Si510 | 155.52 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA155M520AAGR | Skyworks Solutions Inc. | Si510 | 155.52 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510FCA250M000BAGR | Skyworks Solutions Inc. | Si510 | 250 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 510JBA250M000AAGR | Skyworks Solutions Inc. | Si510 | 250 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 510ABA156M250BAGR | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA156M250BAGR | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA155M520BAGR | Skyworks Solutions Inc. | Si510 | 155.52 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA155M520BAGR | Skyworks Solutions Inc. | Si510 | 155.52 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA155M520BAGR | Skyworks Solutions Inc. | Si510 | 155.52 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA000110BAGR | Skyworks Solutions Inc. | Si510 | 148.35165 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA000110BAGR | Skyworks Solutions Inc. | Si510 | 148.35165 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA148M500BAGR | Skyworks Solutions Inc. | Si510 | 148.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA000110BAGR | Skyworks Solutions Inc. | Si510 | 148.35165 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510FBA148M500BAGR | Skyworks Solutions Inc. | Si510 | 148.5 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA100M000AAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA125M000AAGR | Skyworks Solutions Inc. | Si510 | 125 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA100M000AAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510FBA125M000AAGR | Skyworks Solutions Inc. | Si510 | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA106M250AAGR | Skyworks Solutions Inc. | Si510 | 106.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA106M250AAGR | Skyworks Solutions Inc. | Si510 | 106.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA106M250AAGR | Skyworks Solutions Inc. | Si510 | 106.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA000149AAGR | Skyworks Solutions Inc. | Si510 | 74.175824 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA74M2500AAGR | Skyworks Solutions Inc. | Si510 | 74.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA000149AAGR | Skyworks Solutions Inc. | Si510 | 74.175824 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA74M2500AAGR | Skyworks Solutions Inc. | Si510 | 74.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA000149AAGR | Skyworks Solutions Inc. | Si510 | 74.175824 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510FBA74M2500AAGR | Skyworks Solutions Inc. | Si510 | 74.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510BBB200M000BAGR | Skyworks Solutions Inc. | Si510 | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510JBA200M000BAGR | Skyworks Solutions Inc. | Si510 | 200 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 510JAA120M000BAG | Skyworks Solutions Inc. | Si510 | 120 MHz | LVDS | 1.8V | ±50ppm | -40°C ~ 85°C |
| 510BCA004638BAGR | Skyworks Solutions Inc. | Si510 | 638 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510BCA142M800AAGR | Skyworks Solutions Inc. | Si510 | 142.8 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510FCA148M500AAGR | Skyworks Solutions Inc. | Si510 | 148.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 510ABA100M000BAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA125M000BAGR | Skyworks Solutions Inc. | Si510 | 125 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA100M000BAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA125M000BAGR | Skyworks Solutions Inc. | Si510 | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA100M000BAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510FBA125M000BAGR | Skyworks Solutions Inc. | Si510 | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA106M250BAGR | Skyworks Solutions Inc. | Si510 | 106.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA000149BAGR | Skyworks Solutions Inc. | Si510 | 74.175824 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA74M2500BAGR | Skyworks Solutions Inc. | Si510 | 74.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA000149BAGR | Skyworks Solutions Inc. | Si510 | 74.175824 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA74M2500BAGR | Skyworks Solutions Inc. | Si510 | 74.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA000149BAGR | Skyworks Solutions Inc. | Si510 | 74.175824 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510FBA74M2500BAGR | Skyworks Solutions Inc. | Si510 | 74.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510AAA124M512AAG | Skyworks Solutions Inc. | Si510 | 124.512 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510BAA110M000BAGR | Skyworks Solutions Inc. | Si510 | 110 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510BAA100M000CAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510JAA25M0000CAGR | Skyworks Solutions Inc. | Si510 | 25 MHz | LVDS | 1.8V | ±50ppm | -40°C ~ 85°C |
| 510DAA100M000CAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | HCSL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510LAA100M000CAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | HCSL | 1.8V | ±50ppm | -40°C ~ 85°C |
| 510AAA004701CAGR | Skyworks Solutions Inc. | Si510 | 123.345339 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510AAAM460800CAGR | Skyworks Solutions Inc. | Si510 | 460.8 kHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510AAA004697CAGR | Skyworks Solutions Inc. | Si510 | 123.456789 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510AAAM468000CAGR | Skyworks Solutions Inc. | Si510 | 468 kHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510AAA25M0000CAGR | Skyworks Solutions Inc. | Si510 | 25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510DAA25M6000BAGR | Skyworks Solutions Inc. | Si510 | 25.6 MHz | HCSL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510JAA24M0000BAGR | Skyworks Solutions Inc. | Si510 | 24 MHz | LVDS | 1.8V | ±50ppm | -40°C ~ 85°C |
| 510ABA200M000AAGR | Skyworks Solutions Inc. | Si510 | 200 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA200M000AAGR | Skyworks Solutions Inc. | Si510 | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA212M500AAGR | Skyworks Solutions Inc. | Si510 | 212.5 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA200M000BAGR | Skyworks Solutions Inc. | Si510 | 200 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA200M000BAGR | Skyworks Solutions Inc. | Si510 | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA212M500BAGR | Skyworks Solutions Inc. | Si510 | 212.5 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA212M500BAGR | Skyworks Solutions Inc. | Si510 | 212.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA212M500BAGR | Skyworks Solutions Inc. | Si510 | 212.5 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510BBA000149BAG | Skyworks Solutions Inc. | Si510 | 74.175824 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA000149BAG | Skyworks Solutions Inc. | Si510 | 74.175824 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA000292AAG | Skyworks Solutions Inc. | Si510 | 292 kHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABB000292AAG | Skyworks Solutions Inc. | Si510 | 292 kHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABB156M250AAG | Skyworks Solutions Inc. | Si510 | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA135M000AAG | Skyworks Solutions Inc. | Si510 | 135 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBB000292AAG | Skyworks Solutions Inc. | Si510 | 292 kHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBB161M133AAG | Skyworks Solutions Inc. | Si510 | 161.133 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA115M000AAG | Skyworks Solutions Inc. | Si510 | 115 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA24M5760AAG | Skyworks Solutions Inc. | Si510 | 24.576 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABB21M4000AAG | Skyworks Solutions Inc. | Si510 | 21.4 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510DBA10M0000AAG | Skyworks Solutions Inc. | Si510 | 10 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABB92M4000BAGR | Skyworks Solutions Inc. | Si510 | 92.4 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBB92M4000BAGR | Skyworks Solutions Inc. | Si510 | 92.4 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510BBA80M0000BAGR | Skyworks Solutions Inc. | Si510 | 80 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA33M3300CAGR | Skyworks Solutions Inc. | Si510 | 33.33 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA50M0000CAGR | Skyworks Solutions Inc. | Si510 | 50 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA100M000CAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510JBA100M000CAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 510FBA25M0000CAGR | Skyworks Solutions Inc. | Si510 | 25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510BBA100M000CAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510EBA125M000CAGR | Skyworks Solutions Inc. | Si510 | 125 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510HBA100M000CAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | HCSL | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510FBA125M000CAGR | Skyworks Solutions Inc. | Si510 | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510JBA60M0000CAGR | Skyworks Solutions Inc. | Si510 | 60 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 510LBA25M0000BAGR | Skyworks Solutions Inc. | Si510 | 25 MHz | HCSL | 1.8V | ±25ppm | -40°C ~ 85°C |
| 510DBA100M000CAGR | Skyworks Solutions Inc. | Si510 | 100 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA125M000CAGR | Skyworks Solutions Inc. | Si510 | 125 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA110M000BAGR | Skyworks Solutions Inc. | Si510 | 110 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510FBA20M0000CAGR | Skyworks Solutions Inc. | Si510 | 20 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C |
| 510ABA50M0000BAGR | Skyworks Solutions Inc. | Si510 | 50 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510JBA50M0000CAGR | Skyworks Solutions Inc. | Si510 | 50 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 510JBA125M000CAGR | Skyworks Solutions Inc. | Si510 | 125 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 510JBA26M0000CAGR | Skyworks Solutions Inc. | Si510 | 26 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C |
| 510ACA106M250AAG | Skyworks Solutions Inc. | Si510 | 106.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510FCA40M0000AAG | Skyworks Solutions Inc. | Si510 | 40 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 510ABA125M000BAG | Skyworks Solutions Inc. | Si510 | 125 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA000149BAG | Skyworks Solutions Inc. | Si510 | 74.175824 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABA74M2500BAG | Skyworks Solutions Inc. | Si510 | 74.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ACA26M0000BAG | Skyworks Solutions Inc. | Si510 | 26 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510BAA000244BAG | Skyworks Solutions Inc. | Si510 | 244 kHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 510BCA000383BAG | Skyworks Solutions Inc. | Si510 | 383 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 510ECA50M0000BAG | Skyworks Solutions Inc. | Si510 | 50 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 510FCA32M0000BAG | Skyworks Solutions Inc. | Si510 | 32 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 510ABA25M0000BAGR | Skyworks Solutions Inc. | Si510 | 25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510ABB125M000BAGR | Skyworks Solutions Inc. | Si510 | 125 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA108M000BAGR | Skyworks Solutions Inc. | Si510 | 108 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA10M0000BAGR | Skyworks Solutions Inc. | Si510 | 10 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA25M0000BAGR | Skyworks Solutions Inc. | Si510 | 25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA27M0000BAGR | Skyworks Solutions Inc. | Si510 | 27 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
| 510BBA40M0000BAGR | Skyworks Solutions Inc. | Si510 | 40 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C |
Skyworks晶振,7050mm晶振,536BB125M000DG,6G光纤通道晶振
Skyworks晶振,LVDS晶振,550BJ25M0000DG,6G模块晶振
Skyworks差分晶振,591FF200M000DG,5032mm,6G以太网晶振
Skyworks晶振,5032mm,540BAA000274BBG,6G服务器晶振
O 125.0-JO75-G-2.5-1-T1-LF|JAUCH|OSCILLATOR
O 32.0-JT21CT-A-K-2.8-LF|JAUCH|Oscillator Crystal
