12.87152|KX-327NHH|32.768KHz|12.5pF|格耶晶振

产品简介

12.87152|KX-327NHH|32.768KHz|12.5pF|格耶晶振,格耶晶振,KX-327NHH晶体谐振器,12.87152晶振,无源晶振,石英晶振,3215mm晶振,二脚贴片晶振,SMD晶体,频率32.768KHz,负载12.5pF,工作温度-20~200°C,频率容差30ppm,耐高温晶振,抗冲击晶振,抗振动晶振,嵌入式控制器晶振,网络附属存储晶振,闭路电视晶振,监控摄像机晶振.

产品详情

TH-1 890 Ja-1

12.87152|KX-327NHH|32.768KHz|12.5pF|格耶晶振,格耶晶振,KX-327NHH晶体谐振器,12.87152晶振,无源晶振,石英晶振,3215mm晶振,二脚贴片晶振,SMD晶体,频率32.768KHz,负载12.5pF,工作温度-20~200°C,频率容差30ppm,耐高温晶振,抗冲击晶振,抗振动晶振,嵌入式控制器晶振,网络附属存储晶振,闭路电视晶振,监控摄像机晶振.

TH-2 890 TH--TC2

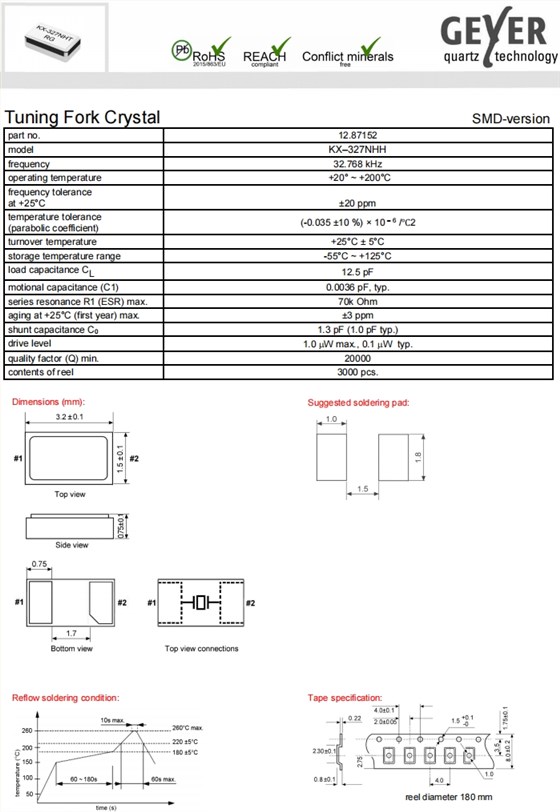

12.87152|KX-327NHH|32.768KHz|12.5pF|格耶晶振规格表

part no.	12.87152
model	KX-327NHH
frequency	32.768 kHz
operating temperature	-20°~+200℃
frequency tolerance(df/F) at +25°C ±3°C	土20ppm
temperature tolerance (parabolic coefficient)	( -0.035 ±10 % ) × 10-6 / ℃2
turnover temperature	+25°C±5℃
storage temperature range	-55°C~+125℃
load capacitance CL	12.5 pF
motional capacitance (C1) typ.	0.0036 fF
shunt capacitance C0 typ.	1.0 pF
series resistance R1 (ESR)	70k Ohm max.
aging at +25°℃ (first year) max.	±3 ppm
drive levelmax.	1.0 mW
contents of reel	3000 pcs.
