S733025T-26.000-X-LE1.0-R|26MHz|3.3V|AKER安基晶振

产品简介

S733025T-26.000-X-LE1.0-R|26MHz|3.3V|AKER安基晶振,台湾进口晶振,AKER安基晶振,S7 Low EMI有源晶振,S733025T-26.000-X-LE1.0-R晶振,SMD晶体,7050mm晶振,石英晶体振荡器,四脚贴片晶振,频率26MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,无铅环保晶振,低老化晶振,高稳定性晶振,家用电视机顶盒晶振,户外电子产品晶振,数字式摄像机存储晶振,固态硬盘晶振.

产品详情

TH-1 890

S733025T-26.000-X-LE1.0-R|26MHz|3.3V|AKER安基晶振,台湾进口晶振,AKER安基晶振,S7 Low EMI有源晶振,S733025T-26.000-X-LE1.0-R晶振,SMD晶体,7050mm晶振,石英晶体振荡器,四脚贴片晶振,频率26MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,无铅环保晶振,低老化晶振,高稳定性晶振,家用电视机顶盒晶振,户外电子产品晶振,数字式摄像机存储晶振,固态硬盘晶振.

S733025T-26.000-X-LE1.0-R|26MHz|3.3V|AKER安基晶振特点：

-时钟振荡器

-扩频-低电磁干扰

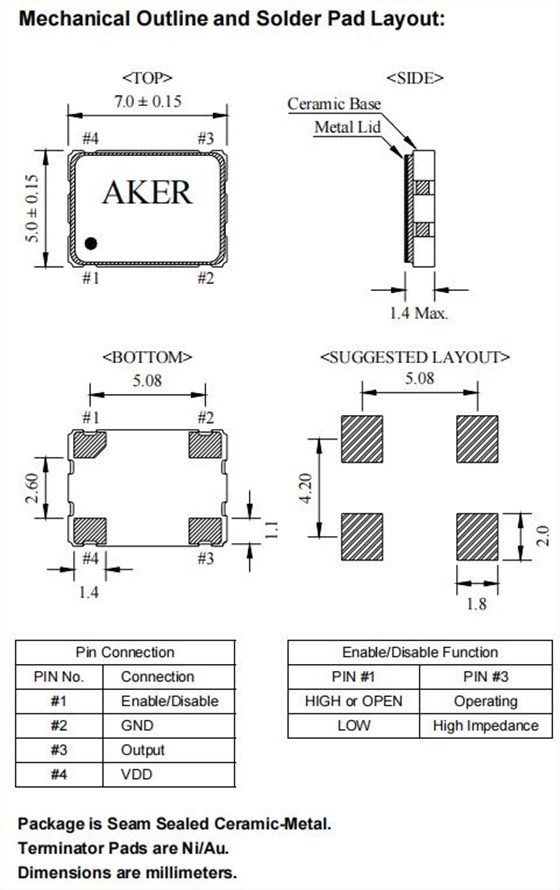

-5.0×7.0mm表面安装

-产品通用规格

TH-2 890

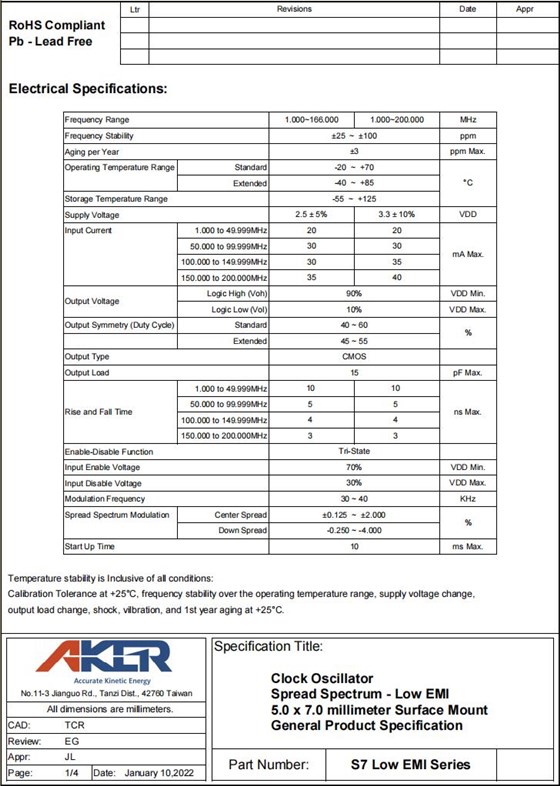

S733025T-26.000-X-LE1.0-R|26MHz|3.3V|AKER安基晶振规格表

Frequency Range		26		MHz
Frequency Stability		±25		ppm
Aging per Year		±3		ppm Max
Operating Temperature Range	Standard	-20~+70		*C
	Extended	-40~+85
Storage Temperature Range		-55~+125
Supply Voltage		2.5±5%	3.3±10%	VDD
Input Current	1.000to 49.999MHz	20	20	mA Max.
	50.000 to 99.999MHz	30	30
	100.000 to 149.999MHz	30	35
	150.000 to 200.000MHz	35	40
Output Voltage	Logic High （Voh)	90%		VDD Min.
	Logic Low (Vol）	10%		VDD Max.
Output Symmetry (Duty Cycle)	Standard	40 ~ 60		%
	Extended	45 ~ 55
Output Type		CMOS
Output Load		15		pF Max.
Rise and Fall Time	1.000 to 49.999MHz	10	10	ns Max.
	50.000 to 99.999MHz	5	5
	100.000 to 149.999MHz	4	4
	150.000 to 200.000MHz	3	3
Enable-Disable Function		Tri-State
Input Enable Voltage		70%		VDD Min.
Input Disable Voltage		30%		VDD Max.
Modulation Frequency		30 ~ 40		KHz
Spread Spectrum Modulation	Center Spread	±0.125 ~ ±2.000		%
	Down Spread	0.250 ~ -4.000
Start Up Time		10		ms Max.
